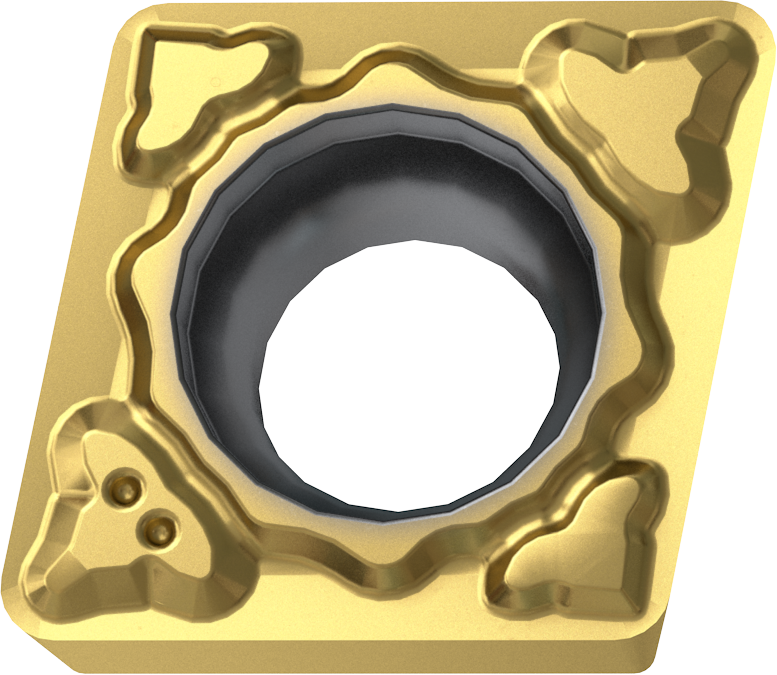

CCMT0602**-MF Inserts for Stainless Steel - Finishing
M
CCMT0602**-MF
| Κωδικός | Cutting Depth (mm) | Radius (mm) | Grade | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| CCMT060202-MF-YG211 | 0.08~2.0 | 0.2 | YG211 | €4,20 | 12 διαθέσιμα | ||
| CCMT060204-MF-YG211 | 0.10~2.0 | 0.4 | YG211 | €4,20 | 5-8 εργάσιμες | ||
| CCMT060208-MF-YG211 | 0.15~2.0 | 0.8 | YG211 | €4,20 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Processing Materials
- (M) - Stainless Steels (Stainless Steel - Inox)
Chipbreaker
- (MF) - Geometry specially designed for finishing stainless steels. It features a particularly small rake angle (rake angle) and is available with relatively small cutting radii (RE). Suitable for small cutting depths (Ap) and low feeds (Fn). Ensures excellent surface quality.
Grade
- YG211 – First choice for finishing stainless steels (M05–M25). PVD TiAlN coating for excellent wear resistance.
Feed
- Fn = 0.06~0.25 mm/rev
Cutting Speed
- (M12-13) - Vc=170~270 m/min
- (M14) - Vc=150~230 m/min
- (S31-37) - Vc=30~100 m/min
Turning inserts from YG1, a top cutting tool manufacturer from Korea. The choice of the appropriate insert depends on the chipbreaker, that is the geometry that helps in breaking and removing the chip, as well as the grade, which describes the microstructure and coating of the insert and directly affects hardness and fracture toughness. The cutting conditions (speed, feed, depth) must be carefully set to achieve maximum tool performance and life.
