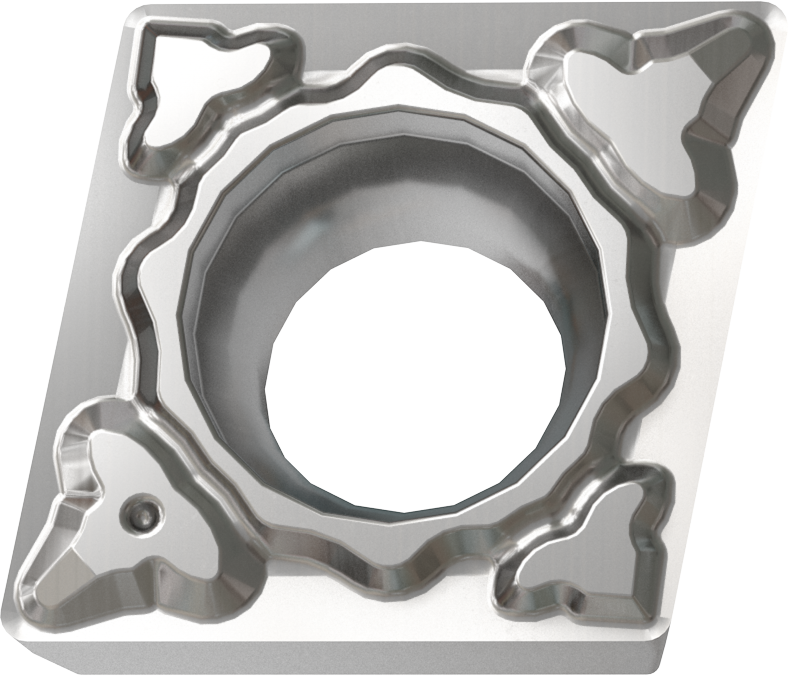

CCMT0602**-PF Cermet Inserts for Steels, Cast Iron and Stainless Steel - Finishing
P
M
K
CCMT0602**-PF
| Κωδικός | Cutting Depth (mm) | Radius (mm) | Grade | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| CCMT060204-PF-YT100 | 0.10~2.0 | 0.4 | YT100 | €3,80 | 13 διαθέσιμα | ||
Τιμές χωρίς ΦΠΑ 24%
Processing Materials
- (P) - Steels - Alloy Steels (Steel - Alloy Steel)
- (M) - Stainless Steels (Stainless Steel - Inox)
- (K) - Cast Irons - Gray Cast Iron (Cast Iron)
Chipbreaker
- (PS) - Geometry specially designed for finishing on steels, stainless steels, and cast irons. It features a small rake angle (rake angle) and is available with small cutting radii (RE). Suitable for small cutting depths (Ap) and low feeds (Fn). Used for cermet grades. Ensures excellent surface quality.
Grade
- YT100 – New generation general-purpose cermet (P10–P20 / M10–M20 / K10–K20). Increased wear resistance, with a special surface for top finishing.
Feed
- Fn = 0.06~0.25 mm/rev
Cutting Speed
- (P1-5) - Vc=150~480 m/min
- (P5-9) - Vc=160~480 m/min
- (P10-11) - Vc=70~180 m/min
- (M12-13) - Vc=120~180 m/min
- (M14) - Vc=130~260 m/min
- (K15-16) - Vc=130~450 m/min
- (K17-18) - Vc=100~400 m/min
Turning inserts from YG1, a top cutting tool manufacturer from Korea. The choice of the appropriate insert depends on the chipbreaker, that is, the geometry that helps in breaking and removing the chip, as well as the grade, which describes the microstructure and coating of the insert and directly affects hardness and brittleness. The cutting conditions (speed, feed, depth) must be carefully defined to achieve maximum tool performance and life.
