Machining Materials
- (N) - Non-ferrous materials - Aluminum, Copper alloys, Plastic (Aluminum, Copper alloys, non metallic materials)
Chipbreaker

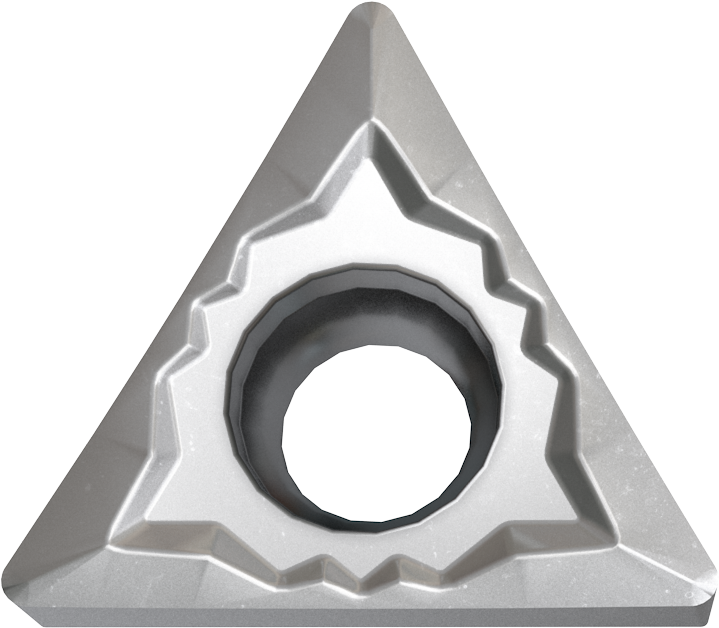

- (AL) - Geometry for general machining of aluminum and non-metallic materials. Features a particularly large rake angle (rake angle) for smoother chip flow and to avoid built-up edge due to material adhesion on the cutting edge. Suitable for moderate machining of soft materials (sticky materials).
Grade
- YG10 – Uncoated for general aluminum machining (N05–N25). Very smooth surface to minimize built-up edge formation.
Feed
- Fn = 0.02~0.30 mm/rev
Cutting Speed
- (N21-30) - Vc=250~800 m/min
Turning inserts from YG1, a leading cutting tool manufacturer from Korea. The choice of the appropriate insert depends on the chipbreaker, i.e., the geometry that helps in breaking and removing the chip, as well as the grade, which describes the microstructure and coating of the insert and directly affects hardness and fracture toughness. The cutting conditions (speed, feed, depth) must be carefully set to achieve maximum tool performance and life.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.
| SKU | Cutting Depth (mm) | Radius (mm) | Grade | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| TCGT16T308-AL | 0.10~5.5 | 0.8 | YG10 | 10 available |
+VAT
€7,20
|
|
| TCGT16T304-AL | 0.10~5.5 | 0.4 | YG10 | 23 available |
+VAT
€7,20
|
|
| TCGT16T302-AL | 0.05~5.0 | 0.2 | YG10 | 10 available |
+VAT
€7,20
|
