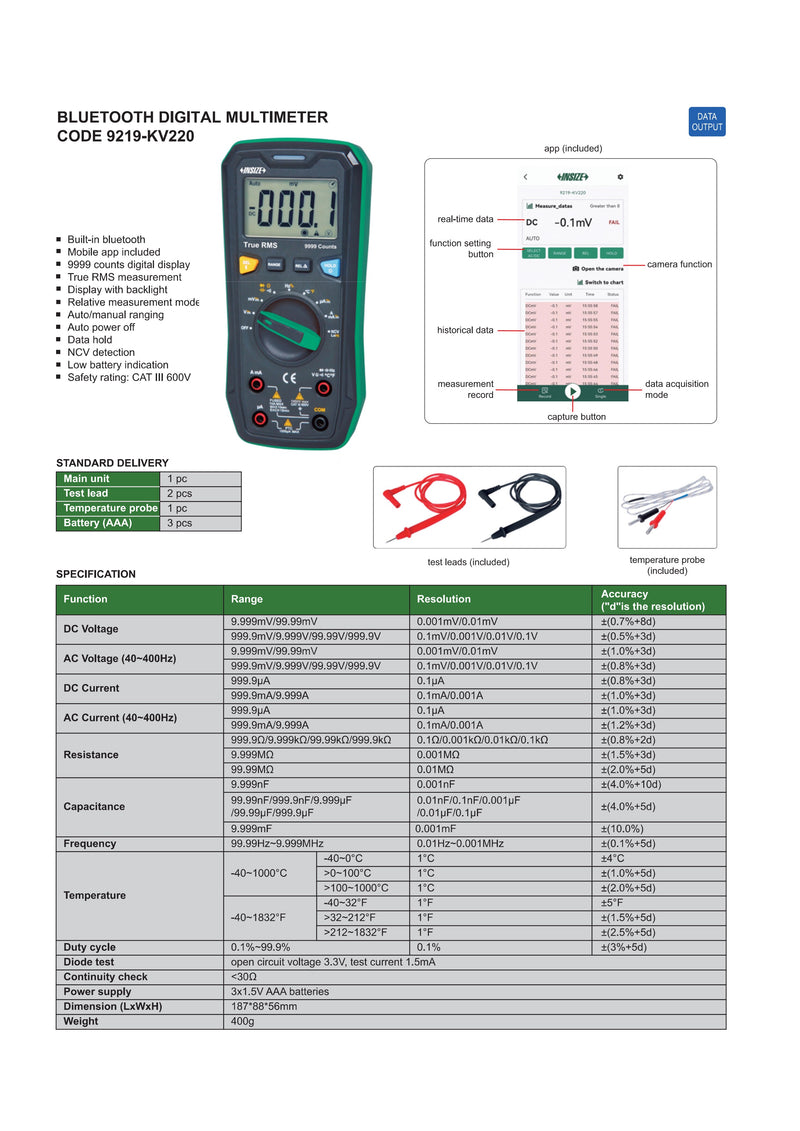

Technical Specifications

• Built-in Bluetooth

• Compatible mobile app

• Display with 9999 counts and backlight

• True RMS Measurement

• Relative measurement function

• Automatic/manual range selection

• Automatic power off

• Data hold

• NCV detection

• Low battery indication

• Safety category: CAT III 600V

• DC Voltage: 0–999.9V, Resolution up to 0.001mV, Accuracy up to ±(0.7%+8d)

• AC Voltage (40–400Hz): 0–999.9V, Resolution up to 0.001mV, Accuracy up to ±(1.0%+3d)

• DC Current: up to 999.9mA or 9.999A, Resolution up to 0.1μA, Accuracy up to ±(0.8%+3d)

• AC Current (40–400Hz): up to 999.9mA or 9.999A, Resolution up to 0.1μA, Accuracy up to ±(1.0%+3d)

• Resistance: up to 999.9MΩ, Resolution up to 0.001mΩ, Accuracy up to ±(0.8%+2d)

• Capacitance: up to 99.99mF, Resolution up to 0.01nF, Accuracy up to ±(4.0%+5d)

• Frequency: up to 9.999MHz, Resolution up to 0.001Hz, Accuracy up to ±(0.1%+5d)

• Temperature: -40°C to 1000°C or -40°F to 1832°F

• Duty cycle function: 0.1%–99.9%

• Diode test and continuity check

• Power supply: 3x AAA batteries

• Dimensions: 187×88×56mm

• Weight: 400g

Description

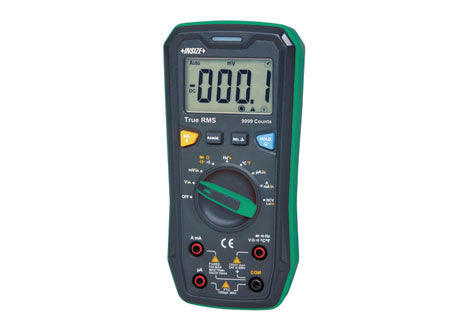

True RMS digital multimeter with Bluetooth connectivity for wireless measurement monitoring. Measures DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, duty cycle, diodes, and continuity. Features automatic and manual range selection, backlight, and NCV detection.
