Features:

• Four-digit LED display

• Output switch control
• Panel lock function to avoid incorrect operations
• USB port for power supply
• OVP/OCP protection
• 3 shortcut keys for presets

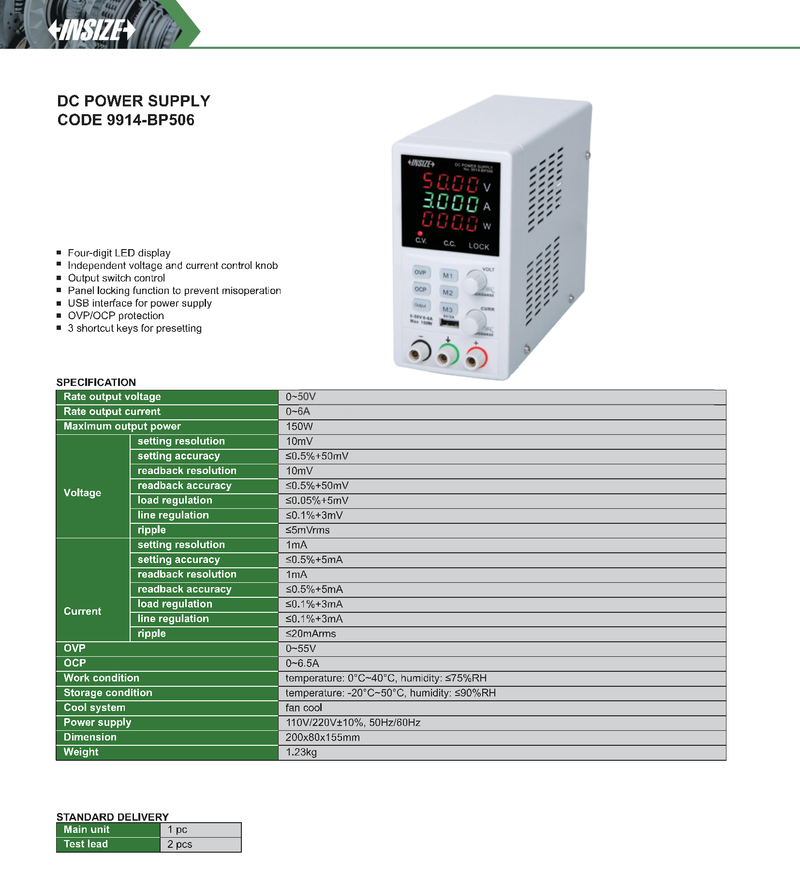

Specifications:

• Voltage


  • Reading: 10mV
  • Setting accuracy: ≤0.5%+50mV
  • Return reading: 10mV
  • Return accuracy: ≤0.5%+50mV
  • Load regulation: ≤0.05%+5mV
  • Line regulation: ≤0.1%+3mV
  • Ripple: 5mVrms

• Current


  • Reading: 1mA
  • Setting accuracy: ≤0.5%+5mA
  • Return reading: 1mA
  • Return accuracy: ≤0.5%+5mA
  • Load regulation: ≤0.1%+3mA
  • Line regulation: ≤0.1%+3mA
  • Ripple: 20mArms

• OVP: 0~55V

• OCP: 0~6.5A

• Operating conditions: Temperature: 0°C~40°C, Humidity: ≤75%RH

• Storage conditions: Temperature: -20°C~50°C, Humidity: ≤90%RH

• Cooling system: Fan cooling

• Power supply: 110V/ 220V±10%, 50Hz/60Hz

• Dimensions: 200x80x155mm

• Weight: 1.23kg

Includes:

• Main unit: 1 piece
• Test cables: 2 pieces
