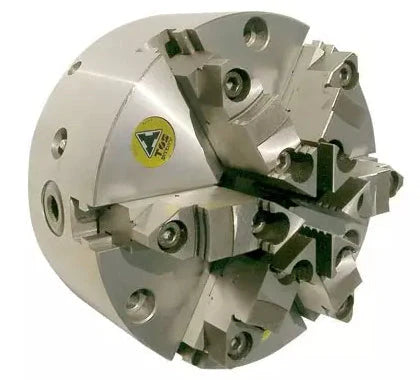

IUPG - Self-Centering Scroll Chuck with Micro-adjustment
| Κωδικός | Size | Jaws | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|
| IUPG6-125 | 125 | 95 | Ζητήστε Προσφορά | Με παραγγελία | ||
| IUPG6-160 | 160 | 125 | Ζητήστε Προσφορά | Με παραγγελία | ||
| IUPG6-315 | 315 | 260 | Ζητήστε Προσφορά | Με παραγγελία | ||
| IUPG6-250 | 250 | 200 | Ζητήστε Προσφορά | Με παραγγελία | ||
| IUPG6-200 | 200 | 160 | Ζητήστε Προσφορά | Με παραγγελία | ||
Τιμές χωρίς ΦΠΑ 24%
These chucks are designed to be universal, but are most suitable for grinding machines due to their precision. Adjustment to the required accuracy is achieved by means of 3 tangentially positioned hardened set screws.

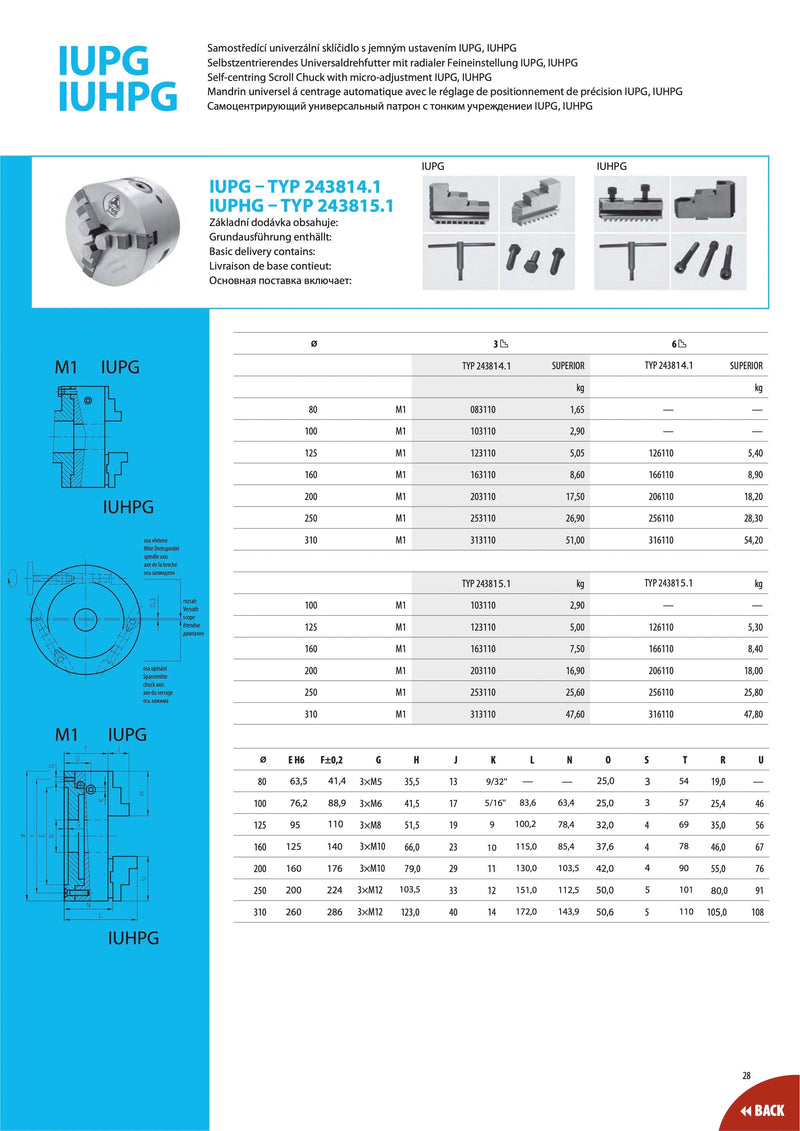

Chucks IUPG
- chuck body - ductile cast iron
- functional surfaces ground, ensure accuracy of clamping and extend chuck life
- from ø160 size hardened and ground steel tongues for guiding jaws
- screws allow the chuck to be positioned near zero runout (alignment accuracy up to 0.005mm)
- clamping the chuck on the machine spindle using an intermediate flange
- 1 set of hard outer jaws SCV, 1 set of hard inner jaws SCN
- 1 spanner, clamping screws
