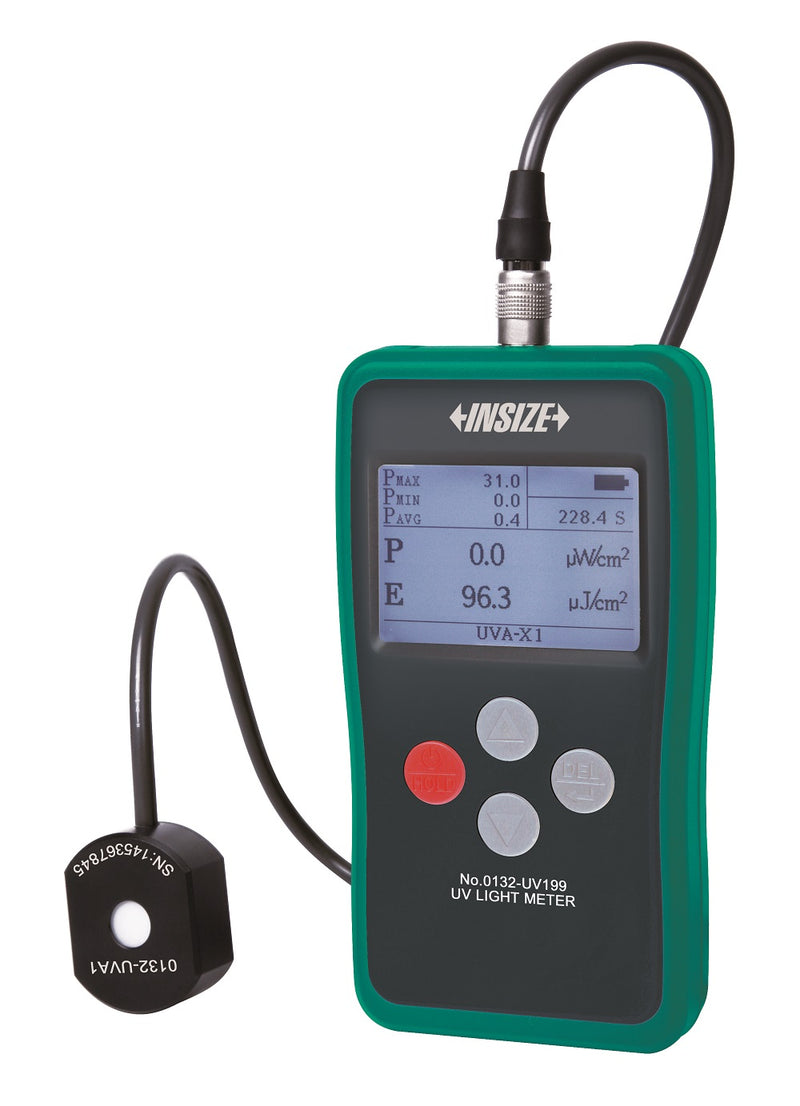

Main Unit – Specifications
-
Display: LCD 240×160
-
Power Supply: 4 alkaline AAA batteries
-
Output: USB
-
Dimensions: 148×76×26mm
-
Weight: 194g
Delivery Contents
-
Main unit: 1 pc.
-
Detector (0132-UVA1): 1 pc.
-
Software and USB cable: 1 pc.
-
Batteries: 4 pcs.
Detector Specifications
0132-UVA1 (included)
-
Application: Low power UVA measurement
-
Spectral response: 315-400nm, peak at 365nm
-
Power measurement range: 0–200000μW/cm²
-
Resolution: 0.1μW/cm²
-
Energy range: 0–9999999μJ/cm²
-
Accuracy: ±10%
-
Sampling rate: 6 times/sec.
-
Measurement units: μW/cm² (default), mW/cm², W/m²
-
Measurement aperture diameter: Ø10mm
-
Detector size: 39×32×15mm
0132-UVC0 (optional)
-
UV 254nm measurement (sterilization)
-
Response: 230–280nm, peak 254nm
0132-UVLED0 (optional)
-
UV LED measurement 260-285nm
-
Response: 280–315nm
-
Wide spectral range – not for use in intense light
0132-UVB0 (optional)
-
General UVB use (suitable for 297nm, 308nm, 313nm)
-
Response: 280–315nm, peak 310nm
0132-UVCPW1 (optional)
-
UV 254nm measurement – waterproof up to 1m
-
Detector size: Ø50×20mm
0132-UVA0 (optional)
-
High pressure UV measurement for curing
-
Response: 315–400nm, peak 365nm
-
Sampling rate: 2048 times/sec.
0132-UVALED0 (optional)
-
UV LED curing range measurement (340–420nm)
-
Resolution: 1mW/cm²
-
Speed: 2048 times/sec.
0132-UVALED1 (optional)
-
Spot UV LED curing measurement (340–420nm)
-
Resolution: 1mW/cm²
0132-UVALED3 (optional)
-
UVA+UVV LED measurement (340–420nm)
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | type | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|
| 0132-UV199 | Main Unit UV199 | 5-8 business days |
+VAT
€1.144,00
|
5-8 business days
|
|
| 0132-UVA0 | Probe UVA0 | On Order |
+VAT
€715,00
|
5-8 business days
|
|
| 0132-UVALED0 | Probe UVALED0 | On Order |
+VAT
€715,00
|
5-8 business days
|
|
| 0132-UVALED1 | Probe UVALED1 | On Order |
+VAT
€715,00
|
5-8 business days
|
|
| 0132-UVALED3 | Probe UVALED3 | On Order |
+VAT
€715,00
|
5-8 business days
|
|
| 0132-UVB0 | Probe UVB0 | On Order |
+VAT
€715,00
|
5-8 business days
|
|
| 0132-UVC0 | Probe UVC0 | On Order |
+VAT
€715,00
|
5-8 business days
|
|
| 0132-UVCLED0 | Probe UVCLED0 | On Order |
+VAT
€797,00
|
5-8 business days
|
|
| 0132-UVCWP1 | Probe UVCWP1 | On Order |
+VAT
€797,00
|
5-8 business days
|
