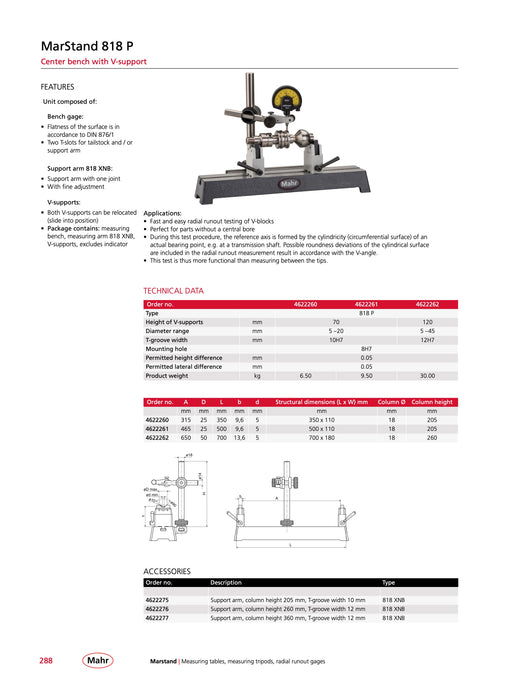

Technical Specifications
-
Type: 818 P
-
V-support height: 70 mm (4622260), 120 mm (4622262)
-
Diameter range: 5–20 mm (4622260, 4622261), 5–45 mm (4622262)
-
T groove width: 10H7 mm (4622260), 12H7 mm (4622262)
-
Support hole: 8H7
-
Permissible height difference: 0.05 mm
-
Permissible lateral deviation: 0.05 mm
-
Product weight: 6.5 kg (4622260), 9.5 kg (4622261), 30 kg (4622262)
-
Dimensions (L x W): 350 x 110 mm, 500 x 110 mm, 700 x 180 mm
-
Column diameter: 18 mm
-
Column height: 205 mm, 260 mm
Description
The MarStand 818 P is a measuring table with V-supports, designed for quick and accurate radial runout inspection of cylindrical parts. It is ideal for workpieces without a central hole, as the measurement is based on the cylindricity of the support surface and not only between the ends. It includes a measuring table, support arm, and V-supports. It does not include a dial indicator.
Mahr Factory
The German company Mahr Group, from 1861 to the present day, headquartered in Esslingen, Germany, is synonymous with precision and reliability in the field of metrology. It has established itself worldwide as a specialist in the development and manufacture of mechanical measuring instruments, from calipers, micrometers, portable surface roughness testers and up to fully automated stations for form, contour, and shaft measurement. Mahr’s deep expertise, especially in surface measurements (MarSurf) and cylindricity (MarForm), makes it a leading choice for industries that do not accept compromises in quality. By providing robust solutions both for the metrology laboratory and for the harsh production environment, Mahr ensures process control and compliance with the strictest specifications.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε., is the official representative of Mahr in Greece and we can support the entire range of its catalog, which includes more than 10,000 different product codes.
| SKU | Point - point | V-Support Height | For Diameters | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| MA-4622260 | 0-315 mm | 70 mm | 5-20 mm | 5-8 business days |
+VAT
€934,00
|
|
| MA-4622261 | 0-465 mm | 70 mm | 5-20 mm | 5-8 business days |
+VAT
€1.144,00
|
|
| MA-4622262 | 0-650 mm | 120 mm | 5-45 mm | 5-8 business days |
+VAT
€2.173,00
|
