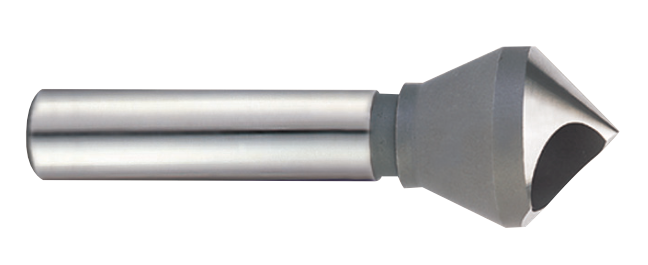

CS-HO-CO Single-cut milling cutter with 90° cobalt hole

Quote

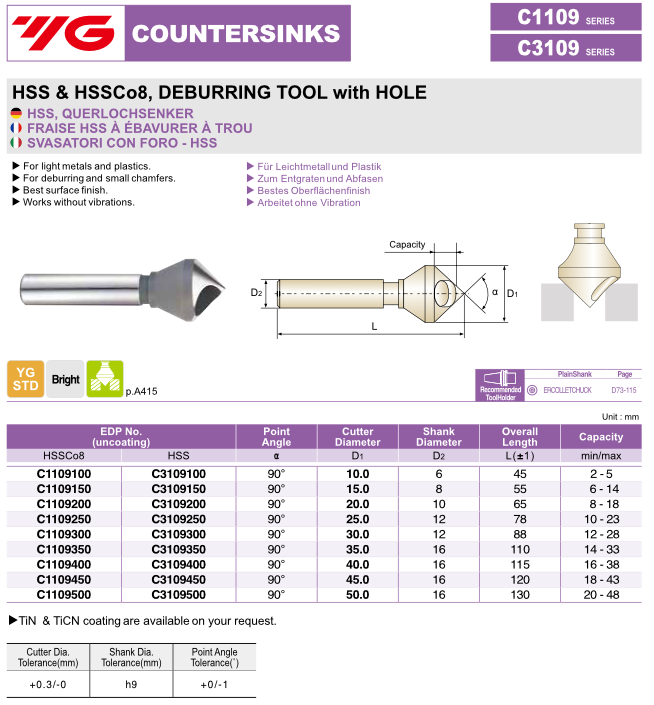

SKU D1(mm) D2(mm) L(mm) Availability
Price
+VAT
Cart
Quote
CS-HO-CO-10 10 6 45 4 available
+VAT
€10,80
CS-HO-CO-15 15 8 55 3 available
+VAT
€15,10
CS-HO-CO-20 20 10 65 4 available
+VAT
€23,90
CS-HO-CO-25 25 (for M12) 12 78 4 available
+VAT
€41,00
CS-HO-CO-30 30 12 88 1 available
+VAT
€62,00
CS-HO-CO-35 35 16 110 5-8 business days
+VAT
€98,00
CS-HO-CO-40 40 16 115 5-8 business days
+VAT
€131,00
CS-HO-CO-45 45 16 120 5-8 business days
+VAT
€170,00
CS-HO-CO-50 50 16 130 5-8 business days
+VAT
€223,00
Conical End Mills
Wiki

Conical End Mills

The countersinks (also known as small milling cutters or countersinks) are cutting tools used to form a conical recess at the mouth of an existing hole. Their main purpose is to allow the countersinking (milling) of a screw head, so that it sits "flush" with the surface of the material.

  • Cutting Angles:90°: The most common angle for standard screws (metric thread).60°: Used mainly for edge "breaking" (deburring) and for centering.82°: Standard angle for screws according to American standards (UNC/UNF).
  • Design Types:With hole (Zero Flute): Ideal for soft materials and thin sheet metal, as they do not "clog" and provide a very smooth finish.With 3 flutes (3-Flute): The most classic type for stable cutting without vibration in harder metals.
  • Applications: In addition to countersinking screws, they are essential for removing burrs (deburring) after drilling, ensuring safety when handling components.
