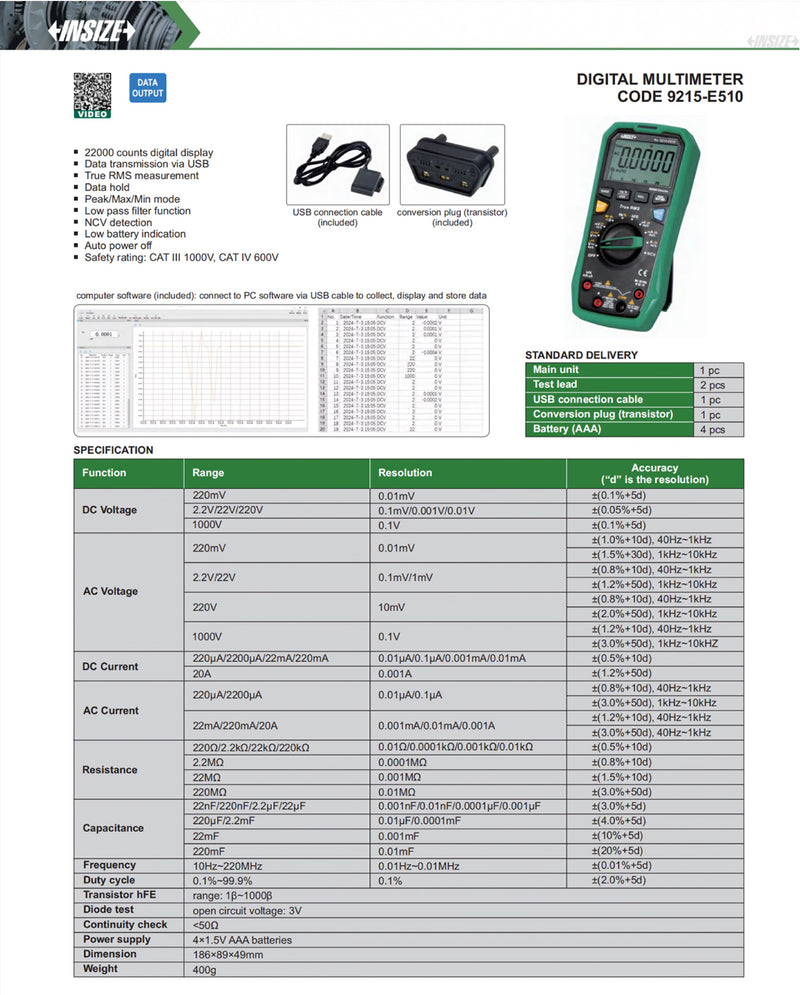

Technical Specifications
-
22000-count digital display
-
Data transmission via USB
-
True RMS Measurement
-
Data hold function
-
Peak/Max/Min function
-
Low pass filter function
-
Voltage detection
-
Low battery indication
-
Automatic power off
-
Safety category: CAT III 1000V, CAT IV 600V
-
DC voltage range: 220mV to 1000V, Reading from 0.01mV
-
AC voltage range: 220mV to 1000V, Reading from 0.01mV
-
DC current range: 220μA to 20A, Reading from 0.01μA
-
AC current range: 22mA to 20A, Reading from 0.001mA
-
Resistance measurement: 220Ω to 220MΩ
-
Capacitance measurement: 22nF to 2.2F
-
Frequency measurement: 10Hz to 220MHz
-
Duty cycle: 0.1%–99.9%
-
Transistor hFE measurement: 1g–1000g
-
Diode measurement (open circuit voltage: 3V)
-
Continuity check (<50Ω)
-
Power supply: 4×1.5V AAA batteries
-
Dimensions: 186×89×49mm
-
Weight: 400g
Description

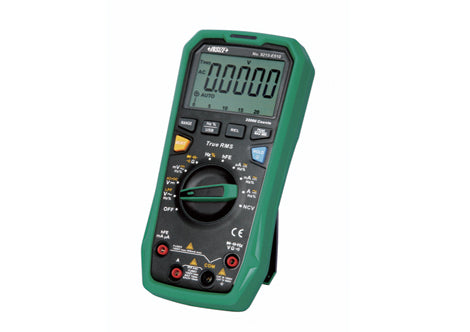

The digital multimeter 9215-E510 is used for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode check, continuity, and transistor hFE measurement. It features data transmission capability to a computer via USB and meets safety standards CAT III 1000V and CAT IV 600V.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|
| 9215-E510 | On Order |
+VAT
€303,00
|
5-8 business days
|
