Specification
| Mass concentration | |
| Measurable particle sizes | PM2.5 / PM10 |
| Measuring range PM 2.5 | 0 ... 1000 microg/m³ |
| Resolution | 1 micron |
| Accuracy PM 2.5 | 0 ... 100 microg/m³: plus-minus 10 microg/m³ |
| 101 ... 1000 microg/m³: plus-minus 10% of measured value | |
| Particle counter | |

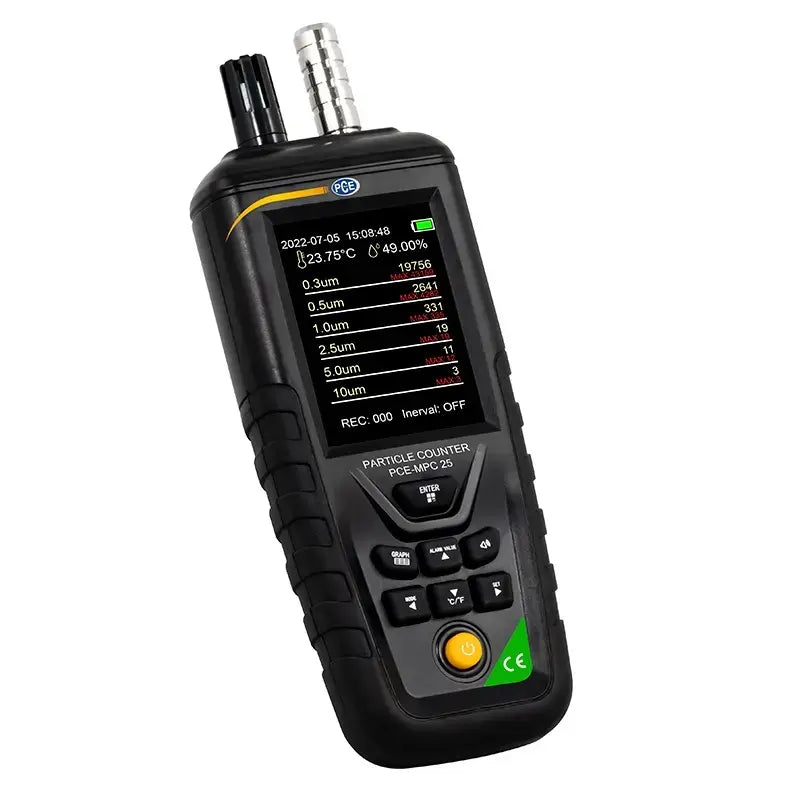

| Measurable particle sizes | 0.3 / 0.5 / 1.0 / 2.5 / 5.0 and 10 microm |
| Resolution | 1 micron |
| Accuracy | reference measurement |
| Number of maximum particles | 2,000,000 particles/L |
| Temperature | |
| Measuring range | -10 ... 60 degreesC, 14 ... 140 degreesF |
| Resolution | 0.01 degreesC, degreesF |
| Accuracy | plus-minus2 degreesC, plus-minus3.6 degreesF |
| Humidity (RH) | |
| Measuring range | 0 ... 100 % |
| Resolution | 0.01 % |
| Accuracy | plus-minus3 % |
| Further specifications | |
| Response time | 1 second |
| Warm up | 10 seconds |

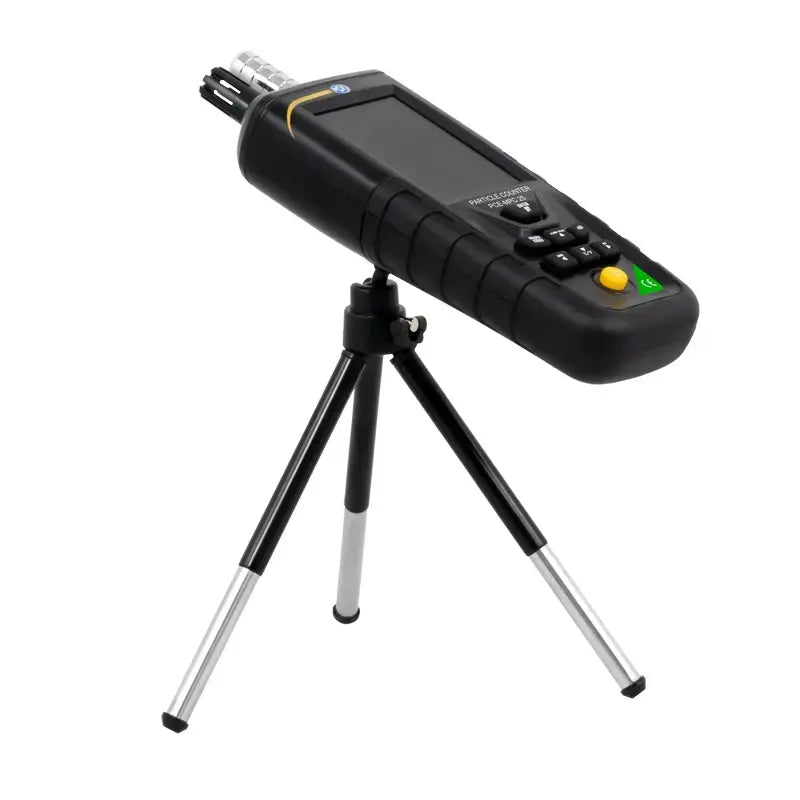

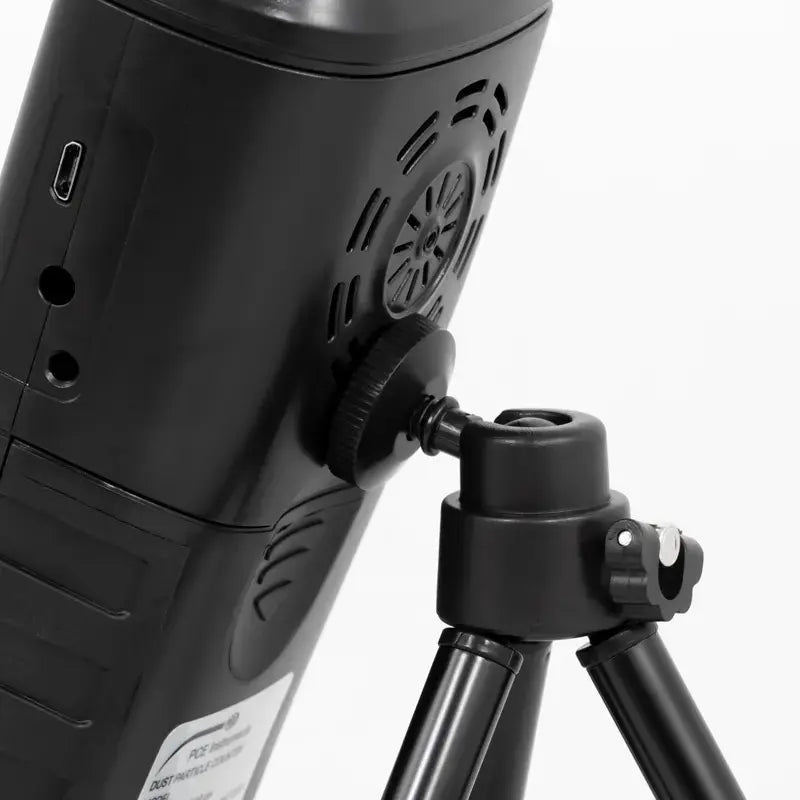

| Mounting connection | 1/4" tripod connection |

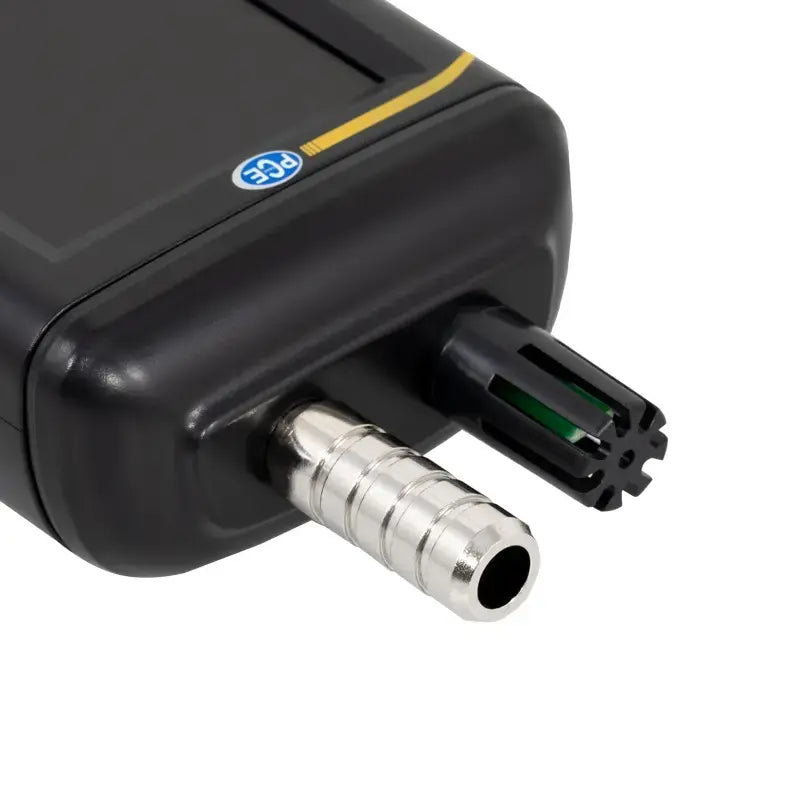

| Dimensions intake | outside: Ø13 mm / 0.51" |
| inside: Ø7 mm / 0.27" | |
| height: 35 mm / 1.37" | |
| Display | 3.2" LC color display |
| Power supply (mains adapter) |
primary: 100 ... 240 V AC, 50 / 60 Hz, 0.3 A |
| secondary: 5 V DC, 2 A | |
| Power supply (battery) | 3.7 V, 8.14 Wh, 18650 |
| Battery life | approx. 9 hours |
| Interface |

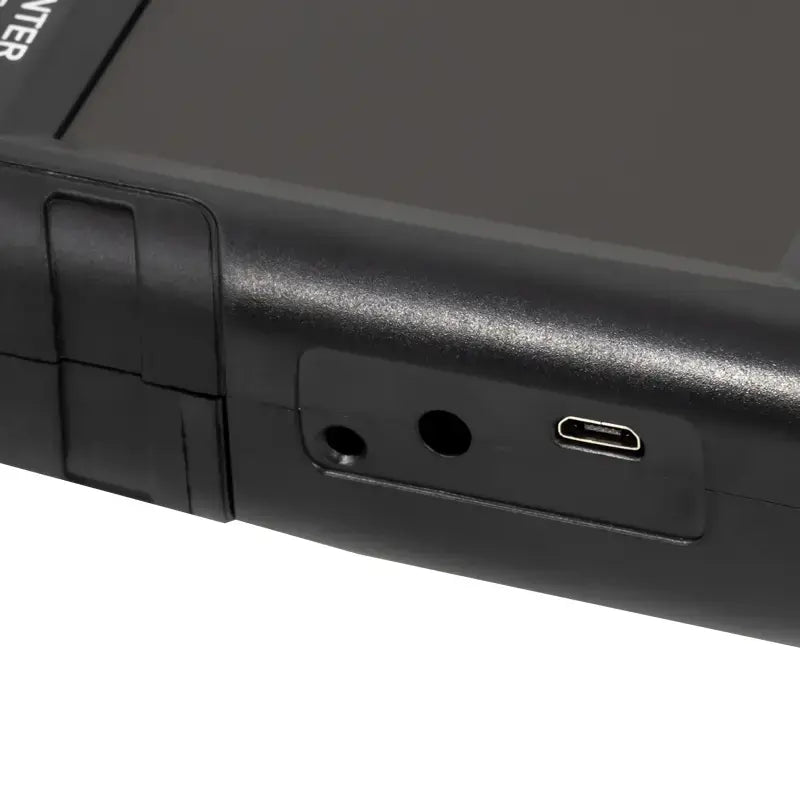

Micro USB for charging and for data transfer to a PC |
| Auto power off | turned off |
| 15, 30, 45 minutes | |
| 1, 2, 4, 8 hours | |
| Data memory | flash memory for approx. 12 measurement runs |
| a measurement run contains 999 measurement points | |
| Storage interval | 10, 30 seconds |
| 1, 5, 10, 30, 60 minutes | |
| Dimensions | 222 x 80 x 46 mm / 8.7 x 3.1 x 1.8" |
| Weight | 320 g / 11.2 oz |
Description
Micro USB interface / Measuring range 0 ... 1000 µg/m³ / Mass concentration /
Approx. 9 hours of battery life / 3.2" color display / Carrying case / 1/4" tripod connection
During a measurement it is possible to record the measured values with the environmental tester. A memory with a storage capacity of approx. 12 measurement runs, each with 999 measurement points, is available for the particle counter. The interval can be set at different times on the particle counter. After recording, the measurement data recorded by the particle counter can be transferred to a computer. The particle counter is connected to any computer via the micro USB interface to transmit the measurement data. Since the particle counter is recognized as a mass data storage device by the computer, the particle counter is independent of the operating system. The measurement data saved by the particle counter are saved in PDF.
In addition to data transfer, the 8 Wh battery can also be charged via the micro USB interface. The battery used in the environmental tester enables an operating time of approx. 9 hours. Thus, the particle counter can carry out measurements over an entire working day before it has to be recharged. Since the battery is not permanently installed in the particle counter, it can be easily replaced.

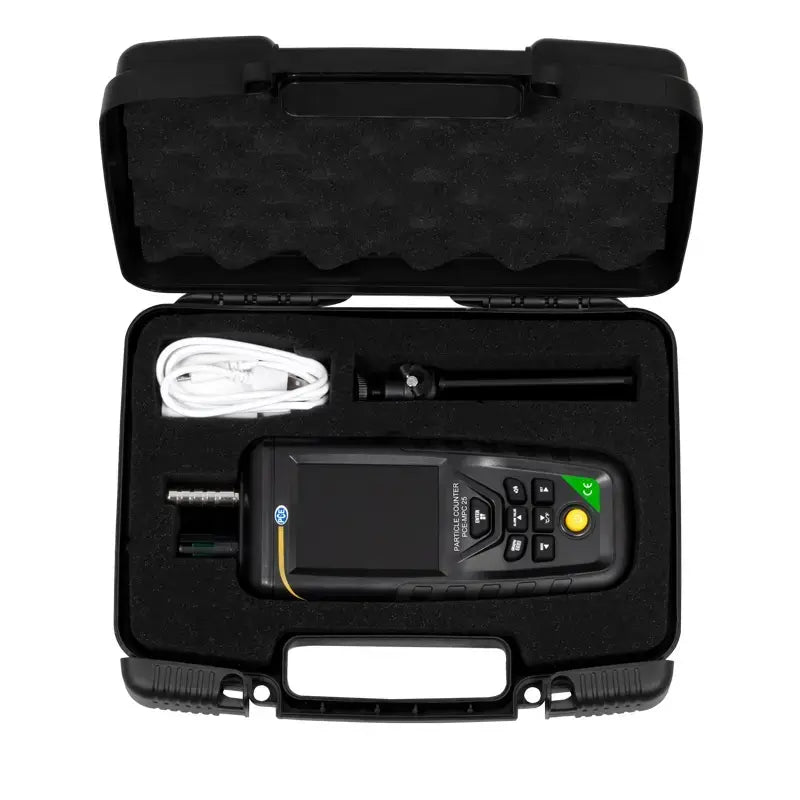

Delivery Scope
1 x Carrying case
1 x 18650 battery
1 x Mini tripod
1 x Micro USB cable
1 x USB power adapter
1 x Instruction manual
1 Year Warranty
