| Acceleration | |
| Unit: m/s² | Range: 0.5 ... 199.9 m/s² Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: g | Range: 0.05 ... 20.39 g Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: ft/s² | Range: 2 ... 656 ft/s² Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point | 50 m/s² (160 Hz) |
| Speed | |
| Unit: mm/s | Range: 0.5 ... 199.9 mm/s Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: cm/s | Range: 0.05 ... 19.99 cm/s Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: inch/s | Range: 0.02 ... 7.89 inch/s Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point | 50 mm/s (160 Hz) |
| Expansion | |
| Unit: mm | Range: 1.999 mm Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: inch | Range: 0.078 inch Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point |
0.141 mm (160 Hz) |
| Display | 82 x 61 mm / 3.22 in x 2.4" LCD with background light |
| No. of channels |

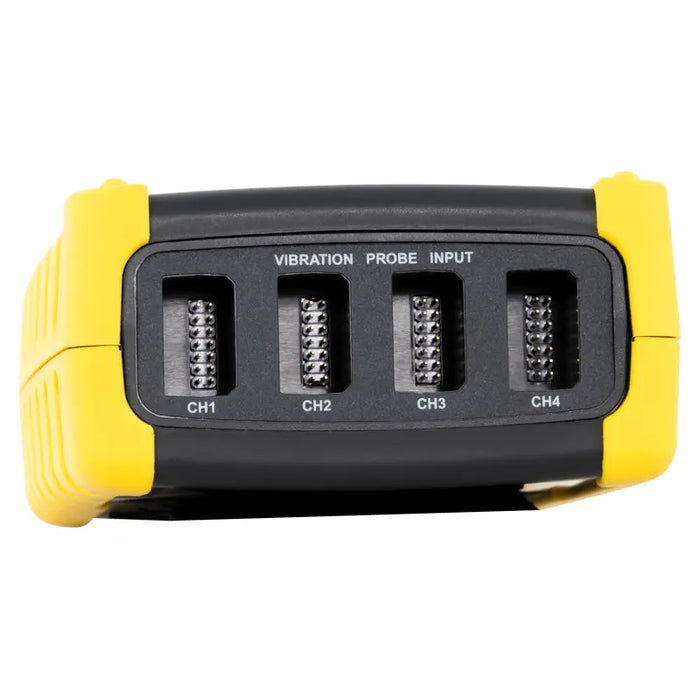

4 input channels |
| Measurement types |
Speed, acceleration, expansion |
| Unit of measurement |
Acceleration: m/s², g, ft/s² Speed: mm/s, cm/s, inches/s Expansion: mm, inches |
| Frequency range | 10 Hz ... 1 kHz |
| Peak hold | Acceleration, Speed: Measures / updates the max. value Expansion: Measures / updates the p-p value |
| Max hold | Acceleration, Speed: Measures / updates the max. value Expansion: Measures / updates the p-p value |
| Max hold reset | Push-button activation |
| Zero function | Push-button activation for acceleration-(RMS) measurements |
| Datalogger sampling rate |
Automatic: 1 ... 3,600 seconds Manually: at the push of a button |

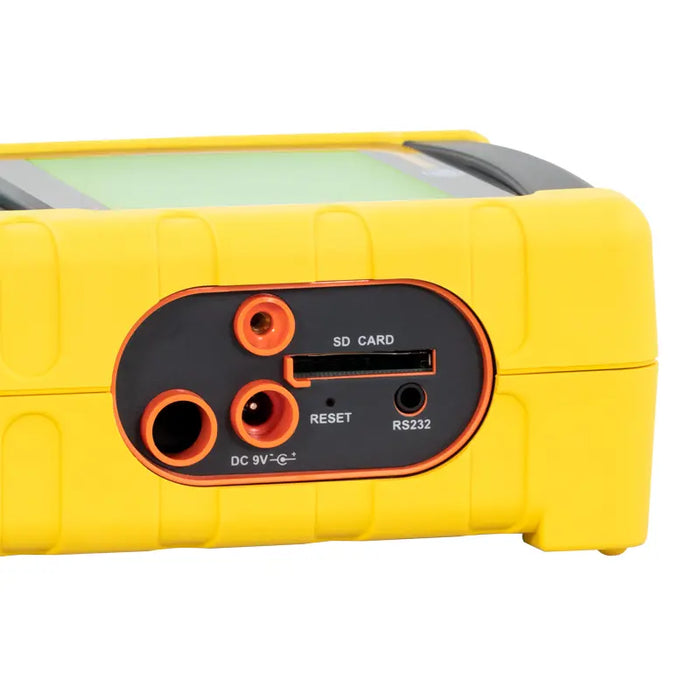

| Memory card |
SD memory card (1 ... 16 GB) |
| Data hold function | Holds displayed measured value |
| Audio output point |
Mini stereo jack socket Max. voltage: 2 V Output resistance: 100 Ohm |
| Operating temperature | 0 ... +50 degreesC / 32 ... 122 degreesF |
| Operating humidity |
85 % r.H. max. |
| Power supply |
8 x 1.5 V AA batteries or 9 V power adapter |
| Power consumption |
NiMH battery 3 x 2700 mAh |
| Operating / charging time |
Normal operation: approx. 12 mA dc With the background lighting switched off and the data logger switched on: approx. 35 mA dc |
| Weight | Meter: 515 g / / 1.1 lbs Probe with cable and magnetic base: 99 g / 0.2 lbs |
| Dimensions | Main unit: 203 x 76 x 38 mm / 8.0 x 3.0 x 1.5" Probe: 16 x 37 mm / 0.6 in x 1.5" in diameter Cable length: 1.2 m / 3.9 ft |
display and storage of acceleration, speed and displacement measurement of vibrations /

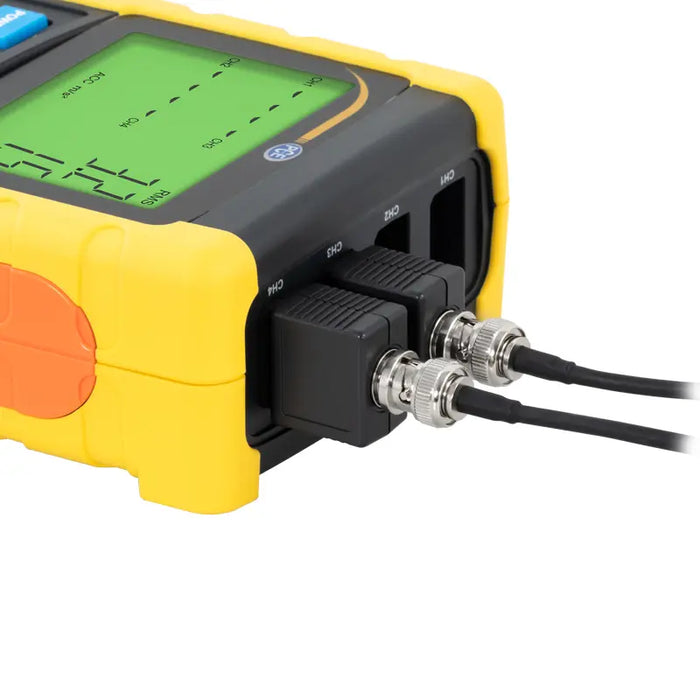

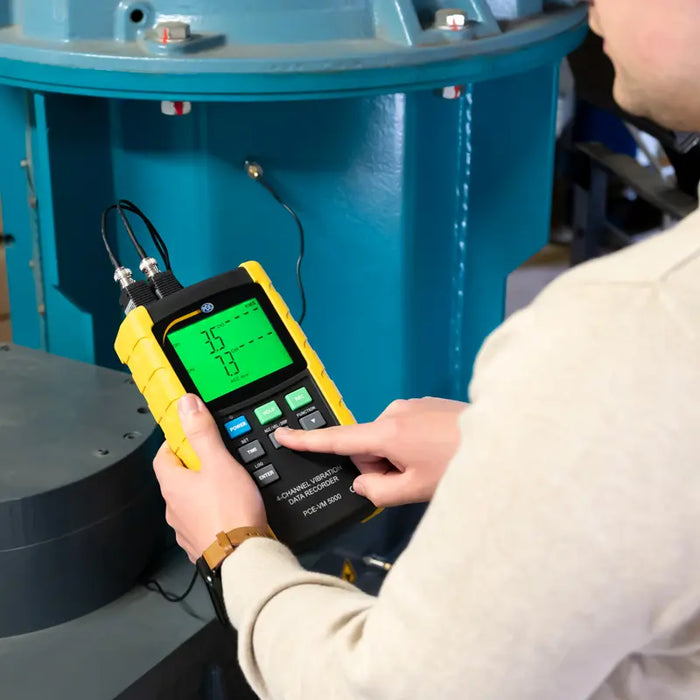

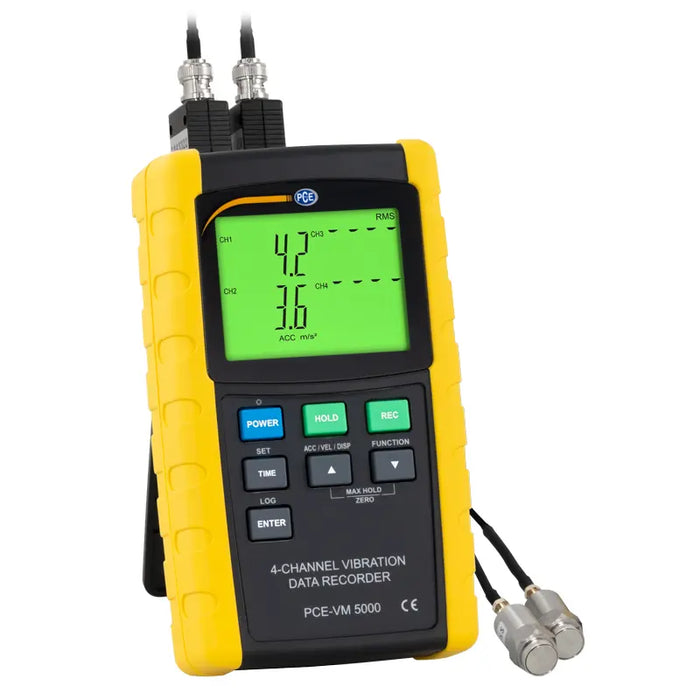

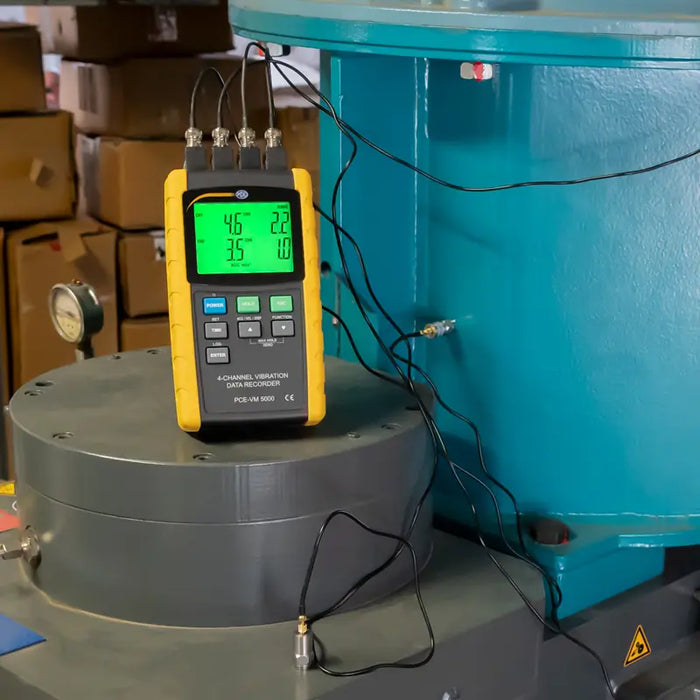

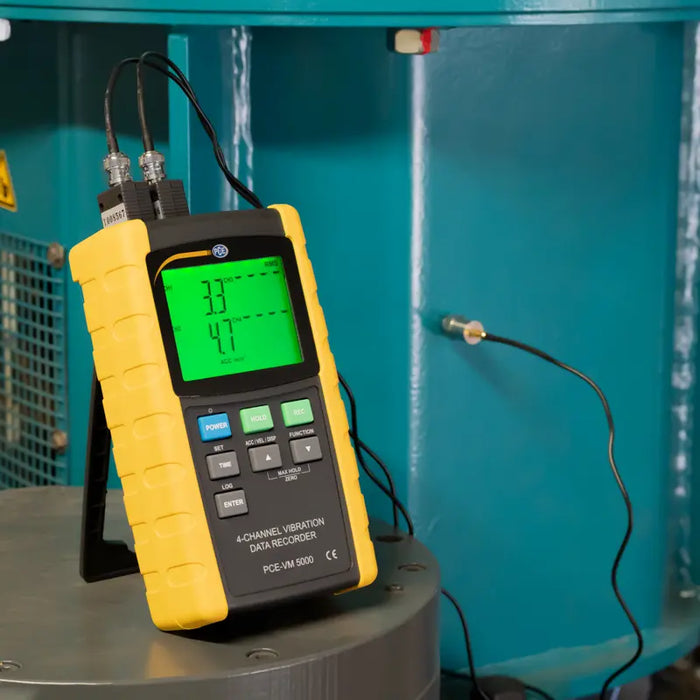

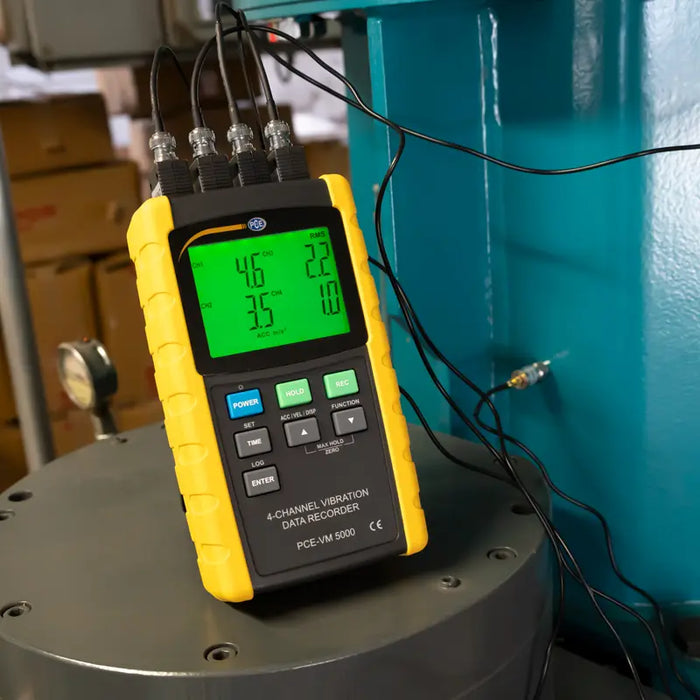

4-channel vibration Vibration Meter indicates 4 channels of simultaneous vibration metering through remote vibration sensors
- Long-lasting battery
- Precise measurement
- Large, LCD display with background lights
- Different measurement units
- Data storage on SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data on the PC with Excel

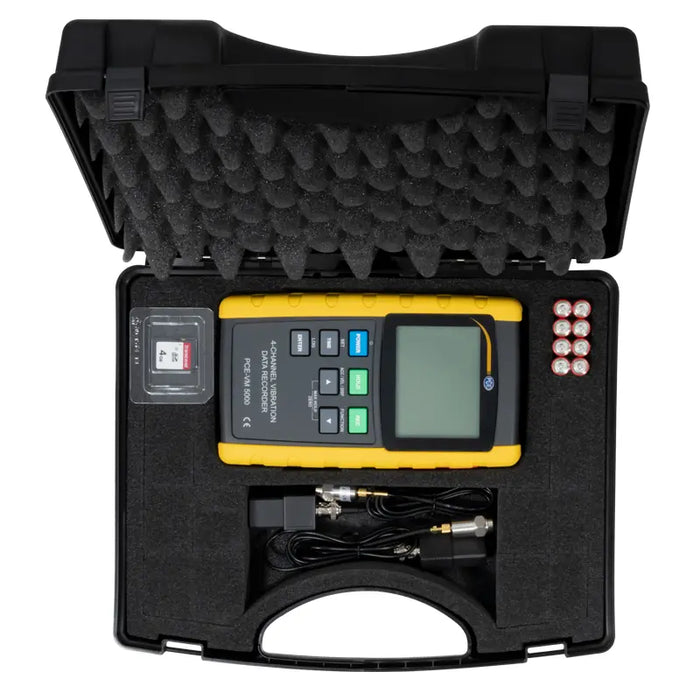

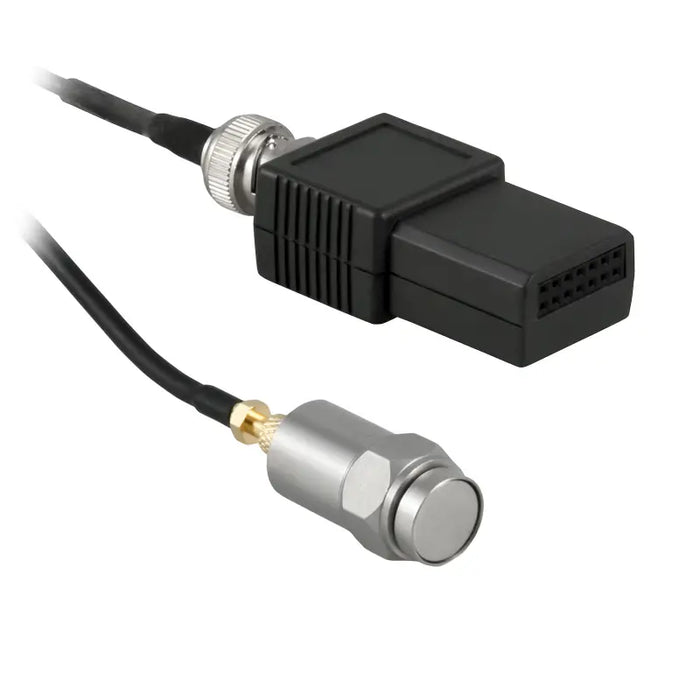

2 x Sensor VB-83 with cable and magnetic base (1.2m / 3.9 ft)
2 x Vibration sensor VB-84
8 x 1.5V AA batteries
1 x Transportation case
1 x Instruction manual
1 Year Warranty
PCE Instruments Factory
The PCE Deutschland GmbH, known as PCE Instruments, is a German company based in Meschede, which from 1999 to the present has established itself internationally as a reliable manufacturer and supplier of measuring, testing, and weighing instruments. The company offers an exceptionally wide range of instruments – from vibration, humidity, noise, and temperature meters to precision scales, analyzers, sensors, and data loggers – covering every need in industry, laboratories, and research.
PCE Instruments products are used in a wide range of sectors such as industrial production, quality control, equipment maintenance and assurance, environmental measurement, energy inspection, as well as education and scientific research. With a combination of know-how, reliability, and flexibility, the company provides complete solutions that ensure accurate results and contribute to improving measurement and testing processes in every professional sector.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of PCE Instruments in Greece since 2015. We have a large variety of Pce products in stock, which is continuously increasing. In addition, we can support the entire range of its catalog, which includes more than 5,000 different product codes.
In our store we provide technical support for all PCE Instrumentrs products via trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|
| PCE-VM 5000-KIT | On Order |
+VAT
€3.077,00
|
5-8 business days
|
