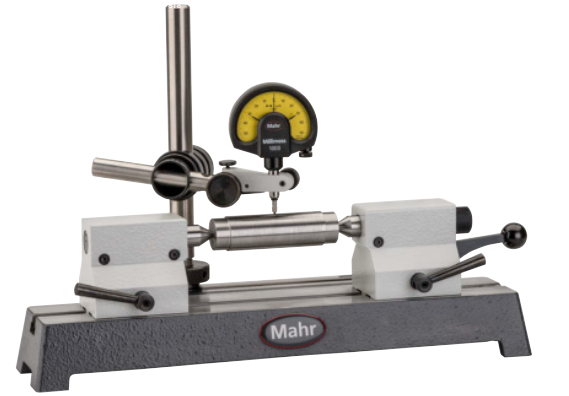

The MarStand 818 is a radial displacement measuring system with center support, suitable for eccentricity tests of shafts between two points. It includes a measuring bench with T guides, two movable tailstocks, and a support with a micrometer adjuster. It allows high-precision measurements on parts without or with a center.

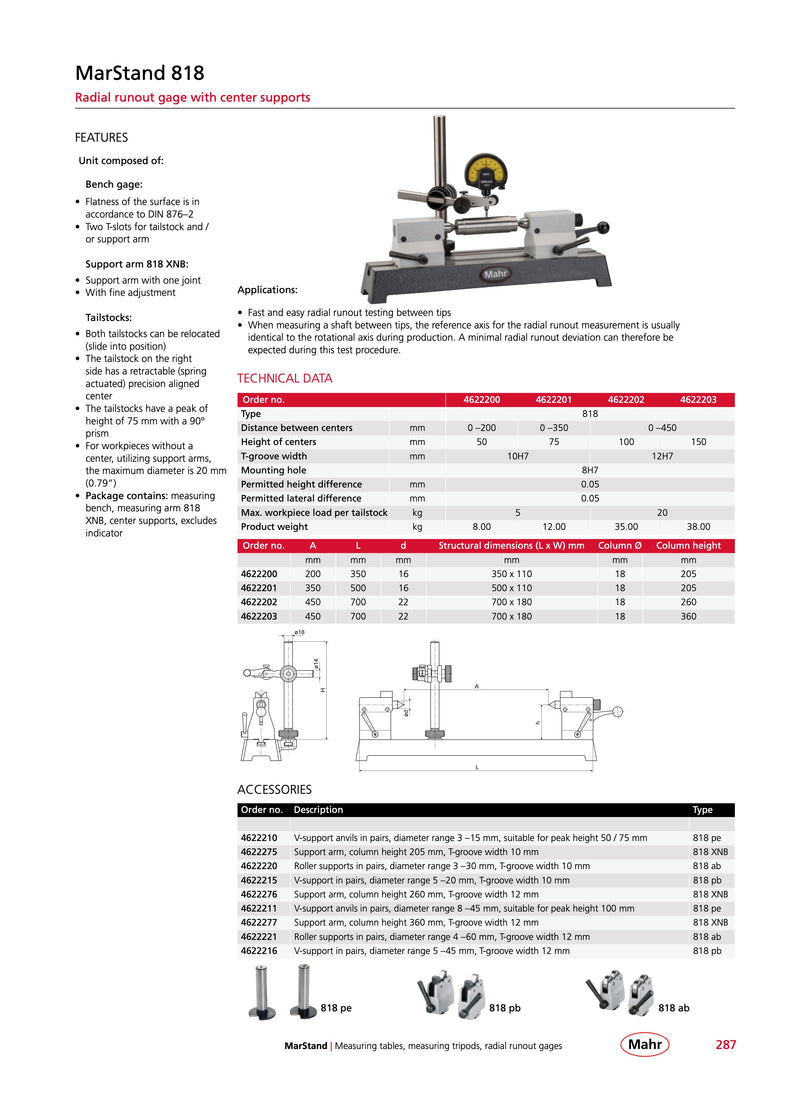

Technical Specifications
-
Distance between centers: 0–200 mm / 0–350 mm / 0–450 mm
-
Center height: 50 mm / 75 mm / 100 mm / 150 mm
-
T guide width: 10H7 / 12H7
-
Support hole: 8H7
-
Maximum height difference: 0.05 mm
-
Maximum lateral deviation: 0.05 mm
-
Maximum load per support: 5 kg / 20 kg
-
Product weight: 8.00 kg / 12.00 kg / 35.00 kg / 38.00 kg
-
Included: Measuring bench, 818 XNB support, two tailstocks (right with micrometer adjuster)
-
Not included: Dial indicator
| SKU | Point - point | Center Height | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| MA-4622200 | 0-200 mm | 50 mm | 5-8 business days |
+VAT
€1.046,00
|
|
| MA-4622201 | 0-350 mm | 75 mm | 5-8 business days |
+VAT
€1.304,00
|
|
| MA-4622202 | 0-450 mm | 100 mm | 5-8 business days |
+VAT
€3.350,00
|
|
| MA-4622203 | 0-450 mm | 150 mm | 5-8 business days |
+VAT
€3.713,00
|
