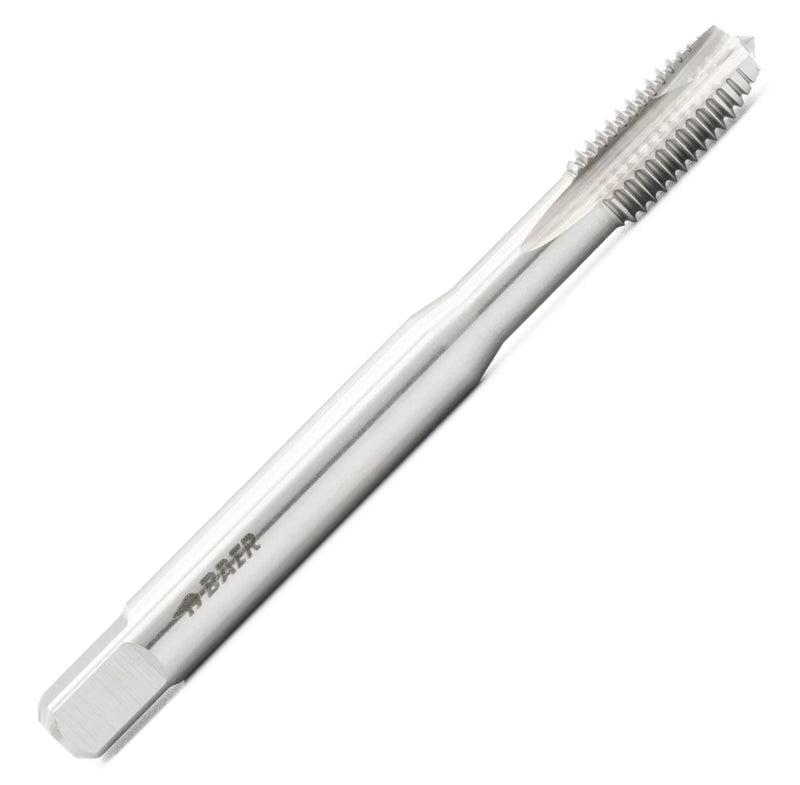

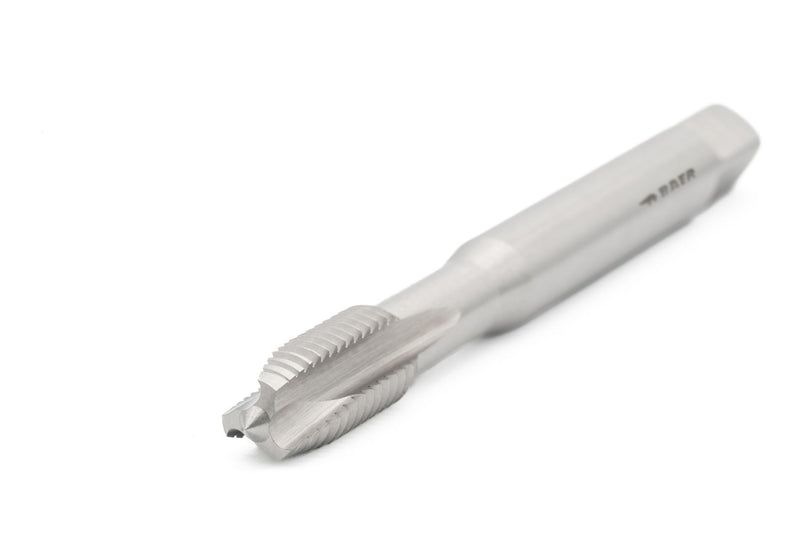

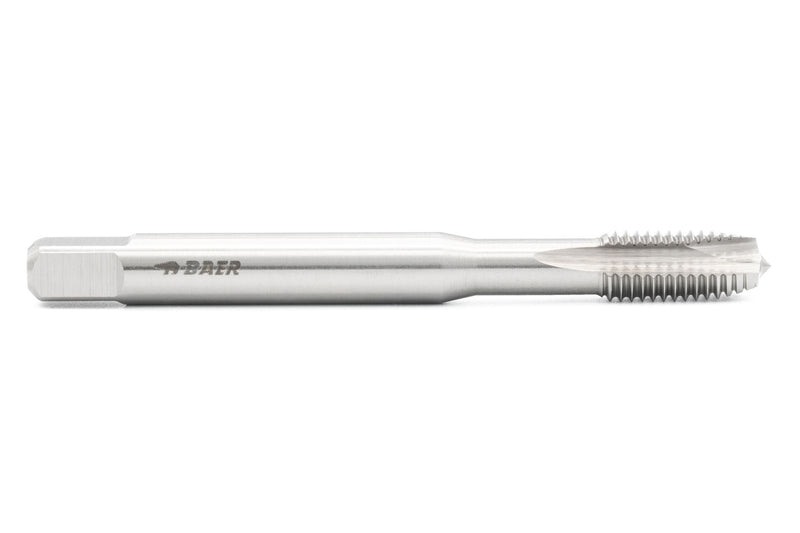

Machine Tap M-Metric - DIN 371 Thick Shank
TMS-M
| Κωδικός | Thread | ØD2(mm) | Ød1(mm) | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| TMS-M2x0.4 | M2 x 0.4 | 2.8 | 1.6 | €10,20 | 7 διαθέσιμα | ||
| TMS-M2.5x0.45 | M2.5 x 0.45 | 2.8 | 2.05 | €10,20 | 6 διαθέσιμα | ||
| TMS-M2.6x0.45 | M2.6 x 0.45 | 2.8 | 2.1 | €13,30 | 1 διαθέσιμo | ||
| TMS-M3x0.5 | M3 x 0.5 | 3.5 | 2.5 | €7,80 | 9 διαθέσιμα | ||
| TMS-M3.5x0.6 | M3.5 x 0.6 | 4 | 2.9 | €8,60 | 1 διαθέσιμo | ||
| TMS-M4x0.7 | M4 x 0.70 | 4.5 | 3.3 | €7,90 | 24 διαθέσιμα | ||
| TMS-M4.5x0.75 | M4.5 x 0.75 | 6 | 3.7 | €17,00 | 1 διαθέσιμo | ||
| TMS-M5x0.8 | M5 x 0.8 | 6 | 4.2 | €8,40 | 9 διαθέσιμα | ||
| TMS-M6x1 | M6 x 1 | 6 | 5 | €8,40 | 26 διαθέσιμα | ||
| TMS-M7x1 | M7 x 1 | 7 | 6 | €11,70 | 8 διαθέσιμα | ||
| TMS-M8x1.25 | M8 x 1.25 | 8 | 6.8 | €10,40 | 13 διαθέσιμα | ||
| TMS-M9x1.25 | M9 x 1.25 | 9 | 7.8 | €18,20 | 1 διαθέσιμo | ||
| TMS-M10x1.5 | M10 x 1.5 | 10 | 8.5 | €13,00 | 11 διαθέσιμα | ||
Description:
Machine Tap of an economic series from Baer. Suitable for basic machining on easy materials. Not recommended for production use or machining demanding materials, as its lifespan is limited due to its economical construction.
Machining Materials
Excellent choice for:
- (P1-5) - Common Carbon Steels - (Irons - Black - St37 - ck40)
Suitable but not optimal choice for:
- (P5-9) - Light Alloyed Steels - (Steels - Structural Steels)
Cutting Material
-
HSS-E – High-speed steel enriched with 5% cobalt Offers improved hardness and high heat resistance. It is an upgrade compared to classic HSS.
-
Bright Finish (Uncoated) – Uncoated, with a shiny surface. Mainly used on soft materials and general-purpose applications where there are no high demands.
Technical Specifications:
-
Thread: (M) Metric Standard 60° DIN 13
-
Hole Type: Through holes up to 4xD
-
Form: Form B - Chamfer 4~5 threads
-
Geometry: (Straight flute - Spiral point) Straight tap with chip guidance downwards. Produces continuous chip. Used in drilled holes.
-
Tolerance: ISO2/6H (standard tolerance for metric threads)
-
Shank: DIN 371
