Thread repair kits are used to fix damaged or defective threads in metals, many plastics, or composite materials.
The process of repairing threads in a damaged hole, using a V-COIL Set, involves the following steps:
- Drill out the damaged threads using a drill of the correct size.
- Then create a new thread with the tap included in the set.
- Screw the spring into the new thread in the hole, using the insertion tool, just below the surface of the component.
- Unscrew the insertion tool. The threaded insert will expand slightly as the torque is released from the insertion tool. This will cause it to lock into the component.
-
BaerCoil thread inserts can be shortened, depending on the required length, with a side cutter or similar tool.
BAER Factory
The BAER Tools GmbH, headquartered in Heddesheim, Germany, is a family business with more than 40 years of specialization in cutting and threading technology; from 1984 to today it has established itself as a reliable supplier of threading tools, such as taps, dies and thread inserts. The company offers an impressive variety of products, from hand taps and machine taps for cutting internal and external threads to specialized thread repair and reinforcement systems (BaerCoil® and BaerFix®) — adapted for use in metal and plastic materials, even in demanding applications such as the aerospace industry.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of BAER in Greece. We have more than 1,000 BAER product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the BAER catalog, which includes more than 10,000 different product codes.

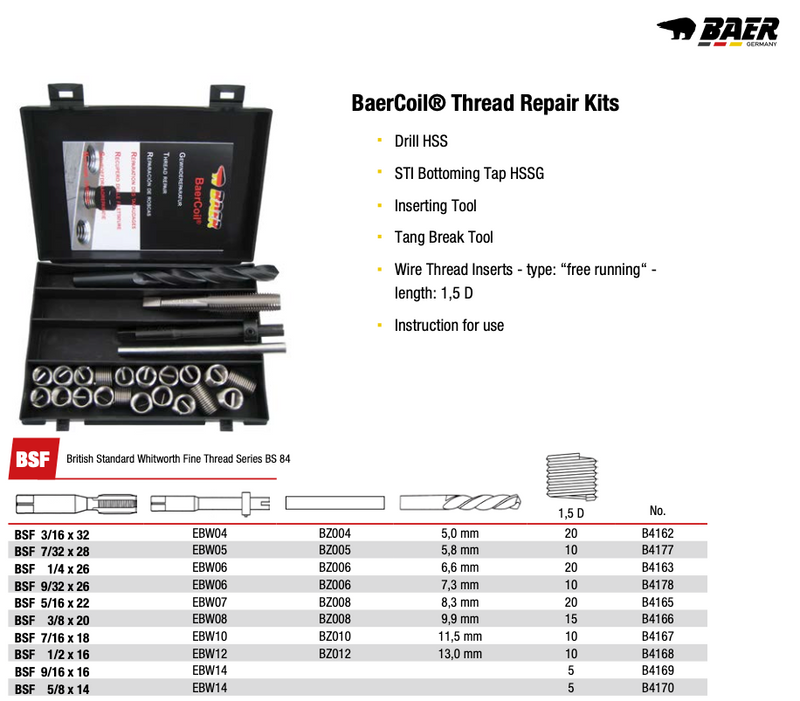

| SKU | Diameter | TPI | Drill | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| WTI-BSF-3/16-32 | 3/16" | 32 | 5 mm | 5-8 business days |
+VAT
€34,90
|
|
| WTI-BSF-1/4-26 | 1/4" | 26 | 6.6 mm | 5-8 business days |
+VAT
€32,00
|
|
| WTI-BSF-5/16-22 | 5/16" | 22 | 8.3 mm | 5-8 business days |
+VAT
€38,80
|
|
| WTI-BSF-3/8-20 | 3/8" | 20 | 9.9 mm | 5-8 business days |
+VAT
€41,60
|
|
| WTI-BSF-7/16-18 | 7/16" | 18 | 11.6 mm | 5-8 business days |
+VAT
€44,30
|
|
| WTI-BSF-1/2-16 | 1/2" | 16 | 13 mm | 5-8 business days |
+VAT
€46,90
|
|
| WTI-BSF-9/16-16 | 9/16" | 16 | 14.8 mm | 5-8 business days |
+VAT
€59,20
|
|
| WTI-BSF-5/8-14 | 5/8" | 14 | 18 mm | 5-8 business days |
+VAT
€59,20
|
