IUS3 - Τσόκ Τόρνου Μαντεμένιο με 3 Ατσάλινους Σφιγκτήρες
από Tos
| Κωδικός | Μέγεθος | Πατούρα | Max Ø | Τιμή ** | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 083210 | Ø 80 mm | Ø63mm | Ø76mm | €226,00 | 2 διαθέσιμα | ||
| 103210 | Ø 100 mm | Ø80mm | Ø100mm | €244,00 | 5 διαθέσιμα | ||
| 123210 | Ø 125 mm | Ø100mm | Ø125mm | €265,00 | 6 διαθέσιμα | ||
| 163210 | Ø 160 mm | Ø130mm | Ø164mm | €332,00 | 5 διαθέσιμα | ||
| 203210 | Ø 200 mm | Ø162mm | Ø200mm | €450,00 | 4 διαθέσιμα | ||
| 253210 | Ø 250 mm | Ø210mm | Ø256mm | €657,00 | 5 διαθέσιμα | ||
| 313210 | Ø 315 mm | Ø265mm | Ø312mm | €1.062,00 | 2 διαθέσιμα | ||
Τιμές χωρίς ΦΠΑ 24%
The IUS chucks are available in 3, 4 and 6-jaw designs, in two accuracy classes with standard jaws ending in M1, A, B, D series. Standard jaw set SCN) allows for wide use of chucks.
IUS chucks
- chuck body - ductile cast iron
- functional surfaces ground, ensure accuracy of clamping and extend chuck life
- from ø160 size hardened and ground steel tongues for guiding jaws

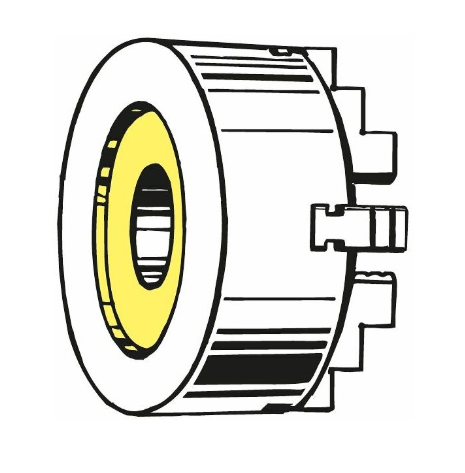

- clamping the chuck on the machine spindle by means of an intermediate flange according to ČSN 243801
- 1 set of hard outer jaws SCV, 1 set of hard inner jaws SCN
- 1 spanner, clamping screws
