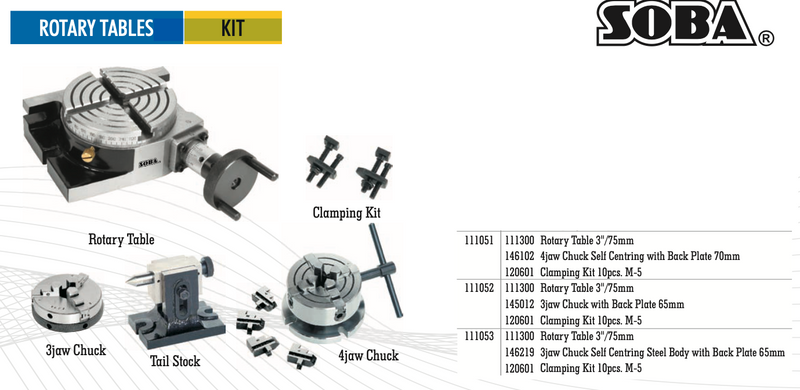

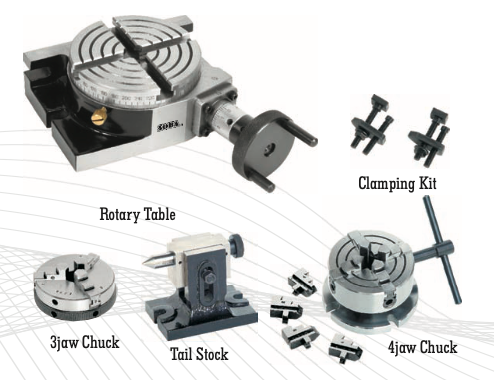

6S02.1.01 - Περιστρεφόμενο Τραπέζι + Τσόκ με 4 Ανεξάρτητους Σφιγκτήρες + Πόντα
από Hogetex
| Κωδικός | Ø Τραπεζιού | Ø Τσοκ | Max | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 6S02.1.01 | Ø 75 mm | Ø 75 mm | Ø85 mm | €169,00 | 2 διαθέσιμα | ||
| 6S02.1.02 | Ø 100 mm | Ø 85 mm | Ø100 mm | €185,00 | Με παραγγελία | ||
Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

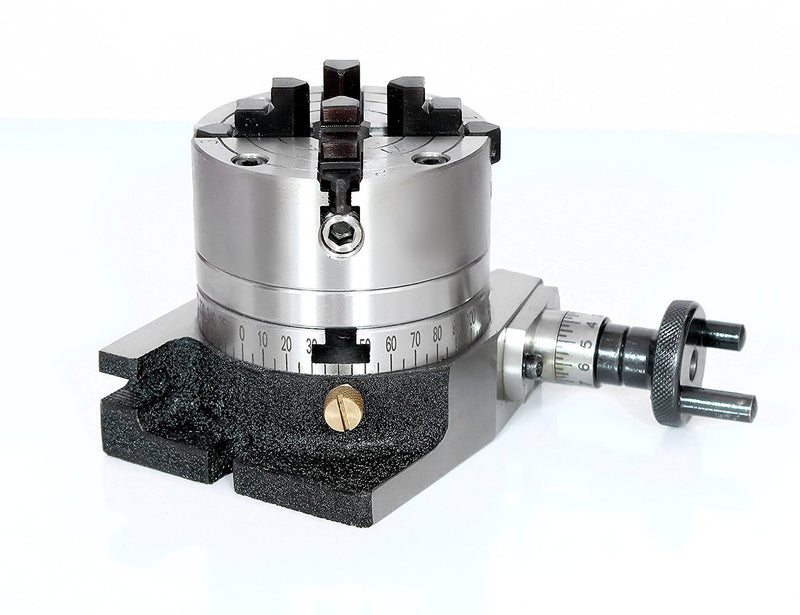

Mini ultra-compact Horizontal / Vertical
Divider with table size of 75mm or
100mm with 4-jaw plate and countercenter.
Precision ground table and precision
ground and hardened worm gear.
The distribution table is with a range of 360 °.
The table has a ratio of the lever
of 36: 1. With 1 turn of the wheel
the table turns 4 °. Reading of the table is divided into 1 minutes. The vernier has a reading of 10 seconds. Width T slots: 5mm These are also included. The mounted chuck is an independent 4-jaw plate with 75mm diameter or 85mm.
