Κονδύλι 2Φτερο Καρβιδίου Blue Sharp για Βαμμένα
P
H
BLUE

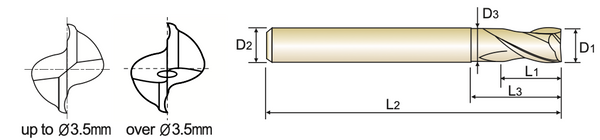

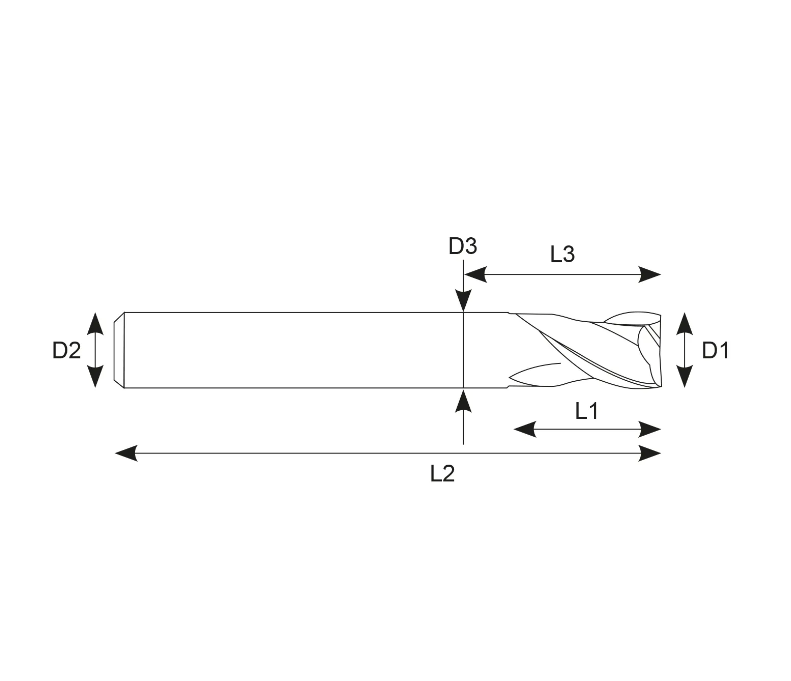

| Κωδικός | D1 (mm) | D2 - D3 (mm) | L2 - L1 - L3 (mm) | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| ET2BLUE-0.1 | 0.1 | 4 | 40 - 0.2 | €57,80 | Κατόπιν Παραγγελίας | ||
| ET2BLUE-0.2 | 0.2 | 4 | 40 - 0.4 | €38,40 | 5-8 εργάσιμες | ||
| ET2BLUE-0.3 | 0.3 | 4 | 40 - 0.6 | €33,20 | 5-8 εργάσιμες | ||
| ET2BLUE-0.4 | 0.4 | 4 | 40 - 0.8 | €36,20 | 5-8 εργάσιμες | ||
| ET2BLUE-0.5 | 0.5 | 4 | 40 - 1 | €26,20 | 5-8 εργάσιμες | ||
| ET2BLUE-0.6 | 0.6 | 4 | 40 - 1.2 | €27,60 | 5-8 εργάσιμες | ||
| ET2BLUE-0.7 | 0.7 | 4 | 40 - 1.4 | €31,50 | 5-8 εργάσιμες | ||
| ET2BLUE-0.8 | 0.8 | 4 | 40 - 1.6 | €30,60 | 5-8 εργάσιμες | ||
| ET2BLUE-0.9 | 0.9 | 4 | 40 - 2 | €30,60 | Κατόπιν Παραγγελίας | ||
| ET2BLUE-1 | 1 | 6 - 1.95 | 50 - 1.5 - 3 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-1.5 | 1.5 | 6 - 1.95 | 50 - 1.7 - 4 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-2 | 2 | 6 - 1.95 | 50 - 2 - 5 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-2.5 | 2.5 | 6 - 2.40 | 55 - 2.5 - 6 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-3 | 3 | 6 - 2.85 | 55 - 3 - 8 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-3.5 | 3.5 | 6 - 3.35 | 55 - 3.5 - 9 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-4 | 4 | 6 - 3.85 | 55 - 4 - 10 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-5 | 5 | 6 - 4.85 | 55 - 5 - 13 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-6 | 6 | 6 - 5.85 | 55 - 6 - 15 | €34,90 | 5-8 εργάσιμες | ||
| ET2BLUE-8 | 8 | 8 - 7.70 | 65 - 8 - 20 | €42,90 | 5-8 εργάσιμες | ||
| ET2BLUE-10 | 10 | 10 - 9.70 | 75 - 10 - 25 | €64,00 | 5-8 εργάσιμες | ||
| ET2BLUE-12 | 12 | 12 - 11.70 | 85 - 12 - 28 | €89,00 | 5-8 εργάσιμες | ||
| ET2BLUE-16 | 16 | 16 - 15.70 | 90 - 16 - 32 | €149,00 | 5-8 εργάσιμες | ||
| ET2BLUE-20 | 20 | 20 - 19.70 | 105 - 20 - 40 | €245,00 | Κατόπιν Παραγγελίας | ||
Τιμές χωρίς ΦΠΑ 24%

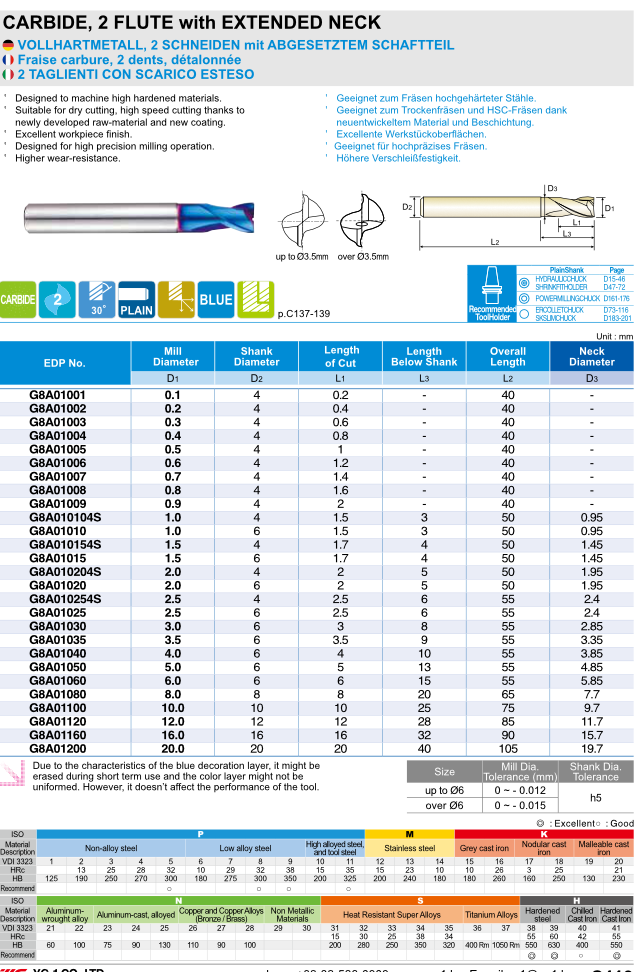

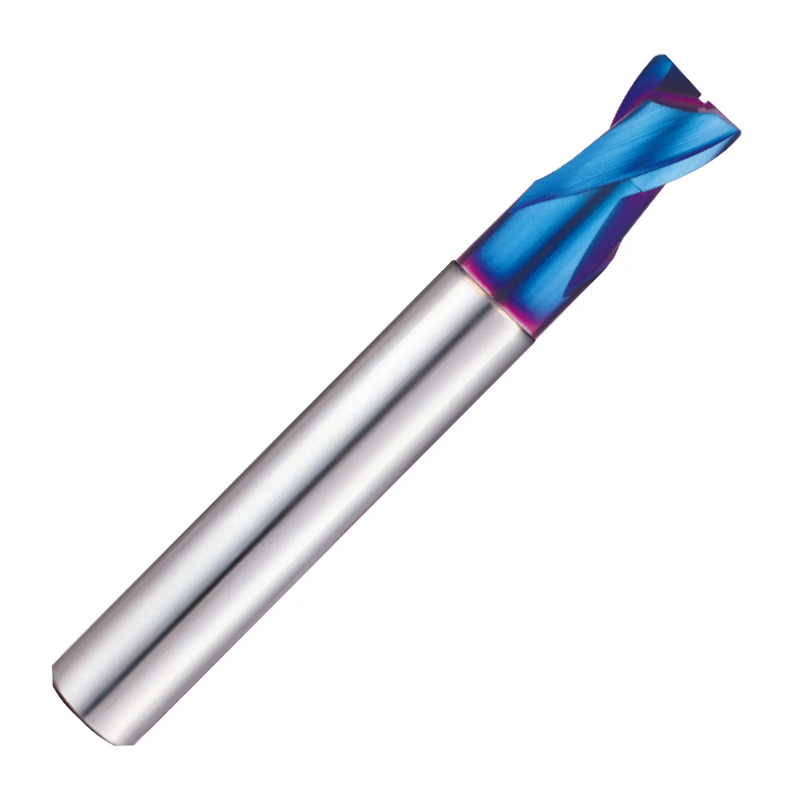

The YG-1 G8A01 series X5070 Blue ultrafine micrograin carbide cutter has 2 flutes and a plain shank. These slot drills have an extended/relieved neck and range in diameter from 0.1mm-20mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°)
- Long neck for extended reach.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
