Specification
| DC voltage | |
| Measuring range | 600.0 mV DC |
| Resolution | 0.1 mV DC |
| Accuracy | plus-minus(0.5 % + 8 digits) |
| Measuring range | 6.000 V DC |
| Resolution | 0.001 V DC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 60.00 V DC |
| Resolution | 0.01 V DC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 600.0 V DC |
| Resolution | 0.1 V DC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 1000 V DC |
| Resolution | 1 V |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Input impedance | >10 MΩ |
| Overvoltage protection | 1000 V AC/DC |
| AC voltage | |
| Measuring range | 6.000 V AC |
| Resolution | 0.001 V AC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 60.00 V AC |
| Resolution | 0.01 V AC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 600.0 V AC |
| Resolution | 0.1 V AC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 1000 V AC |
| Resolution | 1 V AC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Peak value (PEAK) accuracy | plus-minus10 % |
| Peak value (PEAK) response time | 1 ms |
| Input impedance | >10 MΩ |
| Overvoltage protection | 1000 V AC/DC |
| The accuracy relates to a measuring range of 10 ... 100 % with a sine wave. | |
| Low pass filter (LowZ) (50 ... 400 Hz) |
|
| Measuring range | 6.000 V AC |
| Resolution | 0.001 V AC |
| Accuracy | plus-minus(3.0 % + 40 digits) |
| Measuring range | 60.00 V AC |
| Resolution | 0.01 V AC |
| Accuracy | plus-minus(3.0 % + 40 digits) |
| Measuring range | 300.0 V AC |
| Resolution | 0.1 V |
| Accuracy | plus-minus(3.0 % + 40 digits) |
| Input impedance | <300 kΩ |
| Overvoltage protection | 1000 V AC/DC |
| The accuracy relates to a measuring range of 10 ... 100 % with a sine wave. | |
| AC with DC voltage (50 ... 400 Hz) |
|
| Measuring range | 6.000 V AC |
| Resolution | 0.001 V AC |
| Accuracy | plus-minus(2.5 % + 20 digits) |
| Measuring range | 60.00 V AC |
| Resolution | 0.01 V AC |
| Accuracy | plus-minus(2.5 % + 20 digits) |
| Measuring range | 600.0 V AC |
| Resolution | 0.1 V AC |
| Accuracy | plus-minus(2.5 % + 20 digits) |
| Measuring range | 1000 V AC |
| Resolution | 1 V AC |
| Accuracy | plus-minus(2.5 % + 20 digits) |
| Input impedance | >10 MΩ |
| Direct current | |
| Measuring range | 600.0 A DC |
| Resolution | 0.1 A DC |
| Accuracy | plus-minus(2.5 % + 5 digits) |
| Measuring range | 1000 A DC |
| Resolution | 1 A DC |
| Accuracy | plus-minus(2.8 % + 5 digits) |
| Overvoltage protection | 1000 A DC |
| Alternating current (50 ... 60 Hz) |
|
| Measuring range | 600.0 A AC |
| Resolution | 0.1 A AC |
| Accuracy | plus-minus(2.5 % + 5 digits) |
| Measuring range | 1000 A AC |
| Resolution | 1 A AC |
| Accuracy | plus-minus(2.8 % + 5 digits) |
| Overload protection | 1000 A AC/DC |
| Flexible clamp meter (50 ... 400 Hz) |
|
| Measuring range | 30.00 A AC |
| Resolution | 0.01 A AC |
| Accuracy | plus-minus(3.0 % + 5 digits) |
| Measuring range | 300.0 A AC |
| Resolution | 0.1 A AC |
| Accuracy | plus-minus(3.0 % + 5 digits) |
| Measuring range | 3000 A AC |
| Resolution | 1 A AC |
| Accuracy | plus-minus(3.0 % + 5 digits) |
| Overload protection | 3000 A AC/DC |
| The accuracy relates to a measuring range of 10 ... 100 % with a sine wave. | |
| Resistance | |
| Measuring range | 600.0 Ω |
| Resolution | 0.1 Ω |
| Accuracy | plus-minus(1.0 % + 10 digits) |
| Measuring range | 6.000 kΩ |
| Resolution | 0.001 kΩ |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 60.00 kΩ |
| Resolution | 0.01 kΩ |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 600.0 kΩ |
| Resolution | 0.1 kΩ |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 6.000 MΩ |
| Resolution | 0.001 MΩ |
| Accuracy | plus-minus(2.5 % + 5 digits) |
| Measuring range | 60.00 MΩ |
| Resolution | 0.01 MΩ |
| Accuracy | plus-minus(3.5 % + 10 digits) |
| Overvoltage protection | 1000 V AC/DC |
| Continuity test | |
| Signal | <50 Ω |
| Overvoltage protection | 1000 V AC/DC |
| Diode test | |
| Test current | <1.5 mA |
| Maximum tension when open circuit |
3.3 V DC |
| Frequency measurement | |
| Measuring range | 9.999 Hz ... 99.99 kHz |
| Resolution | 0.01 ... 10 Hz |
| Accuracy | plus-minus(1.2 % + 5 digits) |
| Overvoltage protection | 1000 V AC/DC |
| Sensitivity | >5 Vrms with one duty cycle |
| from 20 ... 80 % | |
| Duty cycle | |
| Measuring range | 10.0 ... 90.0 % |
| Resolution | 0.1 % |
| Accuracy | plus-minus(1.2 % + 8 digits) |
| Pulse range | 40 Hz ... 10 kHz |
| Pulse amplitude | plus-minus5 V (0.1 ... 100 ms) |
| Capacity | |
| Measuring range | 60.00 nF |
| Resolution | 0.01 nF |
| Accuracy | plus-minus(4.0 % + 20 digits) |
| Measuring range | 600.0 nF |
| Resolution | 0.1 nF |
| Accuracy | plus-minus(3.0 % + 8 digits) |
| Measuring range | 6.000 microF |
| Resolution | 0.001 microF |
| Accuracy | plus-minus(3.0 % + 8 digits) |
| Measuring range | 60.00 microF |
| Resolution | 0.01 microF |
| Accuracy | plus-minus(3.0 % + 8 digits) |
| Measuring range | 600.0 microF |
| Resolution | 0.1 microF |
| Accuracy | plus-minus(3.0 % + 8 digits) |
| Measuring range | 6000 microF |
| Resolution | 1 microF |
| Accuracy | plus-minus(5.0 % + 8 digits) |
| Measuring range | 60.00 mF |
| Resolution | 0.01 mF |
| Accuracy | plus-minus(5.0 % + 20 digits) |
| Measuring range | 100.0 mF |
| Resolution | 0.1 mF |
| Accuracy | plus-minus(5.0 % + 20 digits) |
| Overvoltage protection | 1000 V AC/DC |
| Temperature measurement (Thermocouple Type K) |
|
| Measuring range | -40 ... 600.0 degreesC |
| Resolution | 0.1 degreesC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | 600 ... 1000 degreesC |
| Resolution | 1 degreesC |
| Accuracy | plus-minus(1.5 % + 5 digits) |
| Measuring range | -40 ... 600.0 degreesF |
| Resolution | 0.1 degreesF |
| Accuracy | plus-minus(1.5 % + 9 digits) |
| Measuring range | 600 ... 1800 degreesF |
| Resolution | 1 degreesF |
| Accuracy | plus-minus(1.5 % + 9 digits) |
| Overvoltage protection | 1000 V AC/DC |
| The accuracy refers to the measuring device without temperature probe. Specifications refer to a stable ambient condition of plus-minus1 degreesC. If the measurement lasts for a long time, the measured value increases by 2 degreesC | |
| Further specifications | |
| Clamp opening |
34 mm / 1.3" |
| NCV | >150 V AC |
| Display | LC colour display |
| Display when measuring range exceeded | "OL" (overload) |
| Measuring rate | 3 measured values per second |
| Interface | Bluetooth |
| Operating conditions | 5 ... 40 degreesC / 41 ... 104 degreesF |
| <80 % RH non-condensing at | |
| 31 degreesC / 87 degreesF linearly decreasing to 50 % RH | |
| non-condensing at 40 degreesC / 104 degreesF | |
| Storage conditions | -20 ... 40 degreesC / -4 ... 140 degreesF <80 % RH |
| non-condensing | |
| Maximum working height | 2000 m / 7000 ft |
| Power supply | 3 x 1.5 V AAA batteries |
| Auto power off | Switched off, 15, 30, 45, 60 minutes |
| Dimensions | 250 x 80 x 40 mm / 9.8 x 3.1 x 1.5" |
| Weight | 365 g / 12.8 oz |
Description

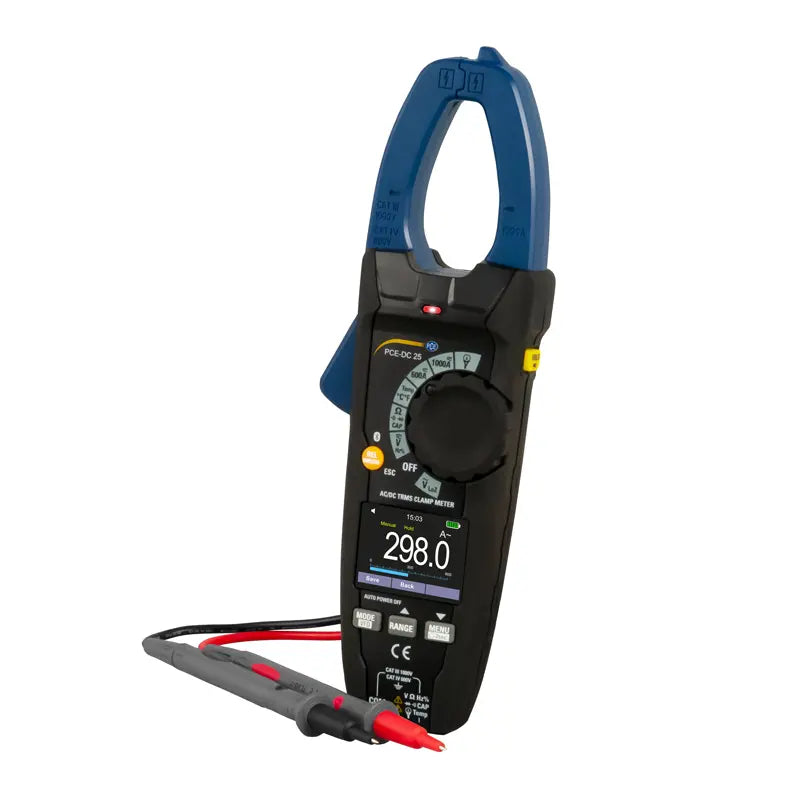

IoT Meter with Bluetooth interface / Current measurement 0 ... 1000 A AC/DC / Temperature measurement / NCV test / Clamp opening 34 mm (1.3") / Measuring rate of 3 Hz /
Optionally expandable with Rogowski coil for 3000 A AC / Automatic switch-off
Optionally expandable with Rogowski coil for 3000 A AC / Automatic switch-off

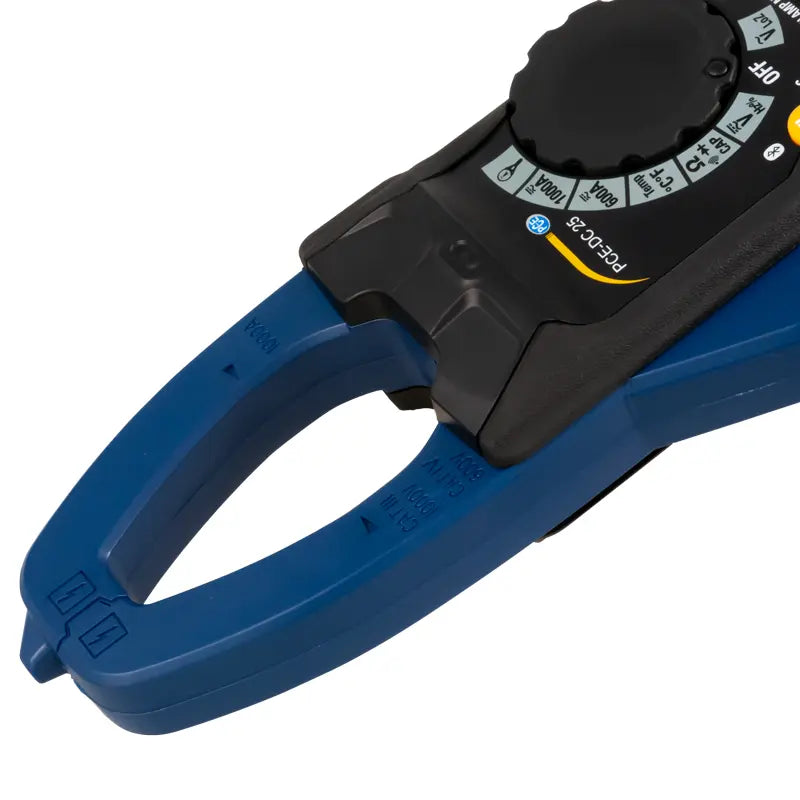

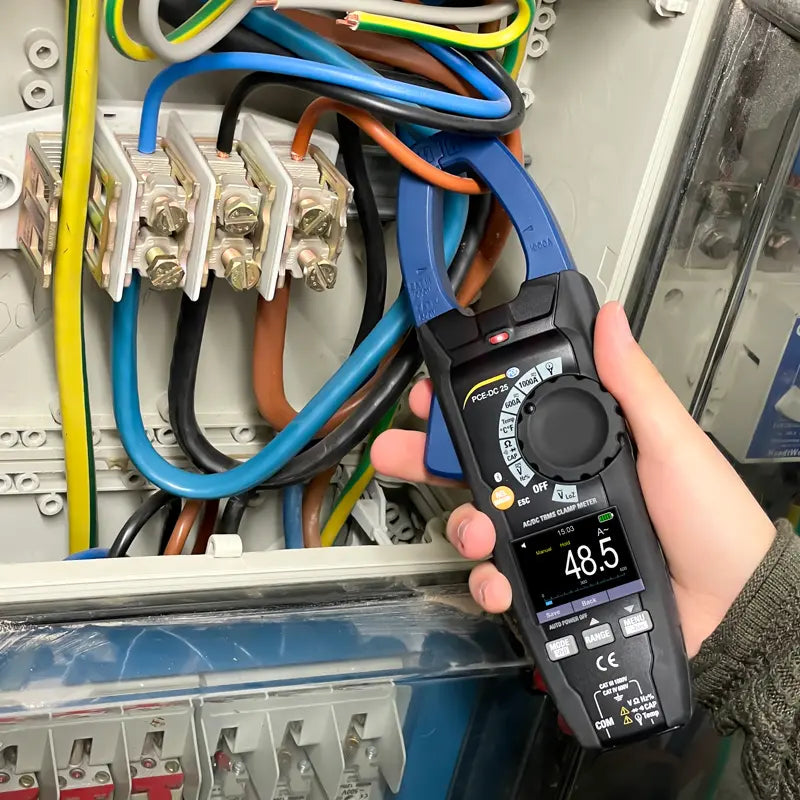

The IoT meter has a measuring range of 0… 1000 A AC/DC. The current is measured inductively using the clamp on the IoT meter. Live supply lines with a diameter of up to 32 mm (1.2") can be connected to the IoT meter. With the optional Rogowski coil, the measuring range of the clamp meter can be extended to up to 3000 A AC. The IoT meter has sub-functions for current measurement. The inrush current can be measured with the IoT meter. This is a particularly important function, as motors such as those installed in ventilation systems or hall lighting require a particularly high current when switched on.

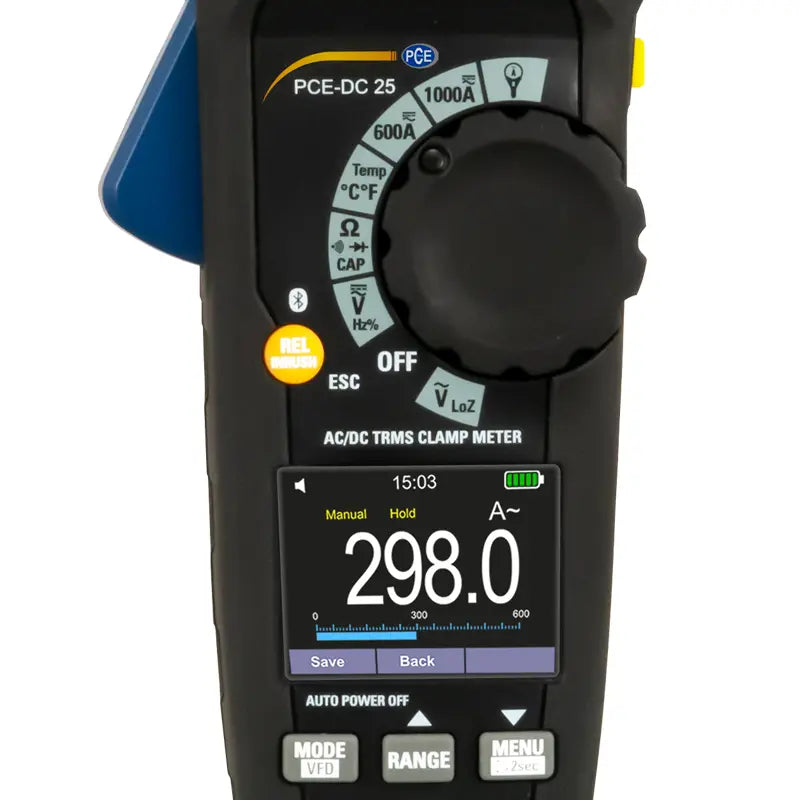

In addition to current measurement, the IoT meter can also measure voltages from 0… 1000 V AC/DC, resistances, frequencies and capacitances. The functions can be set using the rotary selector switch on the IoT meter. With the NCV function, the IoT meter can be used to determine the absence of voltage without contact. As soon as a voltage of 150 V AC is applied, this is indicated by an additional red LED. This function is active for every measuring function selected using the rotary selector switch. An LED lamp is integrated in the clamp meter for optimal illumination of the measuring point.
The IoT meter can be connected to an Android or iOS device via the Bluetooth interface. With the free app for the IoT meter, the measured values can be displayed, saved and further processed. The IoT meter thus covers a wide range of measuring tasks due to the multitude of functions.
In addition to current measurement, the IoT meter can also measure voltages from 0… 1000 V AC/DC, resistances, frequencies and capacitances. The functions can be set using the rotary selector switch on the IoT meter. With the NCV function, the IoT meter can be used to determine the absence of voltage without contact. As soon as a voltage of 150 V AC is applied, this is indicated by an additional red LED. This function is active for every measuring function selected using the rotary selector switch. An LED lamp is integrated in the clamp meter for optimal illumination of the measuring point.
The IoT meter can be connected to an Android or iOS device via the Bluetooth interface. With the free app for the IoT meter, the measured values can be displayed, saved and further processed. The IoT meter thus covers a wide range of measuring tasks due to the multitude of functions.

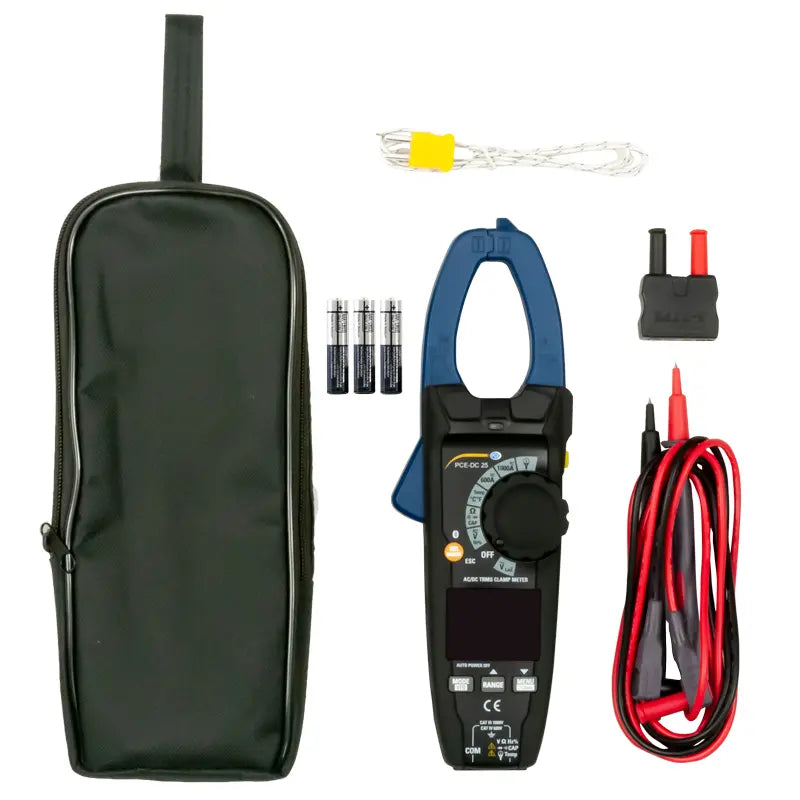

Delivery Scope
1 x IoT Meter PCE-DC 25
1 x Pair of test leads
1 x Type K thermocouple
1 x Thermocouple adapter
3 x 1.5 V AAA batteries
1 x Transport bag
1 x Instruction manual
1 x Pair of test leads
1 x Type K thermocouple
1 x Thermocouple adapter
3 x 1.5 V AAA batteries
1 x Transport bag
1 x Instruction manual
