Θερμοζυγός ακριβείας - 60 g - 0,0001 g - 0,001%

Κωδικός Τιμή Στοκ
PCE-MA 60XT €2.652,00 2-5 εργάσιμες


Τιμές χωρίς ΦΠΑ 24%

Specification


Measuring principle Gravimetric moisture determination
Weighing range (Max) 60 g
Readability 0.1 mg / 0.0001 g / 0.001 % humidity
Weighing electronics Electromagic force compensation cell
Repeatability Weight measurement plus-minus 0.0003g
Moisture measurement plus-minus 0.18 % (referred to 2 g sample)
Sample weight Min. 2 g / Max. 60 g

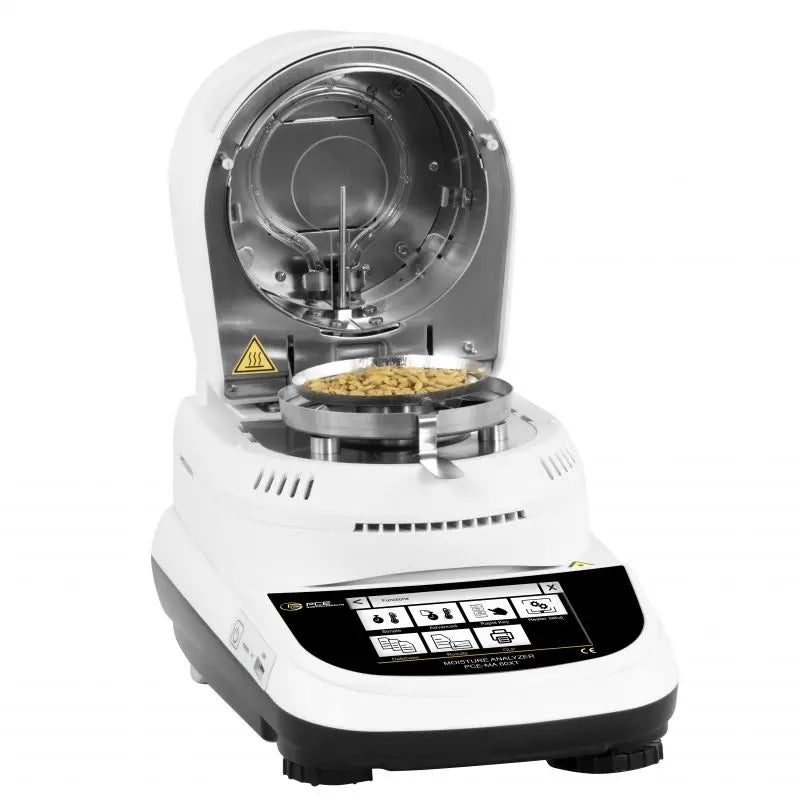

Sample area approx. Ø 100 mm / height max. 25 mm
Determination options Moisture content % / Dry content % / ATRO % / Weight
End of measurement no weight loss / time lapse / manual
Drying temperature range +35 ... +160 degreesC in 1degreesC steps
Heating profiles Standard / Fast / Mild / Steps
Heating element 400 Watt IR round heater
Databases 300 measurement protocols performed
Drying database for over 30 products
User database for 10 users

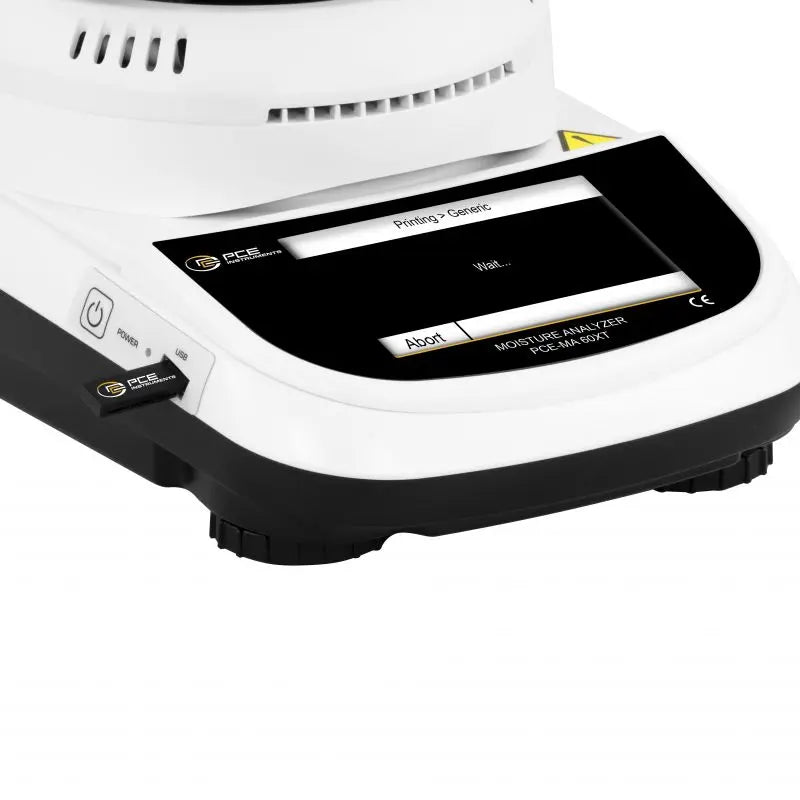

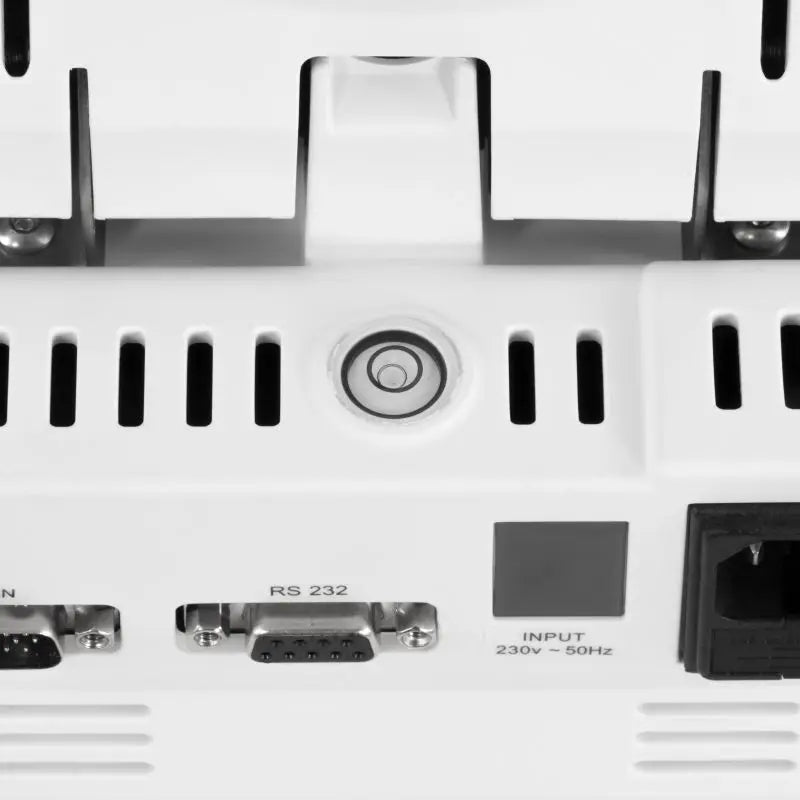

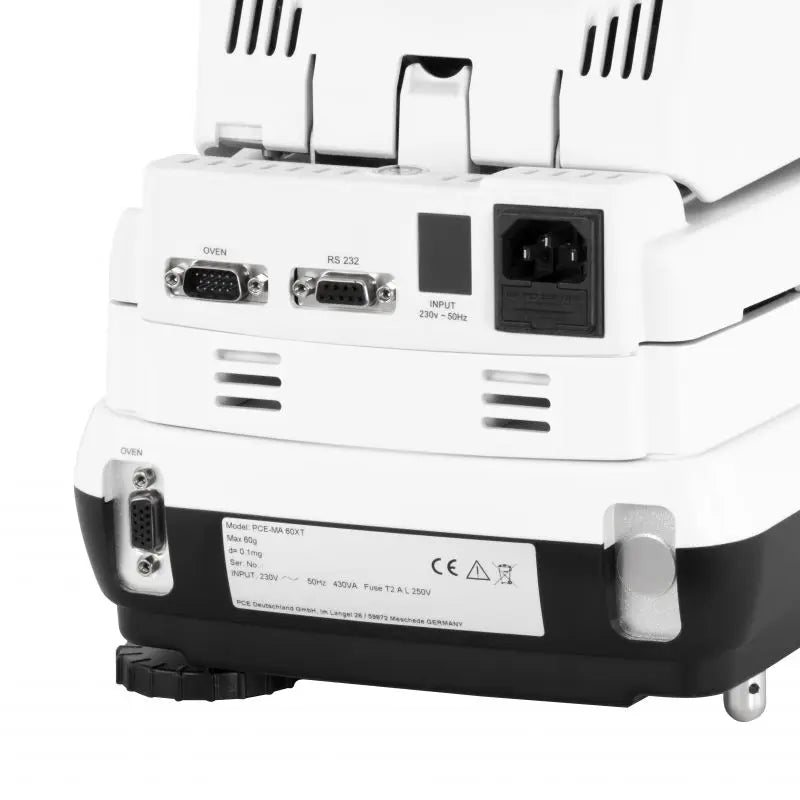

Interface RS-232 / USB-A for USB stick

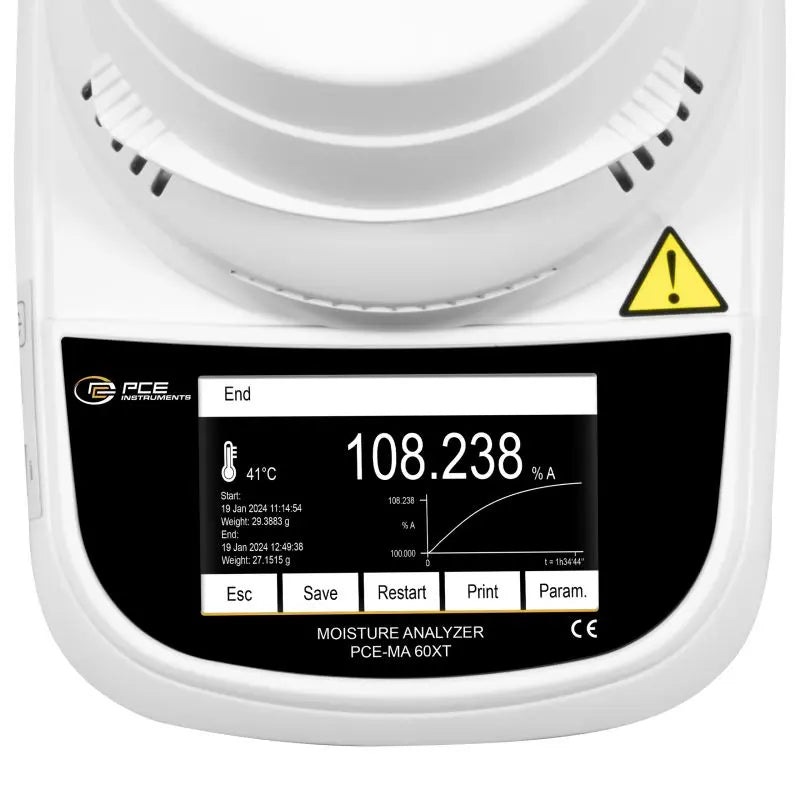

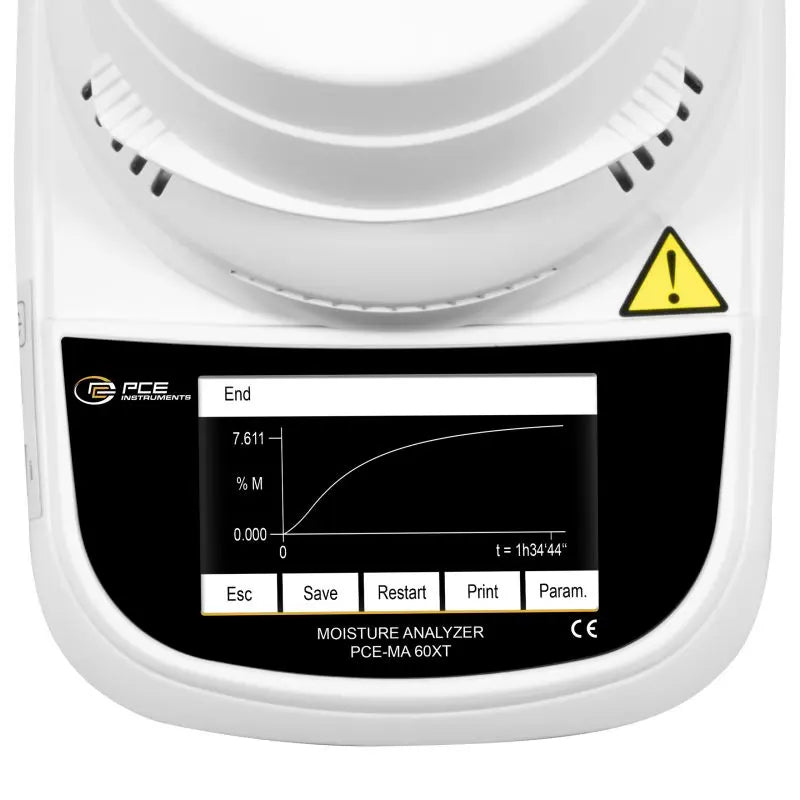

Display 5" touch color display
Menu language German / English / French / Italian / Spanish
Power supply 220 V / 50 Hz
PCE-MA 60XT-US 110 V / 50 Hz
Dimensions 345 x 215 x 235 mm
Weight 6,1 kg
Recommended calibration weight     50 g

Description

Precision moisture analyzer up to max. 60 g sample weight / measuring resolution 0.1 mg = 0.0001 g = 0.001 % moisture content
drying temperature up to 160°C / 5" touch color display / internal product database / measurement data can be saved as TXT file directly to USB stick

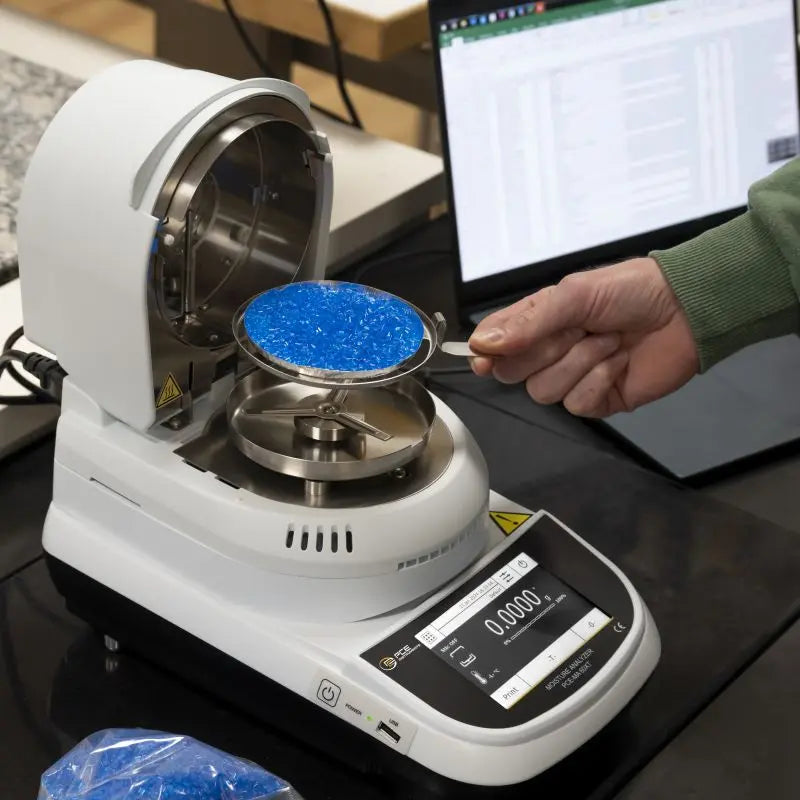

The precision moisture analyzer enables accurate and simple moisture determination in a wide range of materials. The sample is automatically weighed, dried and the weight loss is displayed as moisture content. This measuring principle does not require any time-consuming creation of characteristic curves and is immediately ready for use shortly after installation.

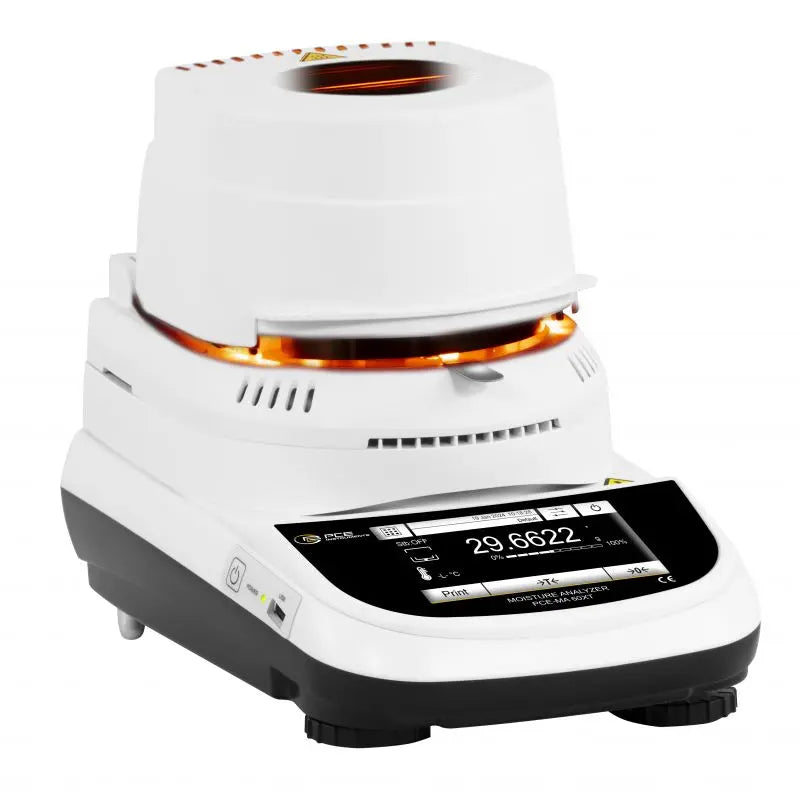

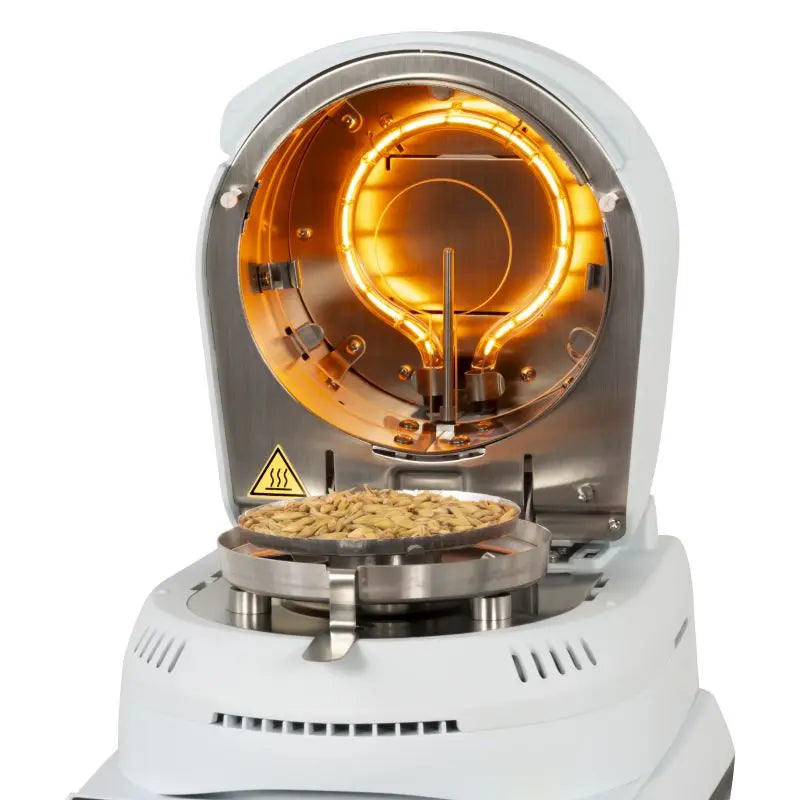

For the weighing task, the precision moisture analyzer has an electromagnetic load cell installed which registers the weight loss with a measuring resolution of 0.1 mg = 0.0001 g. For drying the sample, a moisture analyzer is installed in the sample chamber. To dry the sample, a 400 watt halogen round lamp is installed in the lid to ensure uniform heat distribution.

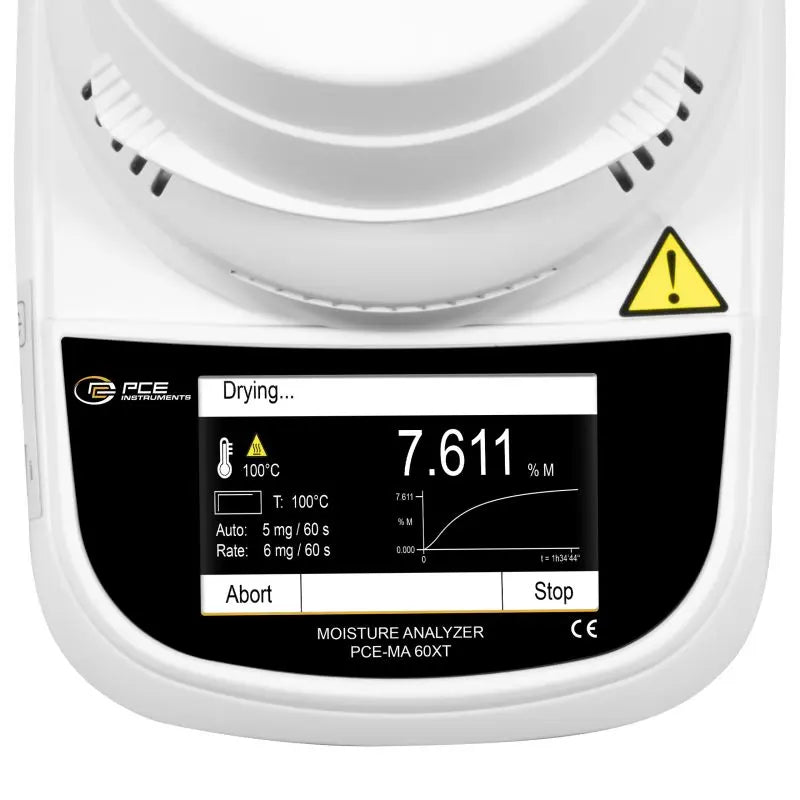

To avoid burning the sample, the user of the moisture analyzer can access the internal product database or set the drying temperature between 35 °C and 160 °C in 1 °C steps, product specific. The product database has preset drying parameters that can be easily expanded and changed by the user.

Delivery Scope

1 x moisture analyzer PCE-MA 60XT
10 x aluminum sample trays
1 x cold device plug
