Υγρασιόμετρο Θερμόμετρο Αισθητήρας
| Κωδικός | Output | Τιμή | Στοκ | ||
|---|---|---|---|---|---|
| PCE-P18-1A0E0 | 4 ... 20 mA | €192,00 | Με παραγγελία | ||
| PCE-P18-0A0E0 | RS-485 Modbus RTU | €180,00 | Με παραγγελία | ||
| PCE-P18-2A0E0 | 0 ... 10 V | €192,00 | 2-5 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Specification
| Technical Data | |
| Humidity | |
| Measuring range | 0 ... 100 % RH |
| Accuracy |
plus-minus 2 % (in the range 10% .... 90% RH) plus-minus 3 % (remaining range) |
| Hysteresis | plus-minus 1 % RH |
| Temperature | |
| Measuring range | - 20 ... 60 degreesC |
| Accuracy | plus-minus 0.5 % of measuring range |
| Temperature effect | plus-minus 25 % / 10 degreesC |
| Output current | 4 ... 20 mA |
| Max. connectable resistor at the output | ≤ 500 Ω |
| Supply voltage | 19 V ... 30 V DC |
| Performance | < 1.5 W |
| Setting the output size | via DIP - switch |
| Ambient temperature | - 30 degreesC ... 85 degreesC |
| Max. humidity | ≤ 95 % RH |
| Preheating | 15 minutes |
| Degree of protection | IP 65 |
| Mounting | Wall mounting |
| Dimensions (W x H x D) | 35 x 58 x 118 mm |
| Weight | 125 g |
Description

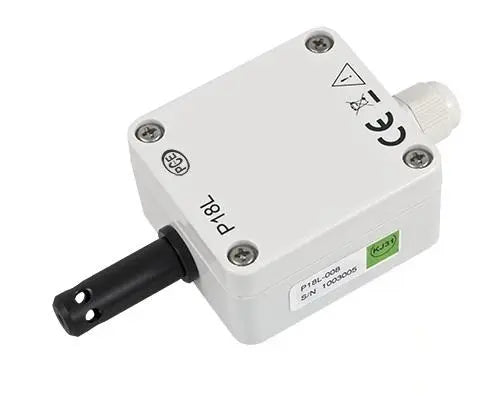

Relative Humidity Meter converts temperature or humidity to a 4 ... 20 mA signal / high precision / supply via current loop / wall mounting
The relative humidity meter was developed and constructed for the permanent monitoring of temperature or humidity. The compact dimensions of the relative humidity meter are the characteristics of this instrument. The measurement of the temperature and humidity is via a semiconductor component. Internally, the physical quantities to be measured are converted toa 4 ... 20 mA standard signal. The power of this measuring instrument isconnected to a DC voltage into a current loop and is thus ideally suited fordisplayswith transmitter power supply. But it can also be connected to the paperless recorder for long-term monitoring of environmentalconditions.
Delivery Scope
1 x Relative Humidity Meter PCE-P18L
1 x operating instructions
