Αισθητήρας Δόνησης KIT
| Acceleration | |
| Unit: m/s² | Range: 0.5 ... 199.9 m/s² Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: g | Range: 0.05 ... 20.39 g Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: ft/s² | Range: 2 ... 656 ft/s² Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point | 50 m/s² (160 Hz) |
| Speed | |
| Unit: mm/s | Range: 0.5 ... 199.9 mm/s Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: cm/s | Range: 0.05 ... 19.99 cm/s Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: inch/s | Range: 0.02 ... 7.89 inch/s Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point | 50 mm/s (160 Hz) |
| Expansion | |
| Unit: mm | Range: 1.999 mm Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: inch | Range: 0.078 inch Accuracy: plus-minus (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point |
0.141 mm (160 Hz) |
| Display | 82 x 61 mm / 3.22 in x 2.4" LCD with background light |

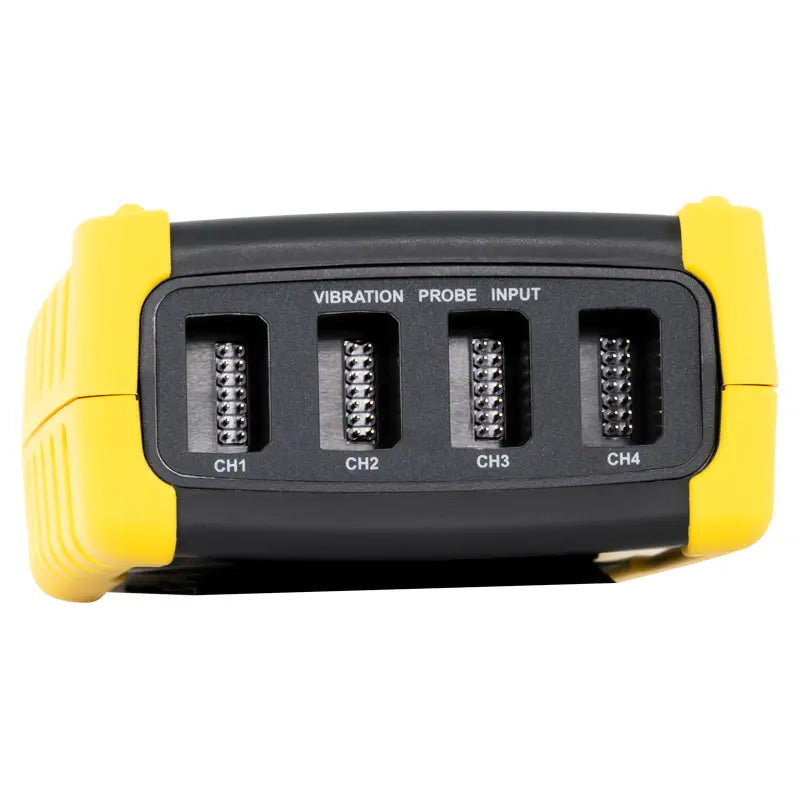

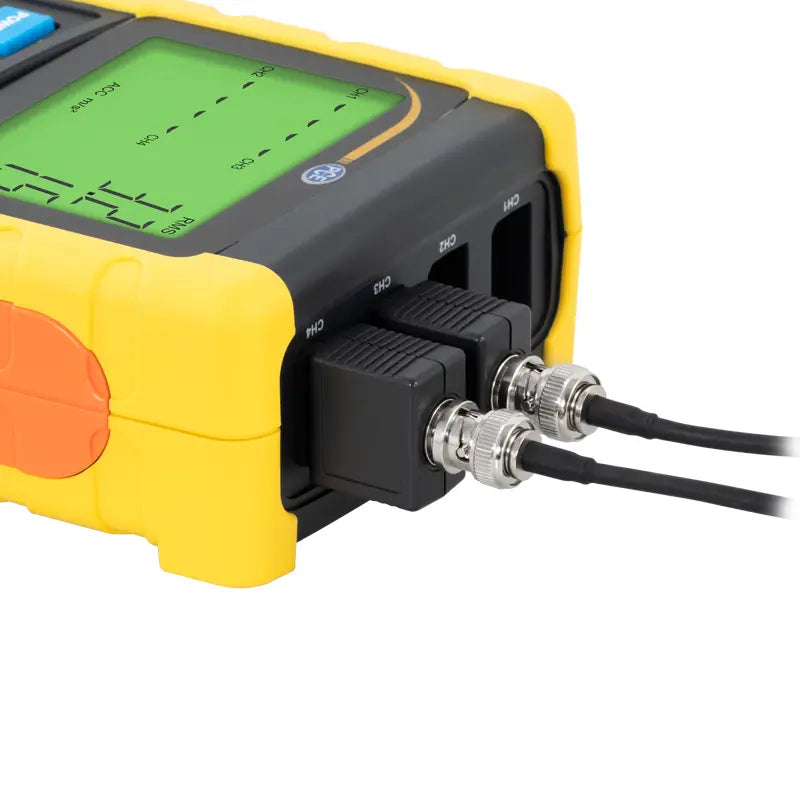

| No. of channels |
4 input channels |
| Measurement types |
Speed, acceleration, expansion |
| Unit of measurement |
Acceleration: m/s², g, ft/s² Speed: mm/s, cm/s, inches/s Expansion: mm, inches |
| Frequency range | 10 Hz ... 1 kHz |
| Peak hold | Acceleration, Speed: Measures / updates the max. value Expansion: Measures / updates the p-p value |
| Max hold | Acceleration, Speed: Measures / updates the max. value Expansion: Measures / updates the p-p value |
| Max hold reset | Push-button activation |
| Zero function | Push-button activation for acceleration-(RMS) measurements |
| Datalogger sampling rate |
Automatic: 1 ... 3,600 seconds Manually: at the push of a button |

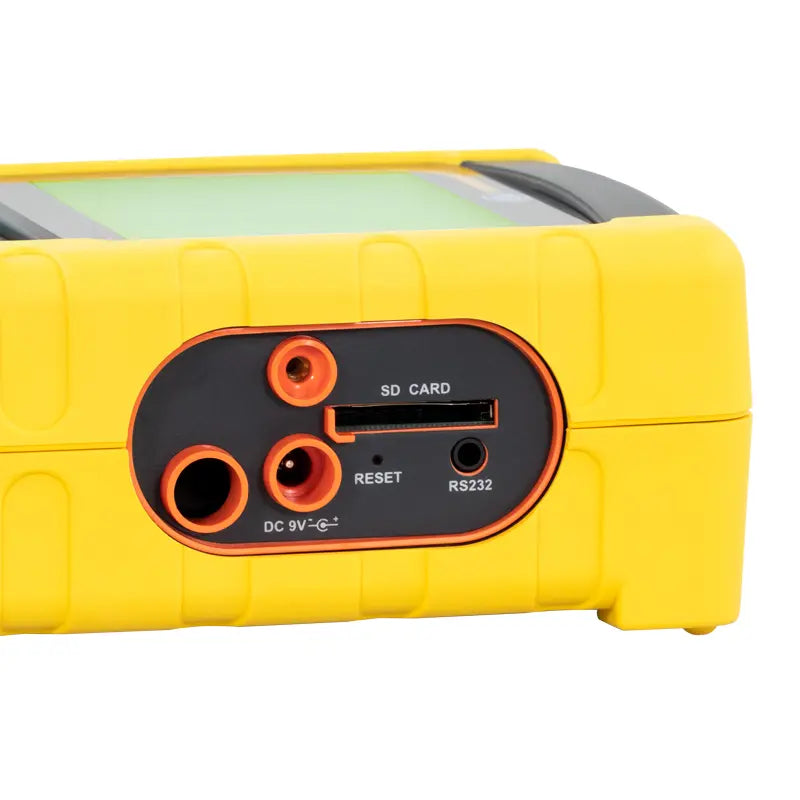

| Memory card |
SD memory card (1 ... 16 GB) |
| Data hold function | Holds displayed measured value |
| Audio output point |
Mini stereo jack socket Max. voltage: 2 V Output resistance: 100 Ohm |
| Operating temperature | 0 ... +50 degreesC / 32 ... 122 degreesF |
| Operating humidity |
85 % r.H. max. |
| Power supply |
8 x 1.5 V AA batteries or 9 V power adapter |
| Power consumption |
NiMH battery 3 x 2700 mAh |
| Operating / charging time |
Normal operation: ca. 12 mA dc With the background lighting switched off and the data logger switched on: ca. 35 mA dc |
| Weight | Meter: 515 g / / 1.1 lbs Probe with cable and magnetic base: 99 g / 0.2 lbs |
| Dimensions | Main unit: 203 x 76 x 38 mm / 8.0 x 3.0 x 1.5" Probe: 16 x 37 mm / 0.6 in x 1.5" in diameter Cable length: 1.2 m / 3.9 ft |

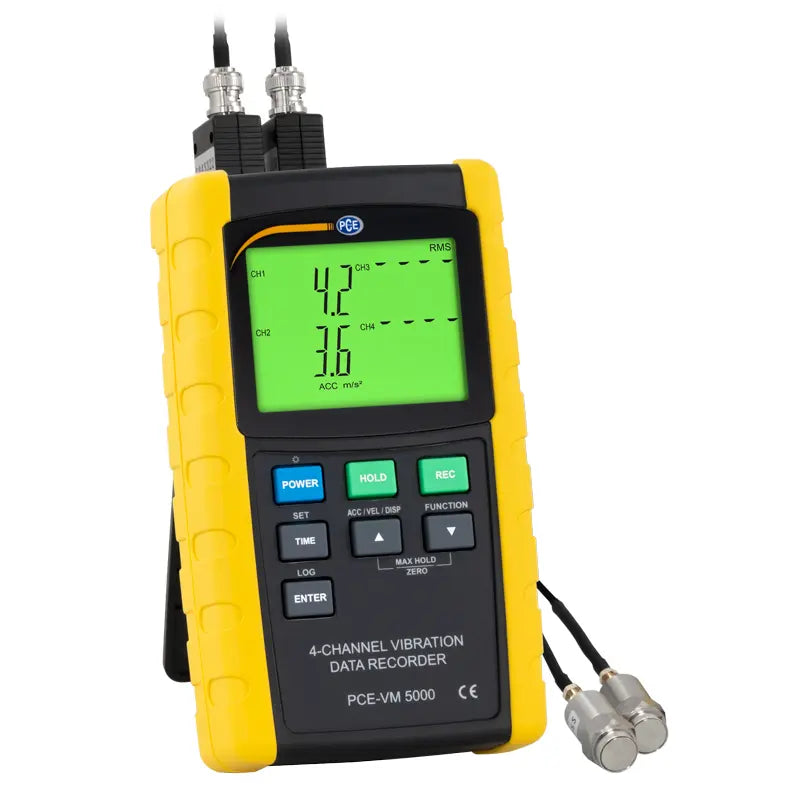

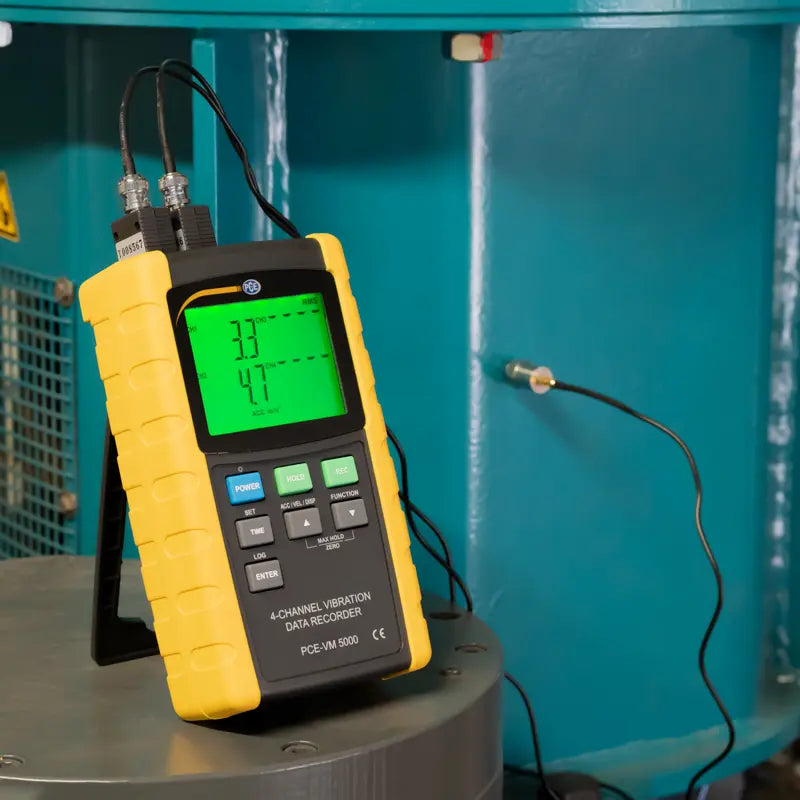

Vibration Meter PCE-VM 5000
display and storage of acceleration, speed and displacement measurement of vibrations /

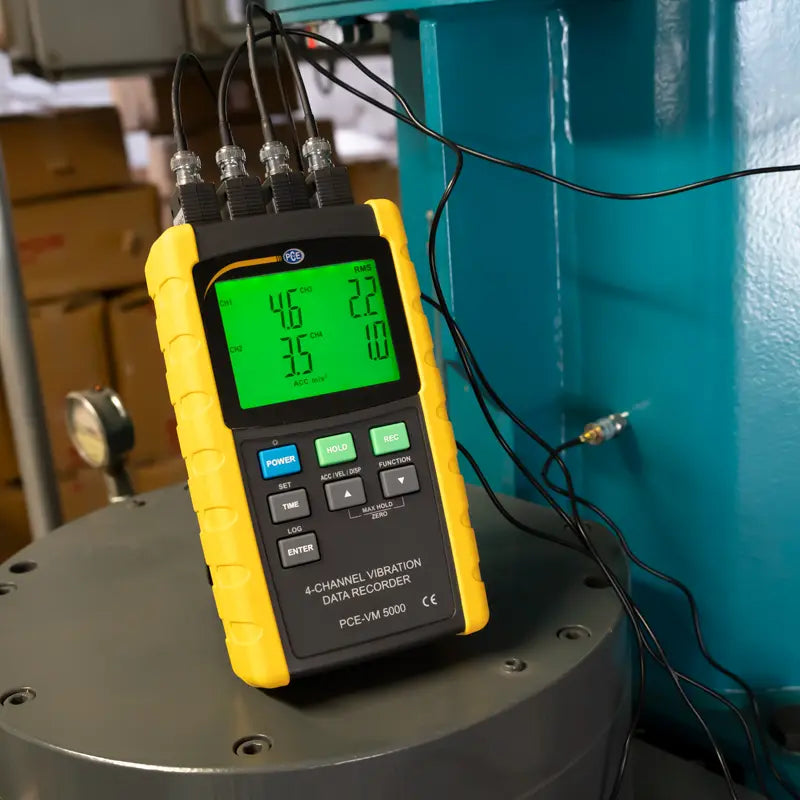

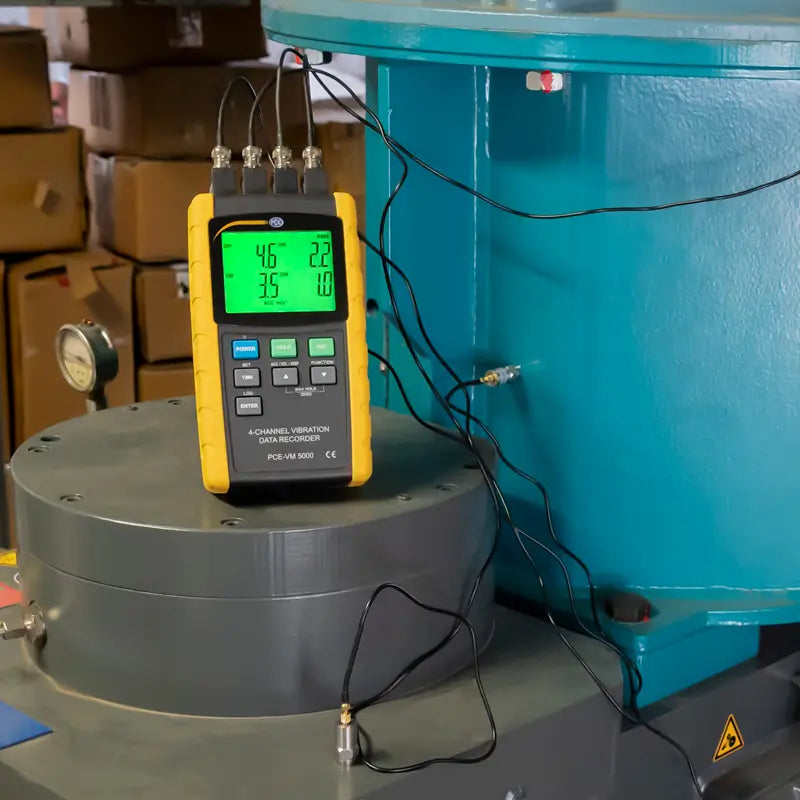

4-channel vibration Vibration Meter indicates 4 channels of simultaneous vibration metering through remote vibration sensors
display and storage of acceleration, speed and displacement measurement of vibrations /
4-channel vibration Vibration Meter indicates 4 channels of simultaneous vibration metering through remote vibration sensors

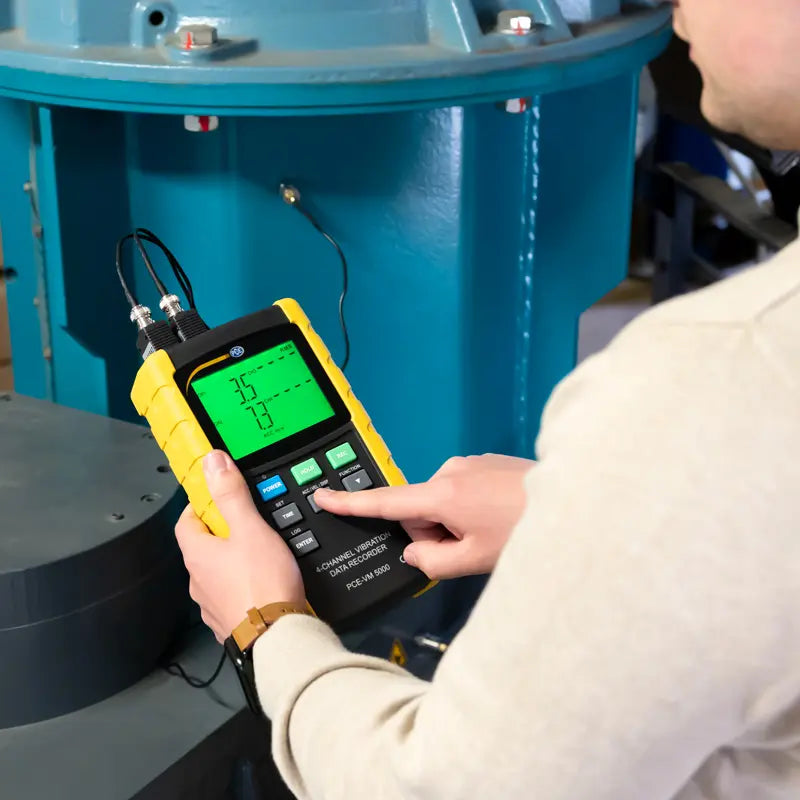

The 4-channel PCE-VM 5000 Vibration Meter is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Vibration Meter is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Vibration Meter indicates a large, lighted LCD display for four channels of simultaneous vibration measurements from remote vibration sensors. The Vibration Meter measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement. The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Vibration Meter you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be choosen.
- Acceleration, speed, and displacement
- Long-lasting battery
- Precise measurement
- Large, LCD display with background lights
- Different measurement units
- Data storage on SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data on the PC with Excel
- Long-lasting battery
- Precise measurement
- Large, LCD display with background lights
- Different measurement units
- Data storage on SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data on the PC with Excel

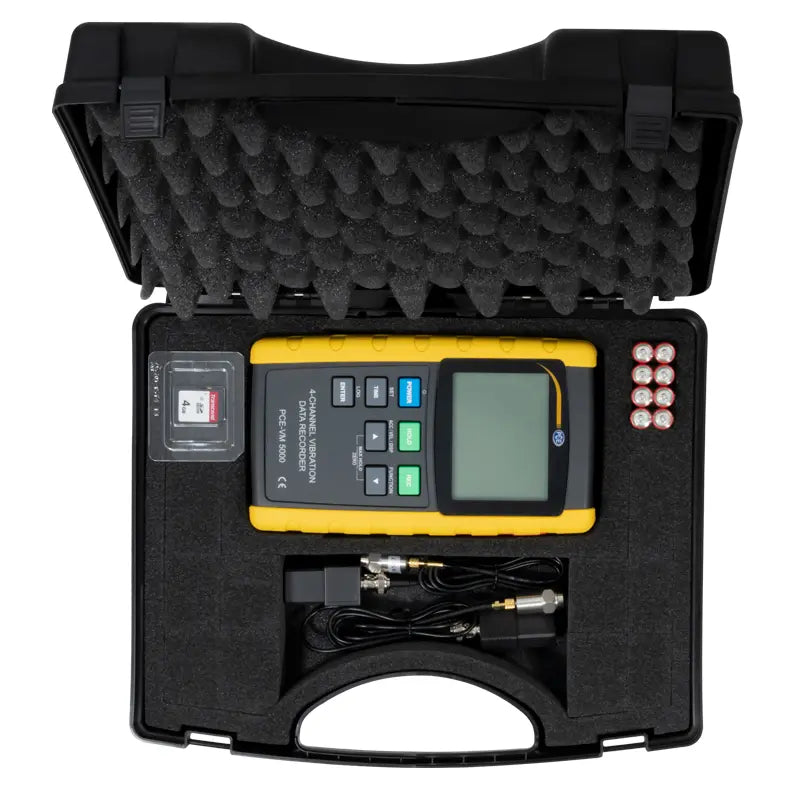

1 x Vibration Meter PCE-VM 5000-KIT

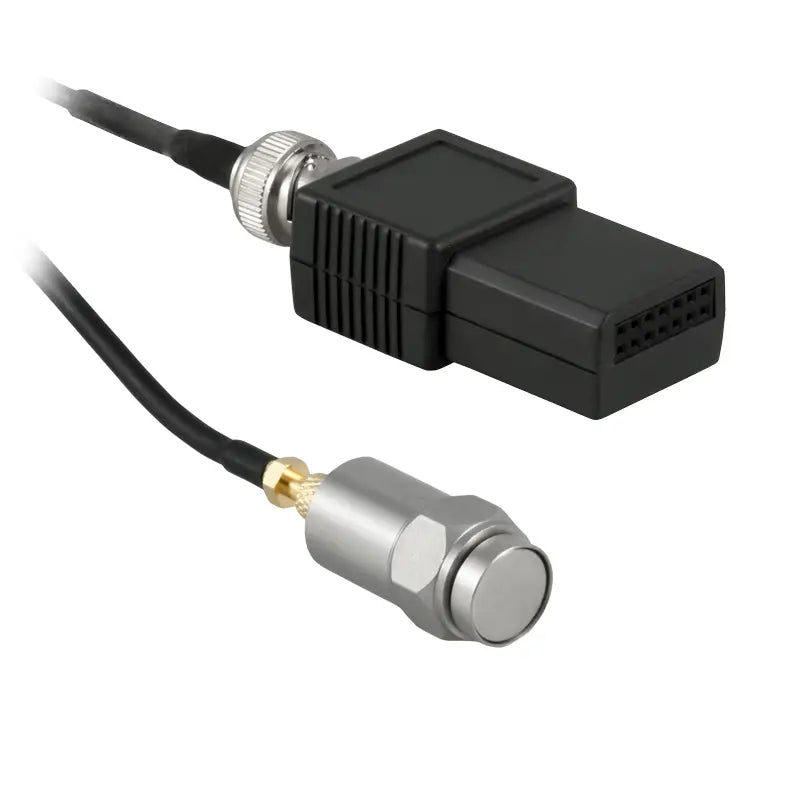

2 x Sensor VB-83 with cable and magnetic base (1.2m / 3.9 ft)
2 x Vibration sensor VB-84
8 x 1.5V AA batteries
1 x Transportation case
1 x Instruction manual
2 x Sensor VB-83 with cable and magnetic base (1.2m / 3.9 ft)
2 x Vibration sensor VB-84
8 x 1.5V AA batteries
1 x Transportation case
1 x Instruction manual
