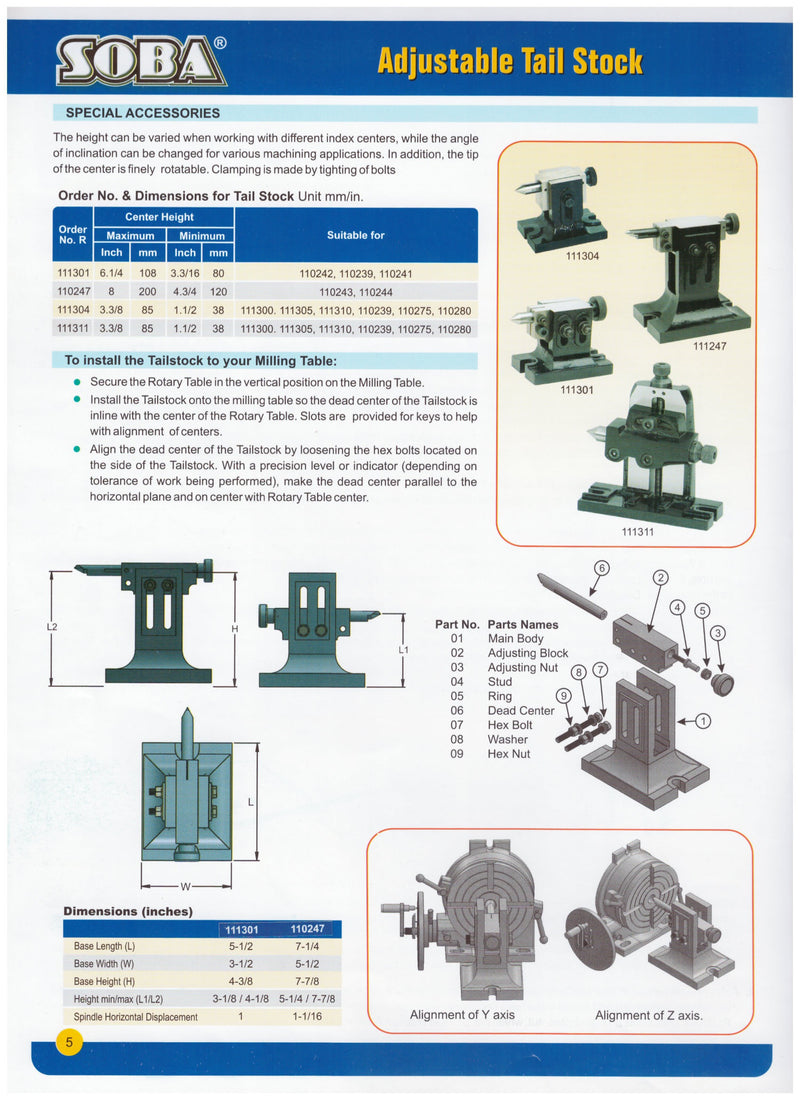

The height can be varied when working with different index centers, while the angle of inclination can be changed for various machining applications. In addition, the tip of the center is finely rotatable. Clamping is made by tighting of bolts.
To install the Tailstock to your Milling Table:
• Secure the Rotary Table in the vertical position on the Milling Table.
• Install the Tailstock onto the milling table so the dead center of the Tailstock is inline with the center of the Rotary Table. Slots are provided for keys to help with alignment of centers.
• Align the dead center of the Tailstock by loosening the hex bolts located on the side of the Tailstock. With a precision level or indicator (depending on tolerance of work being performed), make the dead center parallel to the horizontal plane and on center with Rotary Table center.
Προσφορά
| SKU | Ύψος | Τραπέζια | Διαθεσιμότητα |
Τιμή
+ΦΠΑ
|
Καλάθι
Προσφορά
|
|---|---|---|---|---|---|
| 111304 | 38-85 mm | Ø75-110 mm | 1 διαθέσιμο |
+ΦΠΑ
€59,80
|
|
| 111311 | 80-108 mm | Ø 75-110 mm | 2 διαθέσιμα |
+ΦΠΑ
€72,00
|
|
| 111301 | 80-108 mm | Ø110-150 mm | 3 διαθέσιμα |
+ΦΠΑ
€78,00
|
|
| 110247 | 80-108 mm | Ø200-250 mm | Κατόπιν Παραγγελίας |
+ΦΠΑ
€114,00
|
