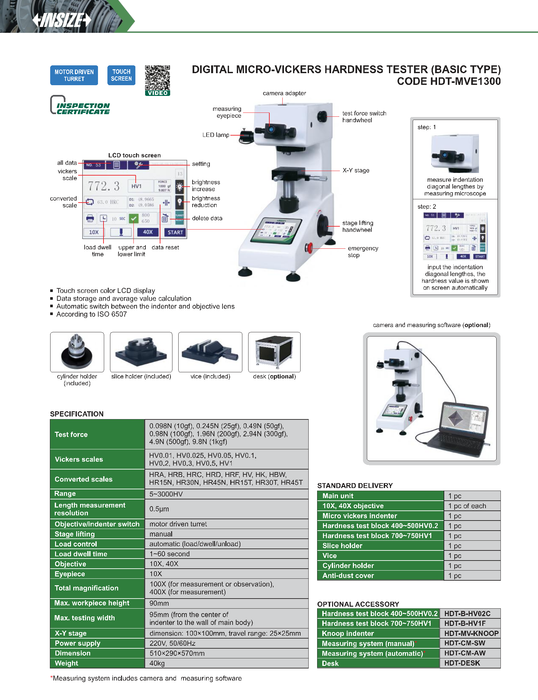

Technical Specifications
-
Vickers scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
-
Compatible scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
-
Measurement range: 5–3000HV
-
Length measurement resolution: 0.5μm
-
Lens/indenter system: motorized rotating turret
-
Table lifting: manual
-
Load control: automatic (loading/dwell/unloading)
-
Load dwell time: 1–60 seconds
-
Lenses: 10X, 40X
-
Total magnification: 100X (observation), 400X (measurement)
-
Maximum sample height: 90mm
-
Maximum measuring distance: 95mm (from the center of the indenter to the unit body wall)
-
X-Y Table: 100×100mm, travel 25×25mm
-
Power supply: 220V, 50/60Hz
-
Dimensions: 510×290×570mm
-
Weight: 40kg
Description

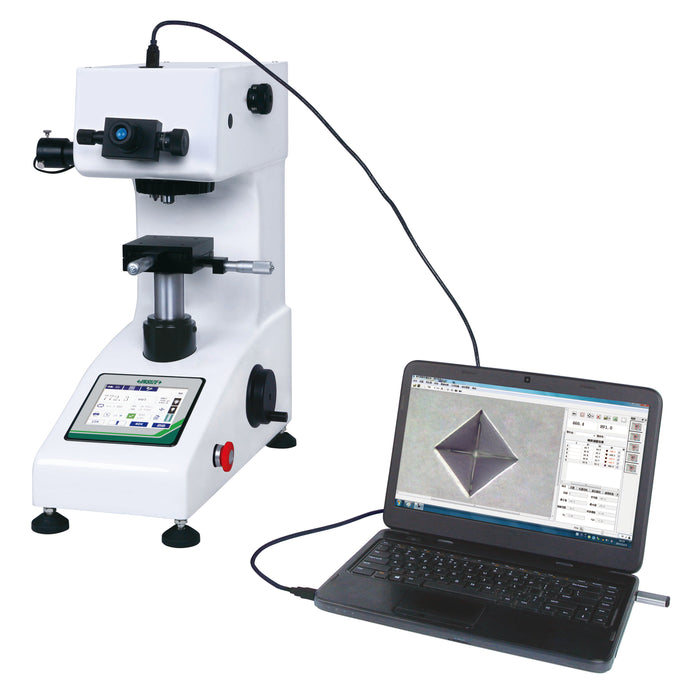

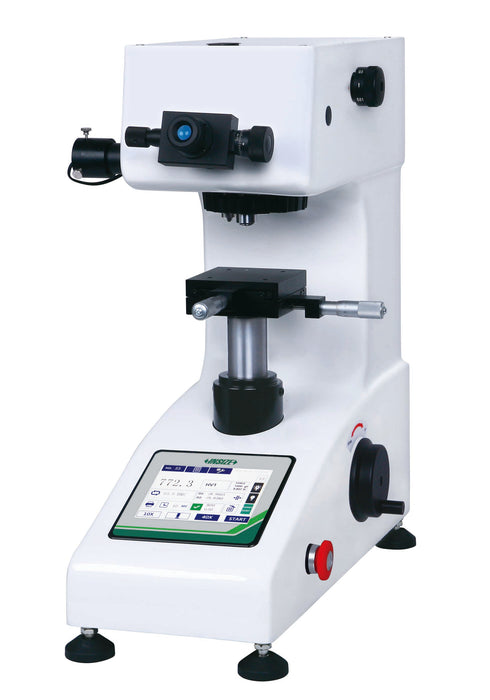

Digital micro-Vickers type hardness tester with color touchscreen, automatic data storage, and average value calculation. Features a motorized rotating turret for switching between lens and indenter, as well as an automatic load control system. Supports a wide range of hardness scales and provides precise measurement capability for microhardness testing according to ISO 6507.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
