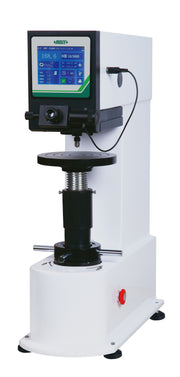

Digital Brinell Hardness Tester - Touchscreen - Microscope
HDT-MB
| Κωδικός | Rotation | Τιμή | Στοκ | ||
|---|---|---|---|---|---|
| HDT-MB710 | automatic | €6.340,00 | 5-8 εργάσιμες | ||
| HDT-MB610 | manual | €5.416,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

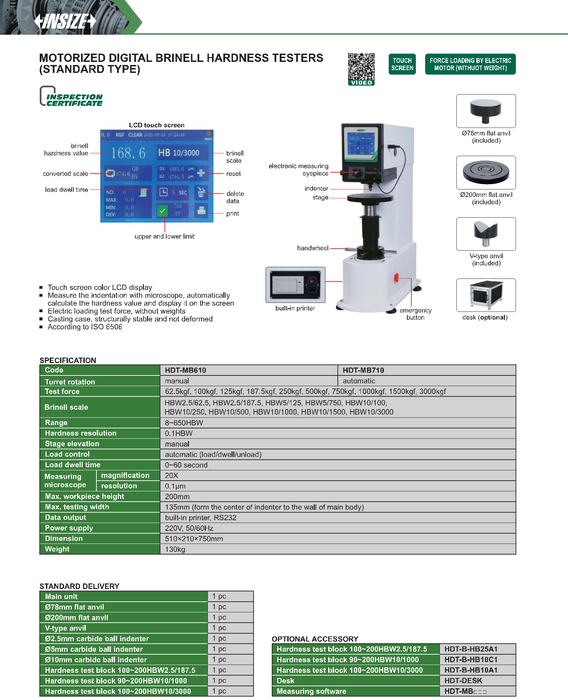

Technical Specifications
-
Brinell scale: HBW2.5/62.5 to HBW10/3000
-
Hardness reading: 0.1HBW
-
Platform lift: manual
-
Load control: automatic (loading/dwell/unloading)
-
Load dwell time: 0–60 seconds
-
Microscope magnification: 20X
-
Microscope reading: 0.1μm
-
Maximum specimen height: 200mm
-
Maximum test depth: 135mm
-
Data output: built-in printer, RS232
-
Operating current: 220V, 50/60Hz
-
Dimensions: 510×210×750mm
-
Weight: 130kg
Description
Motorized digital Brinell hardness tester, with LCD touch screen, electric load application without weights, and automatic hardness value calculation via microscope. Compliance with ISO 6506.
