| Visual speed | |
| Measuring range | 60 rpm ... 999999 rpm |
| Resolution | 1 rpm |
| Accuracy | 0.001 % |
| General technical data | |
| Frequency | 1 ... 16666.66 Hz |
| Display type | LCD with illumination |
| Memory medium | Internal memory |
| Memory capacity | 5 values |
| Operating time | 8 h |
| Light intensity | 1500 lx |
| Phase shift | -360 ... 360 ° |
| Light source | 9 LEDs |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 5 V |
| Weight | 307.5 g |
| Dimensions (L x W x H) | 210 x 90 x 57 mm |
| Operating conditions | -10 ... 55 °C , 0 ... 85 % r.H |
| Storage conditions | -10 ... 55 °C , 0 ... 85 % r.H |

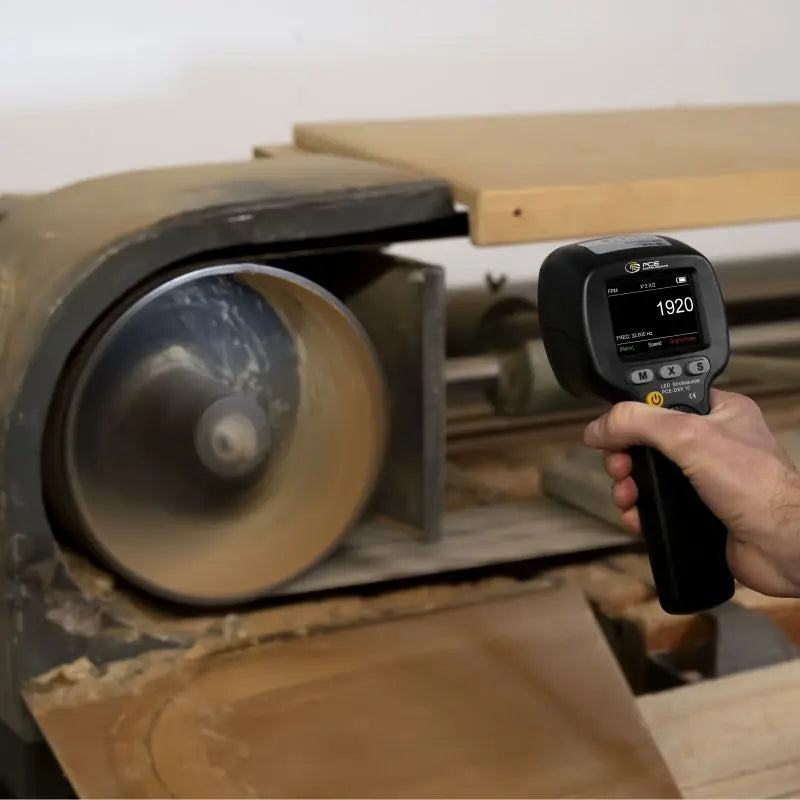

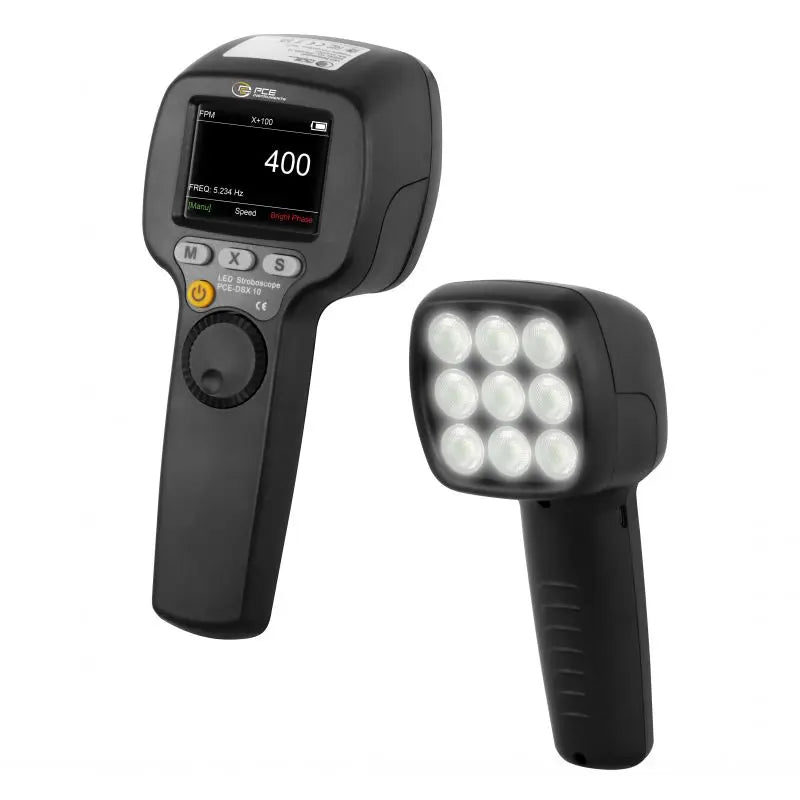

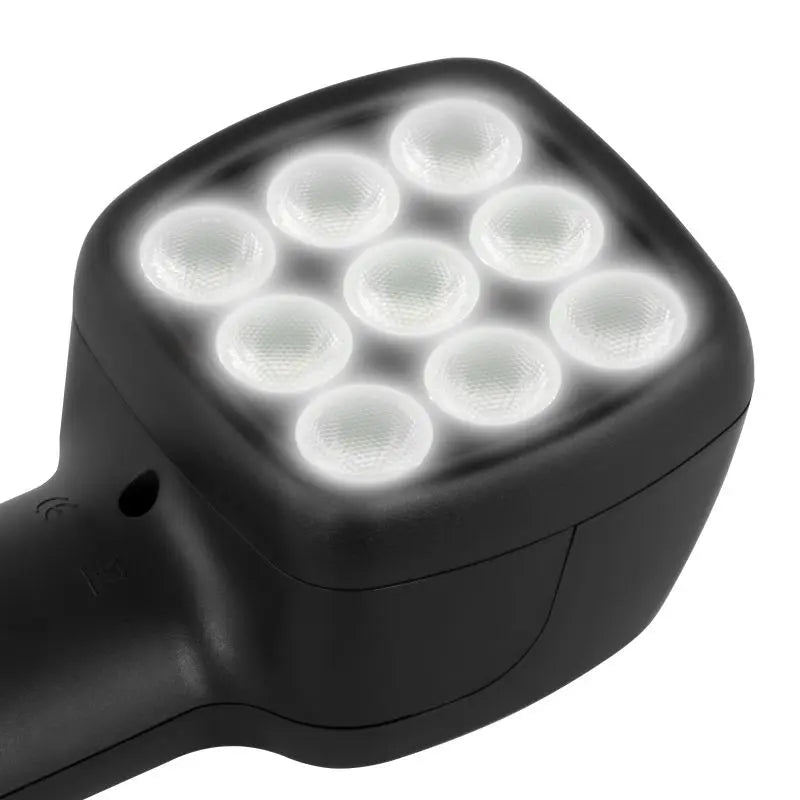

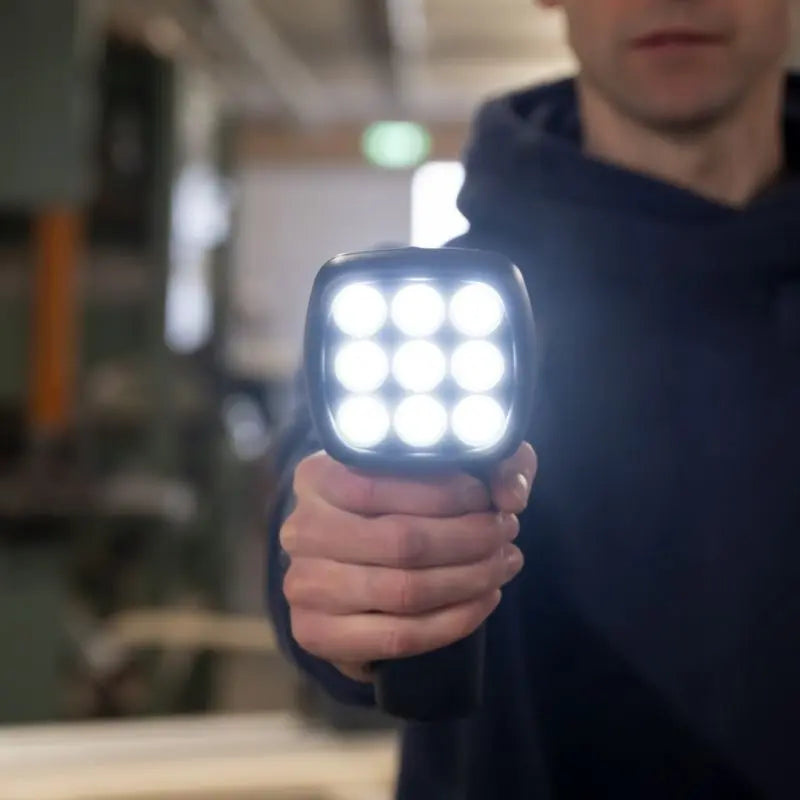

The rev counter utilises the so-called " stroboscope effect" to analyse fast movements, vibrations or periodic processes. With the help of 9 high-intensity LEDs, the speed measuring device generates short flashes of light with an illuminance of up to 1500 lx. These flashes of light are emitted in synchronisation with the frequency of the movement to be monitored until the object appears to stand still to the observer. The digital tachometer allows the user to focus on specific phases or features of the movement in order to detect defects or irregularities in rotating or oscillating parts.

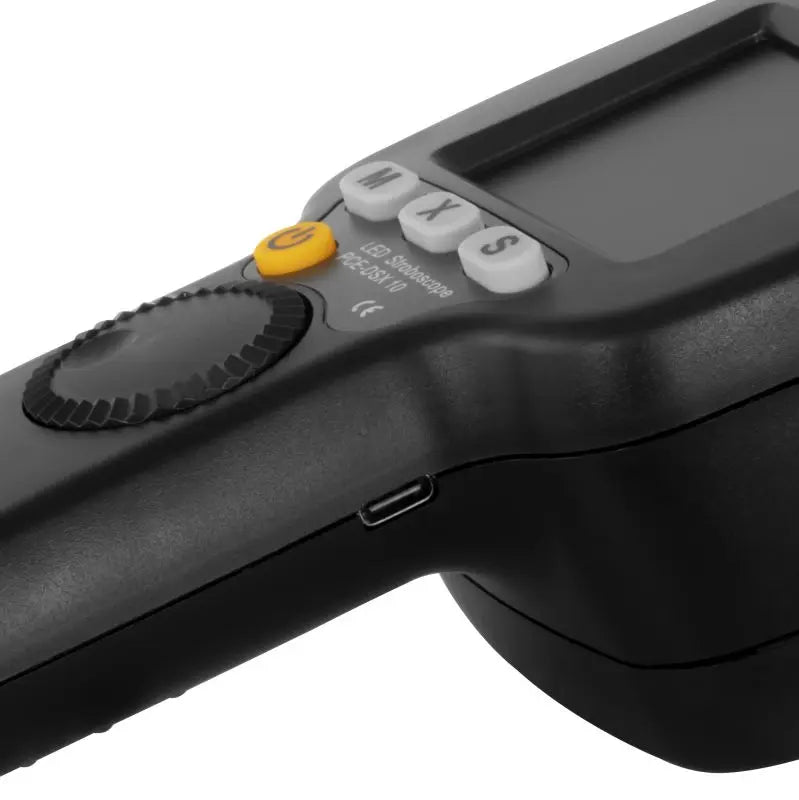

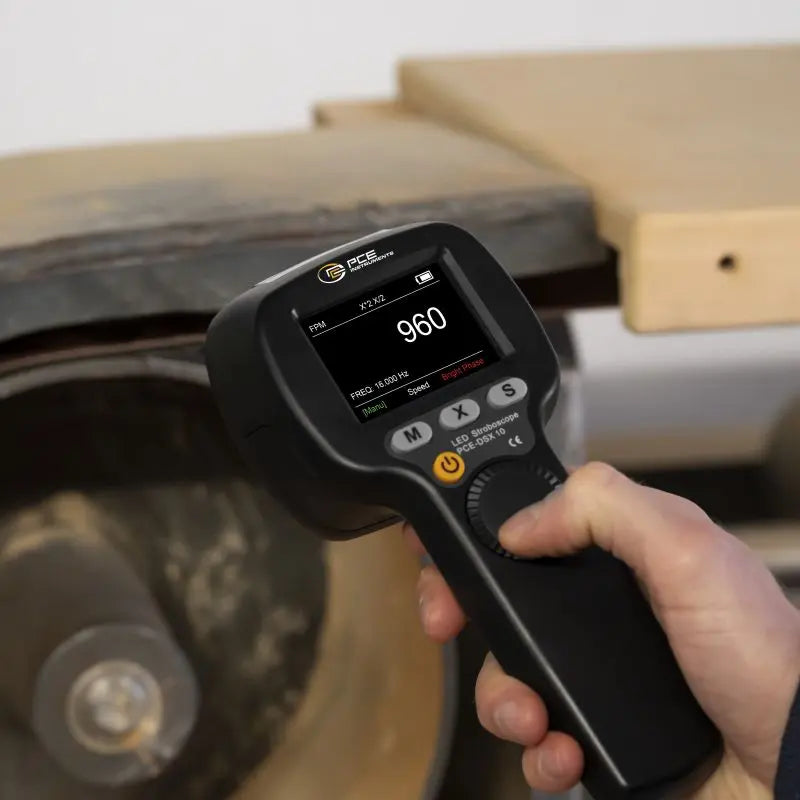

The flash frequency can be read in both FPM (flashes per minute) and Hz (Hertz). The digital tachometer has a memory for up to 5 preset flash frequencies so that frequently used settings can be repeated quickly and effortlessly. The one-handed operation makes it easy to control and adjust the settings without complicated menus. The flash frequency is fine-tuned step-by-step on the speedometer using a rotary dial. For quick adjustment of the flash frequency, the tachometer offers options in steps of 10 and 100 as well as the option to double or halve the flash frequency.
With an LED brightness setting of 10 to 100 percent, users can adjust the light intensity to suit their needs, whether for detailed analysis or wider illumination. The tachometer also offers a phase shift from -360° to +360°. The tachometer has an internal rechargeable battery with an operating time of up to approx. 8 hours.
1 Year Warranty
PCE Instruments Factory
The PCE Deutschland GmbH, known as PCE Instruments, is a German company based in Meschede, which from 1999 to the present has established itself internationally as a reliable manufacturer and supplier of measuring, testing, and weighing instruments. The company offers an exceptionally wide range of instruments – from vibration, humidity, noise, and temperature meters to precision scales, analyzers, sensors, and data loggers – covering every need in industry, laboratories, and research.
PCE Instruments products are used in a wide range of sectors such as industrial production, quality control, equipment maintenance and assurance, environmental measurement, energy inspection, as well as education and scientific research. With a combination of know-how, reliability, and flexibility, the company provides complete solutions that ensure accurate results and contribute to improving measurement and testing processes in every professional sector.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of PCE Instruments in Greece since 2015. We have a large variety of Pce products in stock, which is continuously increasing. In addition, we can support the entire range of its catalog, which includes more than 5,000 different product codes.
In our store we provide technical support for all PCE Instrumentrs products via trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
All of its products meet European specifications, following various international quality and safety standards.
