Machining Materials
- (P) - Steels - Alloy Steels (Steel - Alloy Steel)

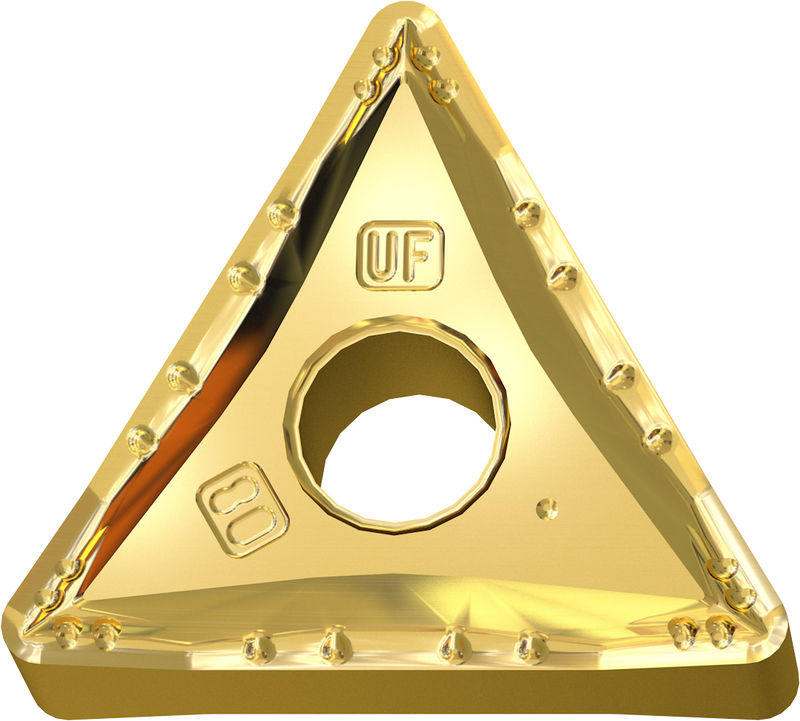

Chipbreaker
- (UF) - Geometry specially designed for finishing on steels. It features a small rake angle (rake angle) and is available with small cutting radii (RE). Suitable for small cutting depths (Ap) and low feeds (Fn). Ensures excellent surface quality.
Grade
- YG3115 – New grade for high machining speeds on steels (P15–P25). CVD MT-TiCN–Al₂O₃ coating. Ideal for mass production with stable tool life and minimization of built-up edge formation.
Feed
- Fn = 0.05~0.25 mm/rev
Cutting Speed
- (P1-5) - Vc=180~500 m/min
- (P5-9) - Vc=170~450 m/min
- (P10-11) - Vc=60~300 m/min
Turning inserts from YG1, a leading cutting tool manufacturer from Korea. The choice of the appropriate insert depends on the chipbreaker, i.e., the geometry that helps in breaking and removing the chip, as well as the grade, which describes the microstructure and coating of the insert and directly affects hardness and fracture toughness. The cutting conditions (speed, feed, depth) must be carefully defined to achieve maximum performance and tool life.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.
| SKU | Cutting Depth (mm) | Radius (mm) | Grade | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| TNMG160404-UF-YG3115 | 0.5~2.5 | 0.4 | YG3115 | 28 available |
+VAT
€5,90
|
|
| TNMG160408-UF-YG3115 | 1.0~2.5 | 0.8 | YG3115 | 5-8 business days |
+VAT
€5,90
|
