Technical Specifications

• Vickers scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

• Scale conversion: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

• Measurement range: 5–3000HV

• Length resolution: 0.025μm

• Objective lenses: 10X and 40X

• Observation lens: 10X

• Total magnification: 10X (observation/measurement), 400X (measurement)

• Table lifting: manual

• Load control: automatic (loading/holding/unloading)

• Loading time: 1–60 seconds

• Maximum sample height: 90mm

• Maximum sample width: 95mm (from the center of the indenter to the body wall)

• X–Y travel: 100×100mm, movement range: 25×25mm

• Built-in printer

• Power supply: 220V, 50/60Hz

• Dimensions: 510×290×570mm

• Weight: 40kg

• Includes:

  • Main unit

  • Objective lenses 10X, 40X

  • Micro Vickers indenter

  • Hardness test block 400–500HV0.2

  • Hardness test block 700–750HV1

  • Cutting base

  • Vise

  • Roller base

  • Anti-vibration base

Description

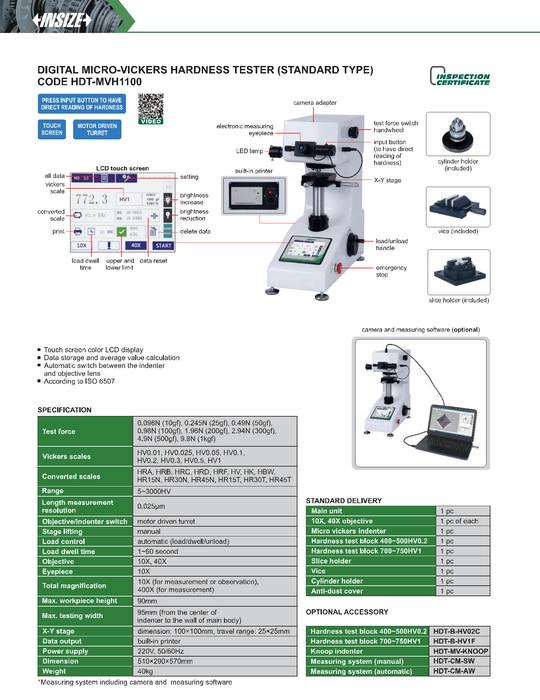

Digital Micro-Vickers hardness tester with LCD touchscreen, automatic switching between indenter and objective lens, and capability to convert results into multiple hardness scales. Suitable for small samples, with a maximum height of 90mm and width of 95mm.
