Technical Specifications
-
Adjustable tool head
-
Multi-purpose – suitable for universal use
-
Head rotation up to ±90°
-
Also suitable for collar machining
-
Increased tip service life due to the ability to rotate in 8 positions
-
Grinding speed: up to 200 m/min
-
Feed: up to 0.2 mm/revolution
-
Recommended allowable overhang:
-
0.01 mm (approximately Rz 10) or
-
0.02 mm (approximately Rz 20)
-
-
Use of cooling lubricant is recommended
-
The diamond tip is not included in the standard delivery
Description

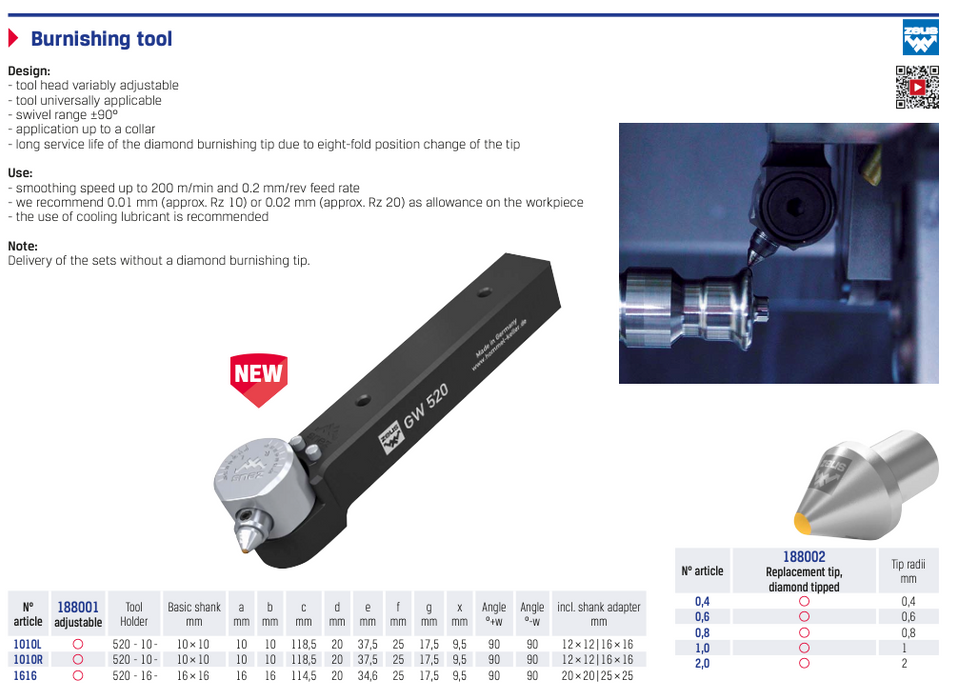

The GW 520 grinding tool is used for finishing and smoothing metal surfaces through plastic deformation with a diamond tip. The head is adjustable ±90° and suitable for various types of lathes, including collar machining. It allows high speeds and long service life due to the ability to rotate the diamond tip in 8 different positions. The tool is supplied without the diamond tip, which is sold separately in various radii.
| SKU | Height | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|
| 188001 1010L | 10x10 mm | On Order |
+VAT
€890,00
|
|
| 188001 1616 | 16x16 mm | On Order |
+VAT
€936,00
|
