Technical Specifications

• Accuracy: ±6HLD (when HLD=800)

• Impact type: D

• Hardness scales: HLD, HRA, HRB, HRC, HB, HS, HV, MPa

• Measurement range:

  • 170–960HLD

  • 7.8–88.5HRA

  • 12.1–40HRB

  • 17.4–71HRC

  • 18–1027HB

  • 3.9–112HS

  • 42–1220HV

  • 89–3300MPa

• Reading: 1HV, 0.1HRA, 0.1HRB, 0.1HRC, 1HB, 0.1HS, 1MPa

• Applicable materials: Cast steel, tool steel, stainless steel, gray cast iron, malleable cast iron, cast aluminum, brass, bronze, copper, forged steel

• Output: USB and Bluetooth

• Operating temperature: –20°C to +45°C

• Power supply: Rechargeable Li-ion battery 3.7V

• Dimensions: 88×30×20mm

• Weight: 45g

• Includes:

  • Main unit

  • D hardness test block

  • Support ring

  • Cleaning brush

  • Loading rod

  • USB cable and software

Description

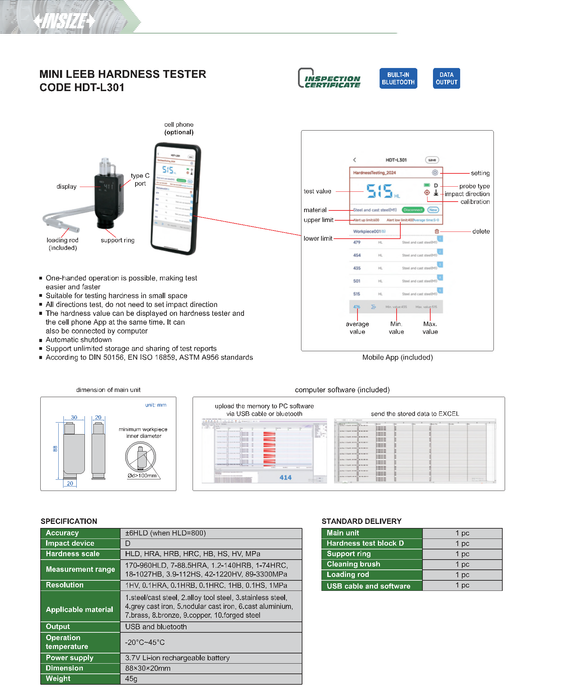

Mini portable Leeb hardness tester suitable for hardness measurement in small spaces and in any direction. It features a value display screen, Bluetooth and USB for connection to a computer or mobile, as well as an auto power-off function.
