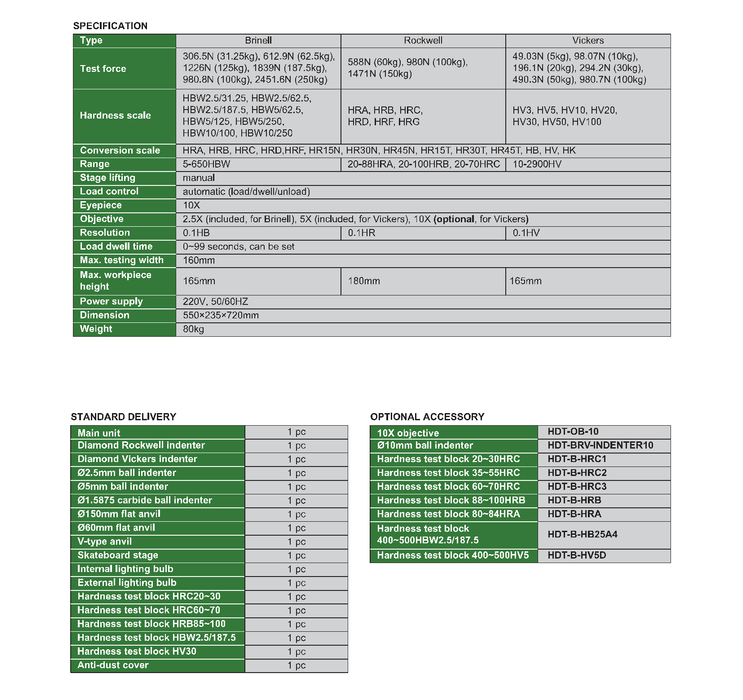

Technical Specifications

• Type: Brinell, Rockwell, Vickers

• Test Force:

  • Brinell: 306.5N to 2451.6N (31.25kgf to 250kgf)

  • Rockwell: 588N, 980N, 1471N (60kgf, 100kgf, 150kgf)

  • Vickers: 49.03N to 980.7N (5kgf to 100kgf)

• Conversion scales: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV, HK
• Range:

• • Brinell: 5–650HBW

  • Rockwell: 20–88HRA, 20–100HRB, 20–70HRC

  • Vickers: 10–2900HV

• Stage lift: manual

• Load control: automatic (loading/dwell/unloading)

• Magnifying lens: 10X

• Lenses:

  • Brinell: 2.5X (included)

  • Vickers: 5X (included), 10X (optional)

• Reading:

  • Brinell: 0.1HB

  • Rockwell: 0.1HR

  • Vickers: 0.1HV

• Load dwell time: 0–99 seconds, adjustable

• Maximum test depth: 160mm

• Maximum specimen height:

  • Brinell & Vickers: 165mm

  • Rockwell: 180mm

• Operating current: 220V, 50/60Hz

• Dimensions: 550×235×720mm

• Weight: 80kg

Description

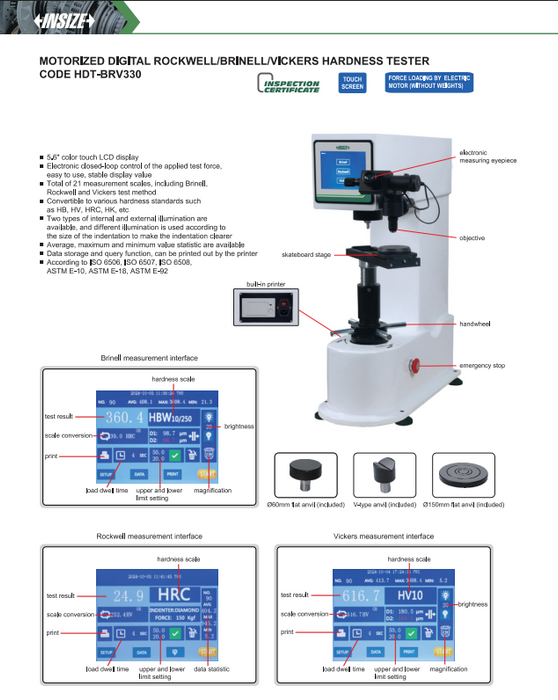

Digital Brinell, Rockwell, and Vickers hardness tester with automatic load control, lens selection capability, and a wide range of forces and scales. Suitable for converting values between different hardness methods.
