YG Lathe Handle Internal Hole - DC--
A-SDQCR-L

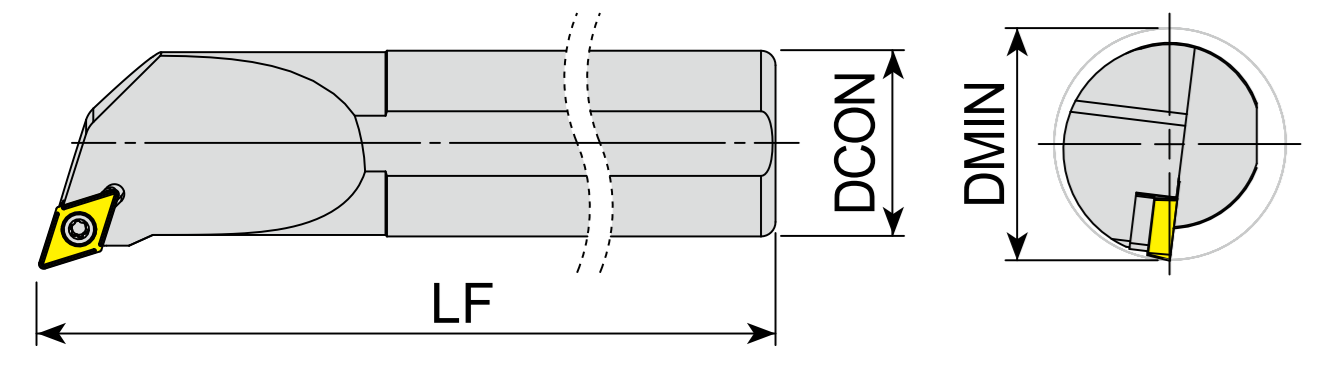

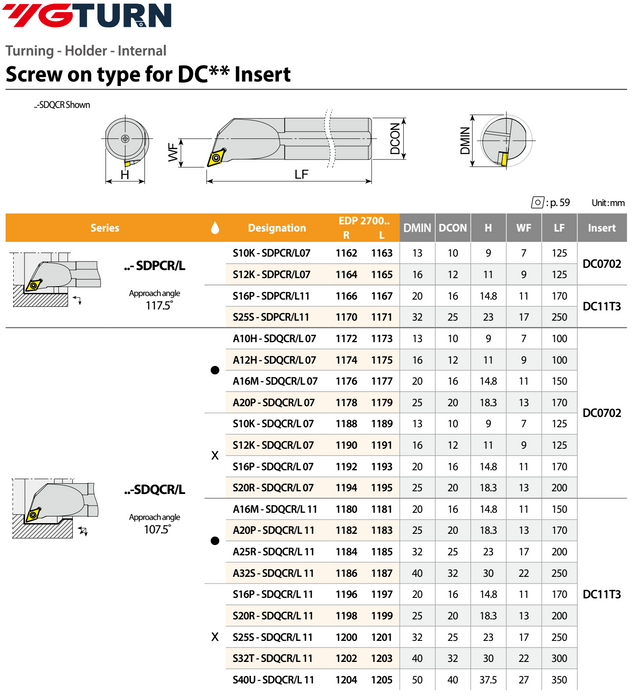

| Κωδικός | Type | DCON-LF-DMIN (mm) | Inserts | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| YG-A10H-SDQCR07 | Right | 10-100-13 | DC--07 | €37,50 | 5-8 εργάσιμες | ||
| YG-A12H-SDQCR07 | Right | 12-100-16 | DC--07 | €40,40 | 5-8 εργάσιμες | ||
| YG-A16M-SDQCR07 | Right | 16-150-20 | DC--07 | €47,90 | 5-8 εργάσιμες | ||
| YG-A16M-SDQCR11 | Right | 16-150-20 | DC--11 | €47,90 | 5-8 εργάσιμες | ||
| YG-A20P-SDQCR07 | Right | 20-170-25 | DC--07 | €49,70 | 5-8 εργάσιμες | ||
| YG-A20P-SDQCR11 | Right | 20-170-25 | DC--11 | €49,70 | 5-8 εργάσιμες | ||
| YG-A25R-SDQCR11 | Right | 25-200-32 | DC--11 | €69,00 | 5-8 εργάσιμες | ||
| YG-A32S-SDQCR11 | Right | 32-250-40 | DC--11 | €106,00 | 5-8 εργάσιμες | ||
| YG-A10H-SDQCL07 | Reverse | 10-100-13 | DC--07 | €37,50 | 5-8 εργάσιμες | ||
| YG-A12H-SDQCL07 | Reverse | 12-100-16 | DC--07 | €40,40 | 5-8 εργάσιμες | ||
| YG-A16M-SDQCL07 | Reverse | 16-150-20 | DC--07 | €47,90 | 5-8 εργάσιμες | ||
| YG-A16M-SDQCL11 | Reverse | 16-150-20 | DC--11 | €47,90 | 5-8 εργάσιμες | ||
| YG-A20P-SDQCL07 | Reverse | 20-170-25 | DC--07 | €49,70 | 5-8 εργάσιμες | ||
| YG-A20P-SDQCL11 | Reverse | 20-170-25 | DC--11 | €49,70 | 5-8 εργάσιμες | ||
| YG-A25R-SDQCL11 | Reverse | 25-200-32 | DC--11 | €69,00 | 5-8 εργάσιμες | ||
| YG-A32S-SDQCL11 | Reverse | 32-250-40 | DC--11 | €106,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

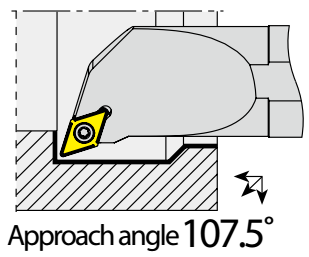

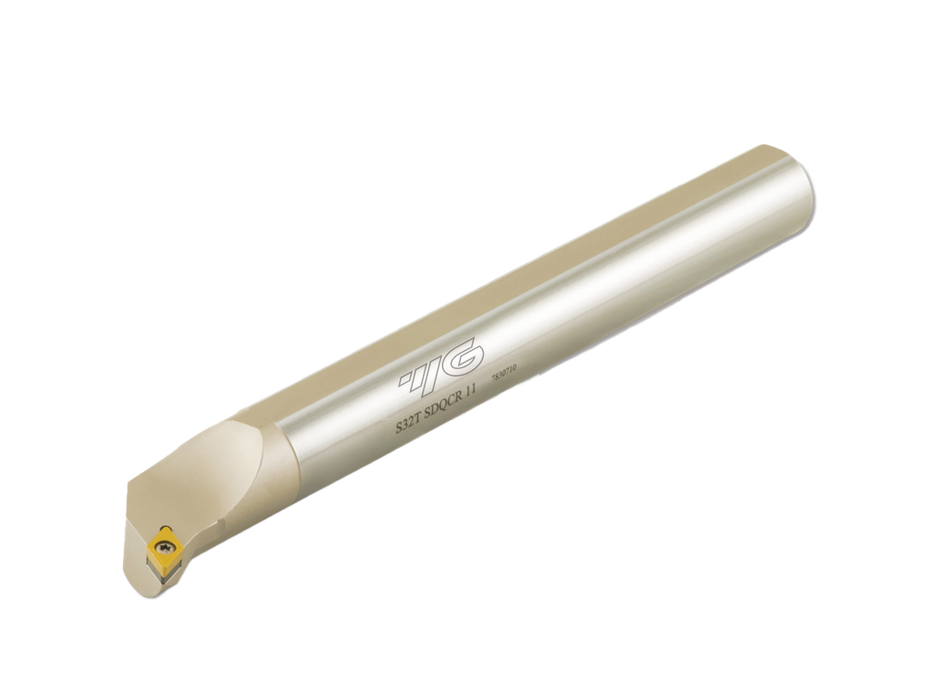

Internal Lathe Tool Holder SDQCR/L from YG1, suitable for inserts type DC--07 or DC--11. With approach angle 107.5°. It has a hole for connection with coolant supply
Tool holders do not include inserts.
