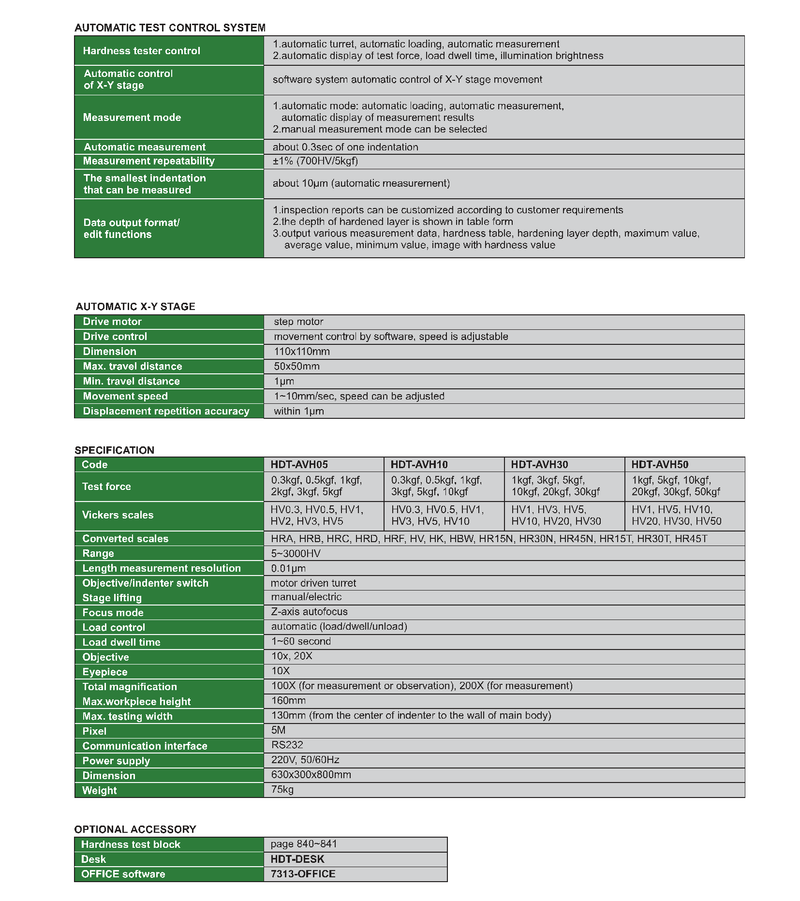

Technical Specifications
-
Suitable for Vickers hardness measurement on metals and non-metallic materials, case depth, and heat-treated surfaces
-
Measurement of hardness distribution curve and case depth
-
Automatic switching between indenter and objective lens
-
Automatic focusing of Z axis
-
Automatic movement of X, Y, and Z axes for continuous multi-point measurements
-
Built-in motor for X–Y table, high positioning accuracy and repeatability
-
Automatic two-dimensional table movement with safety systems
-
Vickers measurement software with report export to Word and Excel
-
According to ISO 6507
-
Includes:
-
Main unit
-
10X and 20X objective lenses
-
Vickers indenter
-
Hardness test block
-
Automatic X–Y table with drive unit
-
Vickers measurement software
-
Computer
-
Anti-vibration base
-
Description

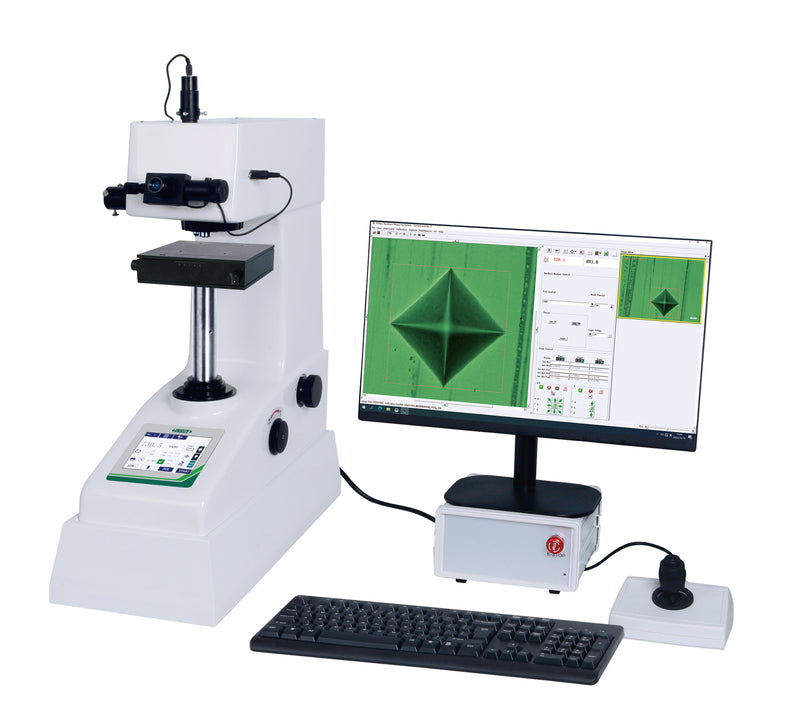

Automatic Vickers hardness tester with three-axis movement, automatic focusing, and high-precision measurement software. Suitable for hardness distribution analysis and case depth measurement on heat-treated samples.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Vickers Units | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|
| HDT-AVH05 | HV0.3, HV0.5, HV1, HV2, HV3, HV5 | On Order |
+VAT
€32.308,00
|
5-8 business days
|
|
| HDT-AVH10 | HV0.3, HV0.5, HV1, HV3, HV5, HV10 | On Order |
+VAT
€32.308,00
|
5-8 business days
|
|
| HDT-AVH30 | HV1, HV3, HV5, HV10, HV20, HV30 | On Order |
+VAT
€32.308,00
|
5-8 business days
|
|
| HDT-AVH50 | HV1, HV5, HV10, HV20, HV30, HV50 | On Order |
+VAT
€32.308,00
|
5-8 business days
|
