Dust Meter - Air Quality - PM0.3 / PM0.5 / PM1 / PM 2.5 / PM5 / PM 10 - Datalogger - SD Card - Built-in Camera
| Particle specifications | |
| Particle channels | PM 2.5 / PM 10 |
| Particle concentrations | 0 ... 2000 μg / m³ |
| Reading | 1 μg / m³ |
| Particle counter specifications | |
| Particle sizes (in micrometers) | 0.3 / 0.5 / 1.0 / 2.5 / 5.0 and 10 μm |
| Flow rate | 2.83 l / min |
| Error | < 5 % at 2,000,000 particles per cubic foot |
| Measurement efficiency |
50 % at 0.3 μm. 100 % with particle size > 0.45 μm |
| Data memory | Stores up to 5,000 data sets |
| Measurement modes | Cumulative, Differential, Concentration |
| Therm. and humidity measurement specifications | |
| Air temperature. measurement range | 0 ... +50 °C / +32 ... +122 °F |
| Dew point temperature. measurement range | 0 ... +50 °C / +32 ... +122 °F |
| Humidity measurement range | 0 ... 100 % RH |
| Air temperature. accuracy |
+10 ... +40 °C / +50 ... +104 °F: ± 0.5 ° Others: ± 1 ° |
| Dew point temperature. accuracy |
0 ... +10 °C / +32 ... +50 °F: ± 1 ° +10 ... +40 °C: / +50 ... +104 °F ± 0.5 ° |
| Humidity accuracy |
0 ... 20 % RH: ± 5 % 20 ... 40 % RH: ± 3.5 % 40 ... 60 % RH: ± 3 % 60 ... 80 % RH: 3.5 % 80 ... 100 % RH: ± 5 % |
| General device specifications | |
| Operating conditions |
0 ... +50 °C / +32 ... +122 °F, 10 ... 90 % RH, without condensation |
| Storage conditions |
-10 ... +60 °C / +14 ... +140 °F, 10 ... 90 % RH, without condensation |
| Display | 2.8", 320 x 240 pixel, backlit color LCD TFT |
| Power supply | 1 x rechargeable battery |
| Battery life | Approximate 4 hours continuous operation with full charge |
| Battery recharge time | Approximate 2 hours using AC charger |

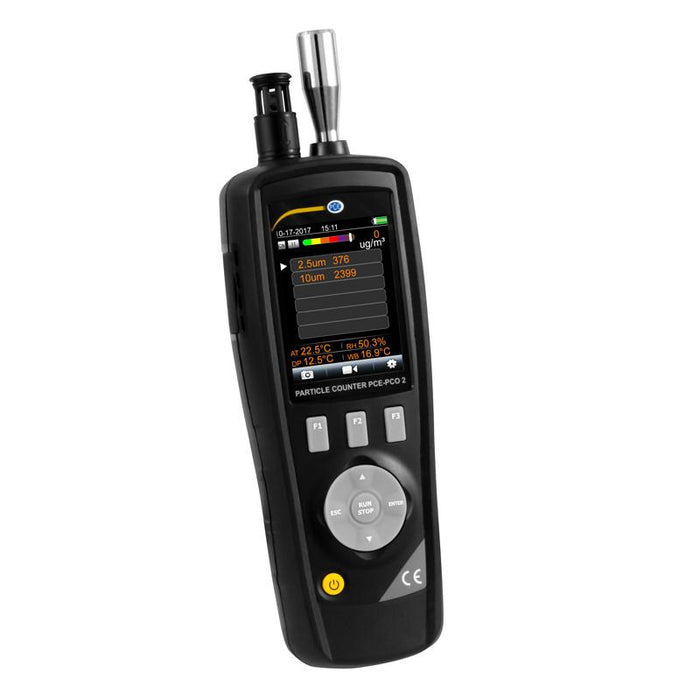

PCE-PCO 2 Particle concentration meter/
Portable device for monitoring particle (PM) concentrations in the air / 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, and 10 μm particle sizes / Measurement of air temperature, dew point, and relative humidity
The PCE-PCO 2 measures particle concentration in the air, temperature, relative humidity, and dew point. It is ideal for multiple uses in many fields of human activity such as industrial environments, laboratories, etc., where specific working conditions are foreseen following protocols that ensure levels of non-harmful particle concentrations in the air.
The particle counter is ideal for monitoring human exposure to exhaust gases, smoke, and other harmful atmospheric pollutants as well as flammable dust in the air, such as agricultural dust, carbon dust, chemical dust, metal dust, plastic dust, and wood dust.
- Measures air temperature, dew point, and relative humidity
- 2.8" TFT color LCD display
- Built-in camera for image and video recording
- Cumulative and differential measurements and particle concentration measurement
- Stores up to 5,000 data sets in memory
- Auto power-off function for energy saving
- PM Channels: PM 2.5, PM 10, including mass concentration function ( μg/m³)
- Free software download on the PCE software website
1 x Zero filter
1 x Rechargeable battery
1 x AC charger
1 x USB cable
1 x User manual
1 x CD-ROM (software)
1 x Mini tripod
1 x Hard case
