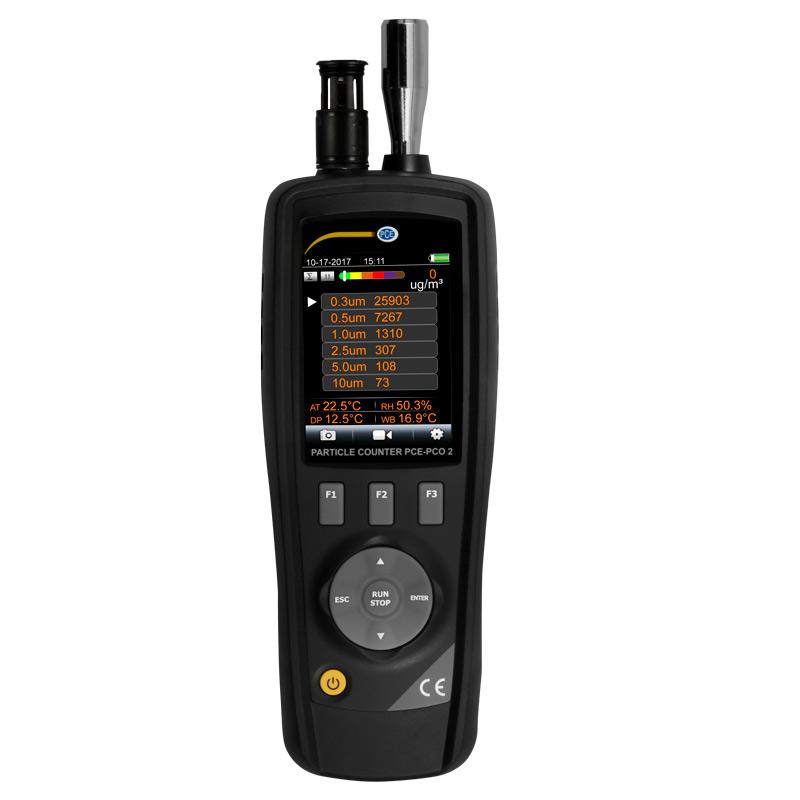

PCE Instruments PCE-PCO 2 dust/air quality meter with colour display and sensor on top
Technical specifications PCE-PCO 2 - Dust meter - Air quality - PM0.3 / PM0.5 / PM1 / PM 2.5 / PM5 / PM 10 - Datalogger - SD Card - Built-in camera
PCE Instruments PCE-PCO 2 dust/air quality meter with colour display, keys and sensor on top

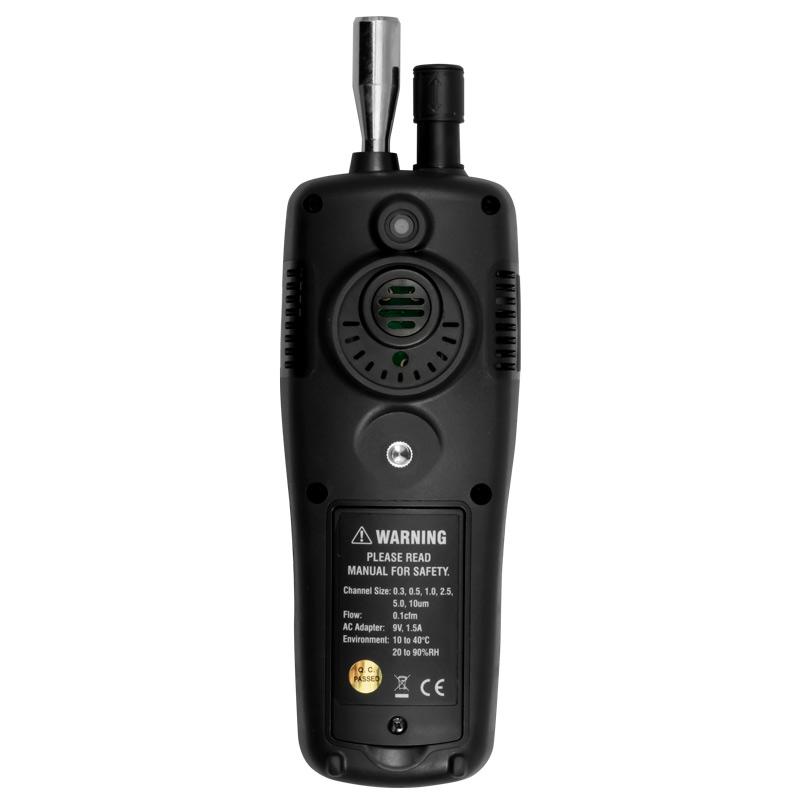

PCE Instruments PCE-PCO 2 dust/air quality meter, rear view with sampling inlet and warning label

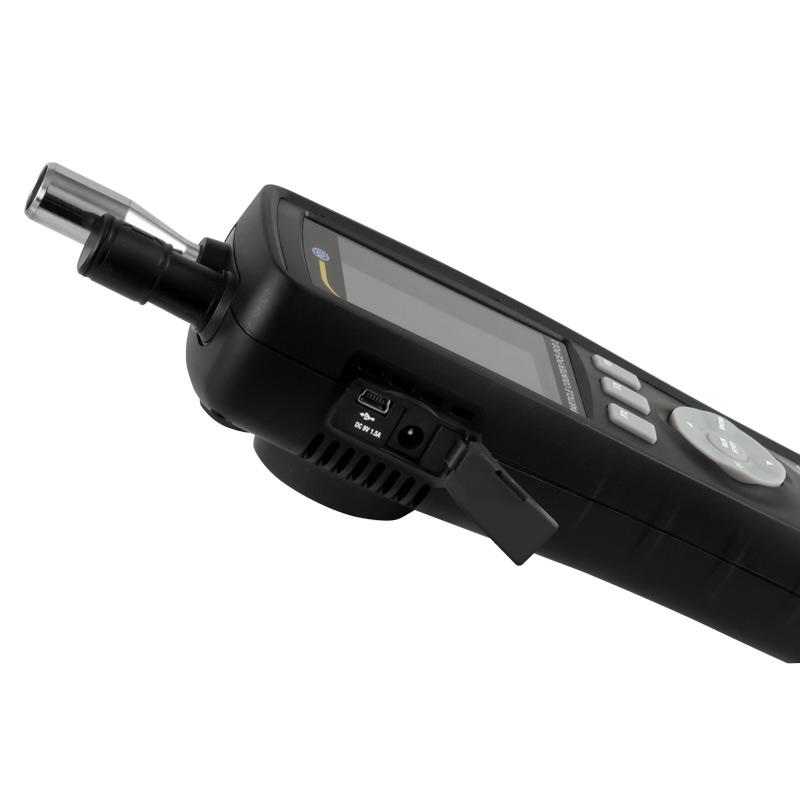

PCE Instruments PCE-PCO 2 dust/air quality meter with display, keys and SD/USB port on the side

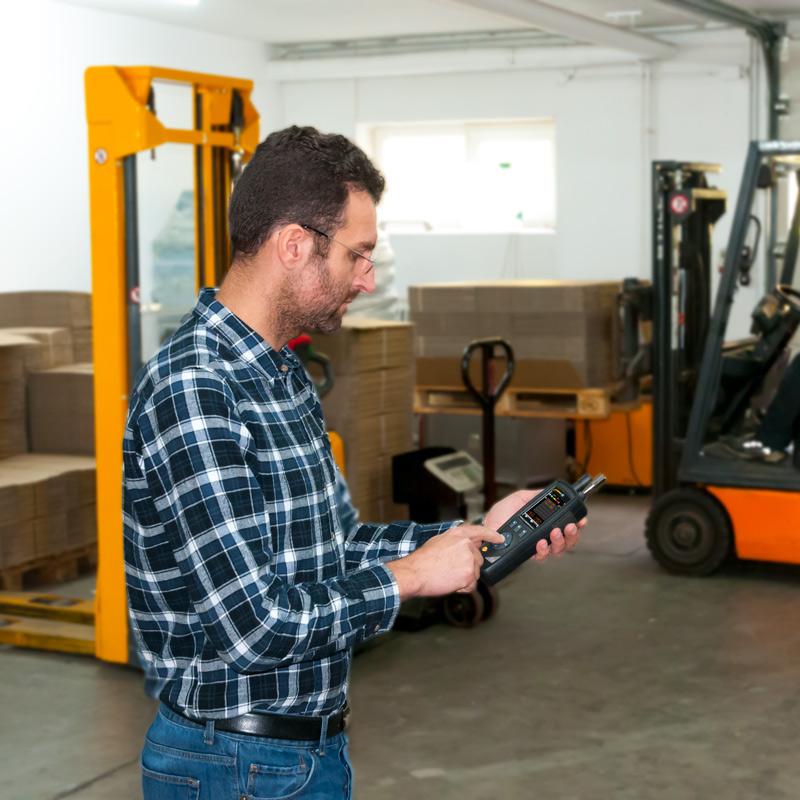

PCE Instruments PCE-PCO 2 dust/air quality meter in use in a warehouse, handheld device with display and sensor

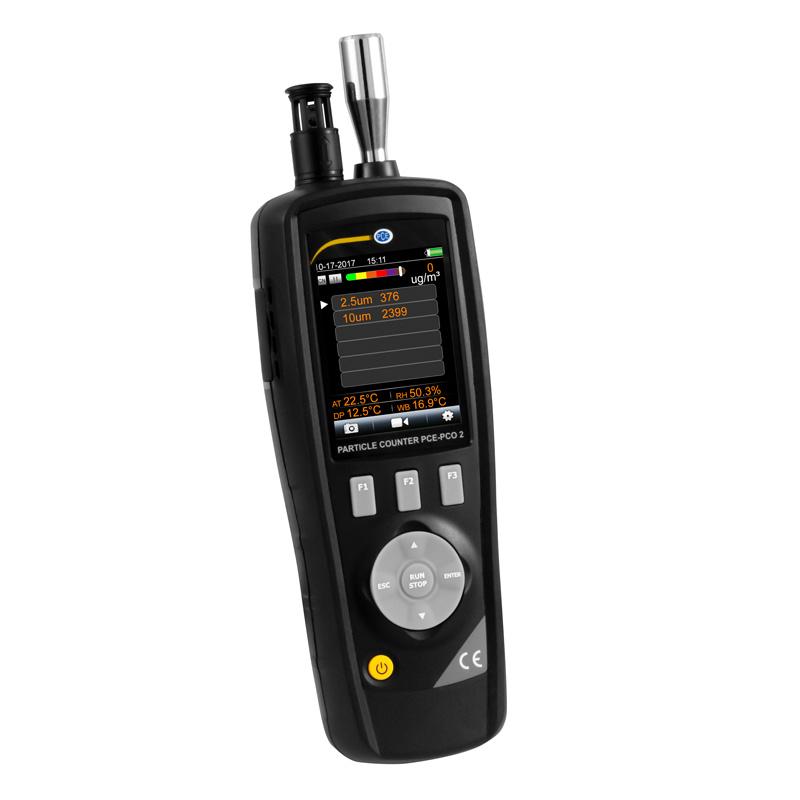

PCE Instruments PCE-PCO 2 handheld dust/air quality meter with colour display and sensor on top

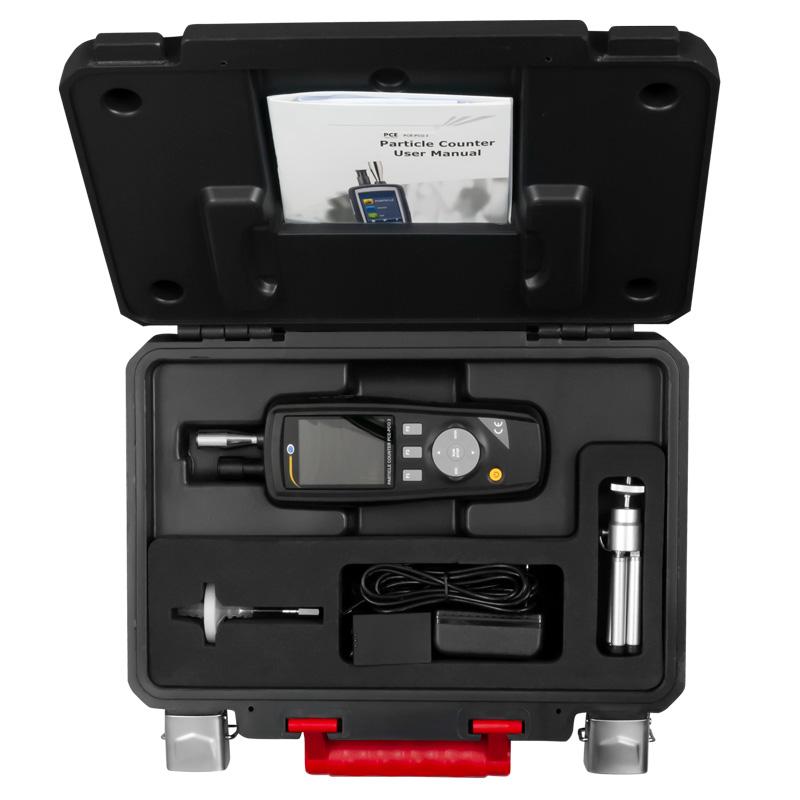

PCE-PCO 2 carrying case with dust meter, probe, power adapter and manual
PCE Instruments PCE-PCO 2 dust/air quality meter with colour display and sensor on top
Technical specifications PCE-PCO 2 - Dust meter - Air quality - PM0.3 / PM0.5 / PM1 / PM 2.5 / PM5 / PM 10 - Datalogger - SD Card - Built-in camera
PCE Instruments PCE-PCO 2 dust/air quality meter with colour display, keys and sensor on top
PCE Instruments PCE-PCO 2 dust/air quality meter, rear view with sampling inlet and warning label
PCE Instruments PCE-PCO 2 dust/air quality meter with display, keys and SD/USB port on the side
PCE Instruments PCE-PCO 2 dust/air quality meter in use in a warehouse, handheld device with display and sensor
PCE Instruments PCE-PCO 2 handheld dust/air quality meter with colour display and sensor on top
PCE-PCO 2 carrying case with dust meter, probe, power adapter and manual

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-PCO 2
€1.341,00
€1.662,84
0
  • Portable handheld particle counter
  • 6 particle sizes, 0.3–10 µm
  • PM 2.5 and PM 10 in µg/m³
  • Temperature, dew point, relative humidity
  • Built-in camera for photos, video

The PCE-PCO 2 is a portable handheld particle counter that monitors particulate matter (PM) concentrations in air. It counts 6 particle sizes: 0.3, 0.5, 1.0, 2.5, 5.0 and 10 µm. It also shows PM 2.5 and PM 10 mass concentration and measures air temperature, dew point and relative humidity. It is designed for indoor air quality (IAQ) assessments.

Typical uses include clean room monitoring and checking exposure to exhaust, smoke and other harmful pollutants. It also measures airborne combustible dust, such as agricultural, carbonaceous, chemical, metal, plastic and wood dust. HVAC technicians use it for system performance and filtration audits. Industrial hygienists and safety staff use it to assess occupational risks from hazardous and combustible dust.

Highlights

  • 6 particle sizes: 0.3, 0.5, 1.0, 2.5, 5.0, 10 µm
  • PM 2.5 and PM 10 mass concentration in µg/m³
  • Cumulative, differential and concentration counting modes
  • Measures air temperature, dew point and relative humidity
  • 2.8" TFT full-colour LCD
  • Built-in camera for photos and video
  • Memory for up to 5,000 data sets
  • Auto power-off and free PCE software download
Particle
Measuring channel sizes0.3, 0.5, 1.0, 2.5, 5.0, 10
Measuring range0,3 ... 10 µm
Counting efficiency50 % at 0.3 µm;
100 % at particle size > 0.45 µm
Flow volume2,83 l/min
Coincidence error<5% at 2,000,000 particles per ft³
Measuring range0 ... 2000 µg/m³
Resolution1 µg/m³
Measuring channel sizesPM2,5, PM10
Dew point
Measuring range0 ... 10 °C
Resolution0,1 °C
Accuracy±1°C
Measuring range10 ... 40 °C
Resolution0,1 °C
Accuracy±0.5°C
Measuring range40 ... 50 °C
Resolution0,1 °C
Accuracy±1°C
Relative humidity
Measuring range0 ... 20 % RH
Resolution0,1 % RH
Accuracy±5 % RH
Measuring range20 ... 40 % RH
Resolution0,1 % RH
Accuracy±3.5 % RH
Measuring range40 ... 60 % RH
Resolution0,1 % RH
Accuracy±3 % RH
Measuring range60 ... 80 % RH
Resolution0,1 % RH
Accuracy3.5 % RH
Measuring range80 ... 100 % RH
Resolution0,1 % RH
Accuracy±5 % RH
Temperature
Measuring range0 ... 10 °C
Resolution0,1 °C
Accuracy±1 °C
Measuring range10 ... 40 °C
Resolution0,1 °C
Accuracy±0.5 °C
Measuring range40 ... 50 °C
Resolution0,1 °C
Accuracy±1 °C
General technical data
Display typeLCD with backlight
Display size2,8 Inch
Display resolution320 x 240 pixels
Storage mediumInternal memory
Storage capacity80 MB
Memory capacity (additional information)Micro SD card 5000 data records
InterfaceMini-USB
SensorLaser scattered light
Operating time4 h
Automatic power-off from...to3 ... 60 min.
Menu languageEnglish, French, German, Spanish
Protection class (device)IP20
Connector typeDevice-europlug
Rechargeable battery1 x 7,4 V internal , Lithium polymer battery
Capacity1200 mAh
Operating conditions0 ... 50 °C , 10 ... 90 % RH
Storage conditions-10 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )240 x 75 x 55 mm
Weight420 g
  • 1×PCE-PCO 2 air sampler
  • 1×zero filter
  • 1×rechargeable battery
  • 1×AC charger
  • 1×USB cable
  • 1×user manual
  • 1×CD-ROM (software)
  • 1×mini tripod
  • 1×hard case
Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Gas Detectors - Dust Meters

You're viewing one product from this category. Browse the full range.

51 products
View all

Related categories

All categories →
Thermometers & Hygrometers Sound meters23 products Anemometers27 products Photometers13 products
Dust Meters

From our Wiki

Dust Meters

Dust meters (or particle counters) are air quality monitoring instruments that detect the concentration of suspended particles (Particulate Matter - PM). Their operation is usually based on laser scattering (laser scattering) technology, where a beam of light strikes the particles and the sensor calculates their size and quantity.

  • Particle Categories:PM2.5: Fine particles (up to 2.5 μm) that penetrate deep into the lungs and the bloodstream.PM10: Particles (up to 10 μm) such as dust, pollen, and mold.
  • Applications:Industry: Dust control in carpentry workshops, cement plants, and mines to protect workers.Cleanrooms (Cleanrooms): Certification of pharmaceutical or electronics production areas.Environment: Monitoring of air pollution and "smog" in cities.
  • Features: They include a data recording function (data logging), audible limit-exceedance alerts, and often also measure temperature and humidity in parallel.
