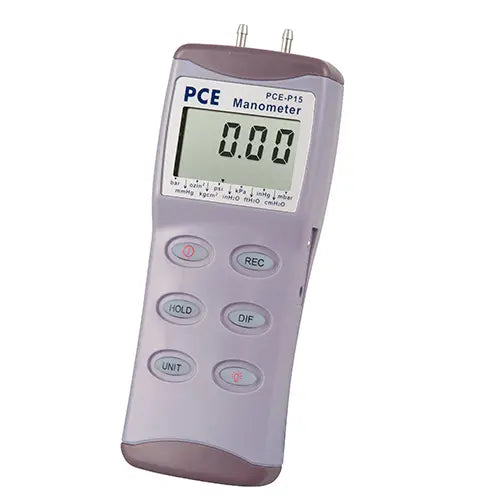

PCE-P15

Ψηφιακο Διαφορικο Μανόμετρο ±1bar

 Pce
Κωδικός Εύρος Ανάγνωση Τιμή ** Στοκ
PCE-P15 ±1 bar 0.6 mbar €287,00 1 διαθέσιμo


Τιμές χωρίς ΦΠΑ 24%


Specification

Pressure Meter
Parameter PCE-P15
Max. Pressure
positive/ negative
or overpressure / vacuum
30 psi
PSI Range 0...plus-minus15
Resolution 0.01
mbar Range 0...plus-minus1000
Resolution 1
inH20 Range 0...plus-minus415
Resolution 0.3
inHg Range 0...plus-minus30.5
Resolution 0.005
mmHg Range 0...plus-minus750
Resolution 0.5
kPa Range 0...plus-minus100
Resolution 0.1
cmH20 Range 0...plus-minus1050
Resolution 1
Kg/cm² Range 0...plus-minus1.05
Resolution 0.001


Data format Baud rate: 2400 baud,1 stop bit, 8 data bits
Accuracy plus-minus0.3 % (full range, @ +25degreesC / +77degreesF)
Repeatability plus-minus0.2 % (max. plus-minus0.5 % of full scale)
Duration 0.3 ms
Operating temperature max +50 degreesC / +122 degreesF
Battery 1 x 9 V - block battery PP3
Dimensions 182 x 72 x 30 mm / 7.1 x 2.8 x 1.1"
Weight 150 g / 5.3 oz

Description

Differential Pressure Manometer PCE-P15 with RS232 interface and software, for overpressure, underpressure, differential pressure, suitable for air and gases

Here you can see a professional differential pressure manometer with the highest accuracy and best performance. With this differential manometer you can not only measure. The pressure readings can easily be transferred online to a PC or laptop. The differential pressure gauge is ideal for use in industry, in service and in the laboratory. The device is particularly suitable for measuring non-corrosive media. The overload protection is twice the measuring range. The 9 units that can be shown on the display make this differential manometer universally applicable for the practitioner on site and saves laborious conversion of the measurement results (conversion table of the pressure units).

If you want to transfer the measurement data from the differential manometer to the computer, you need the optional software and the RS-232 interface cable. The software runs in conjunction with the Windows® versions `95,` 98, `2000 and ME / XP (short info: pressure measuring device with interface). The principle of absolute and differential pressure measurement is explained if you follow the link below: Principle of absolute and differential pressure measurement. DIN ISO 9000 calibration certificates for the pressure gauges and corresponding accessories are also available.

Software

The software for data transfer and the interface cable can optionally be ordered as a package. The differential manometer is connected to the PC with the RS-232 cable. The software is installed from the CD. The pictures below give you an optical impression of the software. The differential manometer transmits the respective measured values ​​online to the PC.

The values ​​determined on the differential manometer are plotted directly on the y-axis. The differential pressure values ​​are indicated with "-" in a field below the graphic (visible on the top left picture (in the red circle)). The measuring units can be changed to the desired unit both on the differential manometer and in the software. All measured values ​​are written in a data file and can be saved under any name on the hard disk of the computer. Many customers also transfer the values ​​to e.g. MS Excel for further analysis.

Delivery Scope

1 x Differential Pressure Manometer PCE-P15
1 x Carrying case
1 x Battery
1 x PVC hose (1 m / 39")
1 x Instruction manual

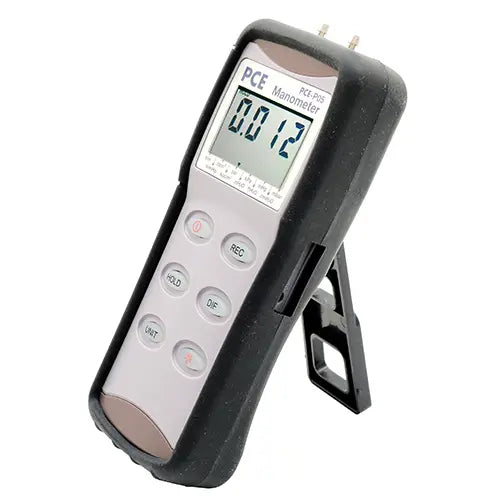

1 x Protective cover

Warning
Overloading destroys the sensor in the PCE-P15 pressure measuring device
