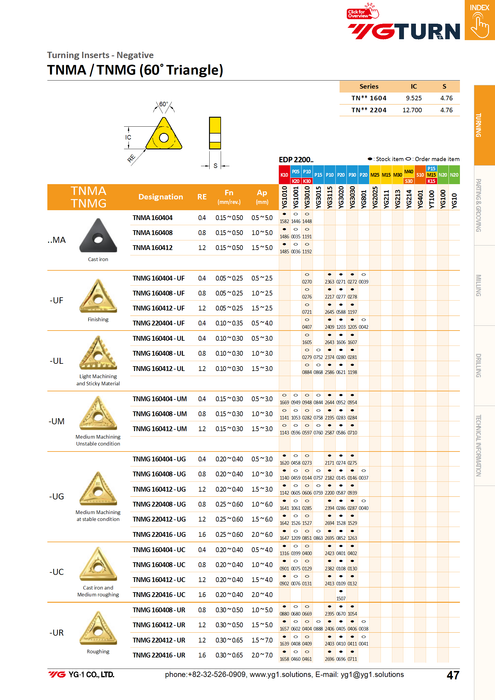

TNMG1604**-UG Inserts for Steel - Continuous Cutting
| Κωδικός | Cutting Depth (mm) | Radius (mm) | Grade | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| TNMG160404-UG-YG3125 | 0.5~3.0 | 0.4 | YG3125 | €5,40 | 10 διαθέσιμα | ||
| TNMG160408-UG-YG3020 | 1.0~3.0 | 0.8 | YG3020 | €4,60 | 1 διαθέσιμo | ||
| TNMG160408-UG-YG3125 | 1.0~3.0 | 0.8 | YG3125 | €5,40 | 10 διαθέσιμα | ||
| TNMG160412-UG-YG3125 | 1.5~3.0 | 1.2 | YG3125 | €5,40 | Κ.Π. 5-8 εργάσιμες * | ||
* Κ.Π. : Κατόπιν Παραγγελίας
Processing Materials - - (P) - Steel - Alloy Steel

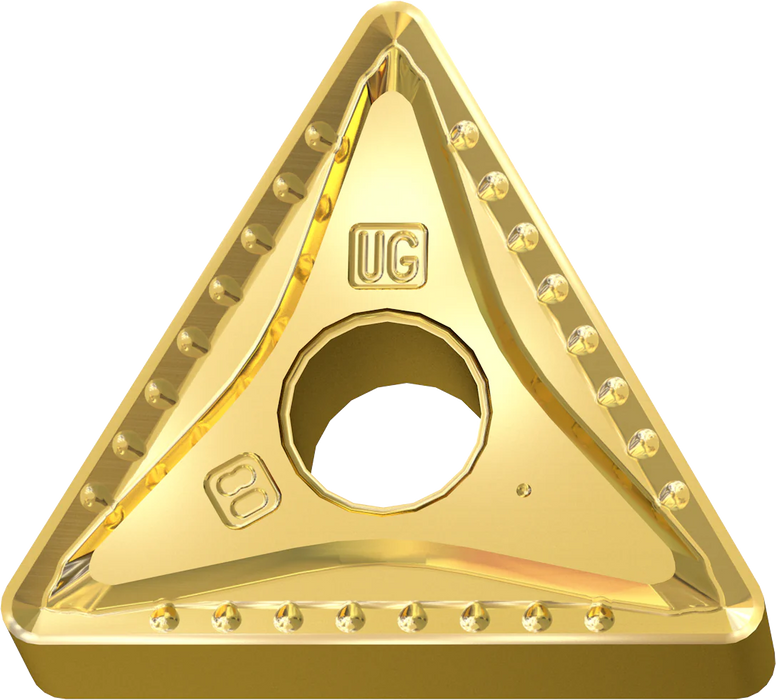

Configurator - - (UG) - Geometry for general machining of steels. It has a relatively large rake angle for smoother chip flow and a reinforced cutting edge with a flat section on the edge ( T-land ). Suitable for moderate machining and continuous cutting. Combines toughness and high wear resistance
Quality - YG3125 – First choice for steel machining (P15–P35). New grade with high heat and interrupted cutting resistance. CVD MT-TiCN–Al₂O₃ coating with TiN topcoat for wear control and easy identification of worn edges. Surface treatment that reduces false cut generation and improves chip removal. Ideal for continuous and interrupted cuts in mass production applications. - - YG3020 – First choice for general steel machining (P15–P30). CVD TiCN–Al₂O₃ coating. Substrate specifically designed for high toughness and smooth surface for increased wear resistance.
Standard F and ap Values - - Fn = 0.20~0.40 mm/rev
Standard Vc Values - - (P1-5) - Vc=160~380 m/min - (P5-9) - Vc=140~320 m/min - (P10-11) - Vc=60~130 m/min
General Information - Lathe inserts from YG1 , a leading manufacturer of cutting tools from Korea. The selection of the appropriate insert depends on the chip breaker , i.e. the geometry that helps in the breakage and removal of the waste, as well as the grade , which describes the microstructure and coating of the insert and directly affects the hardness and birefringence. The cutting conditions (speed, feed, depth) must be carefully defined to achieve maximum efficiency and tool life.
