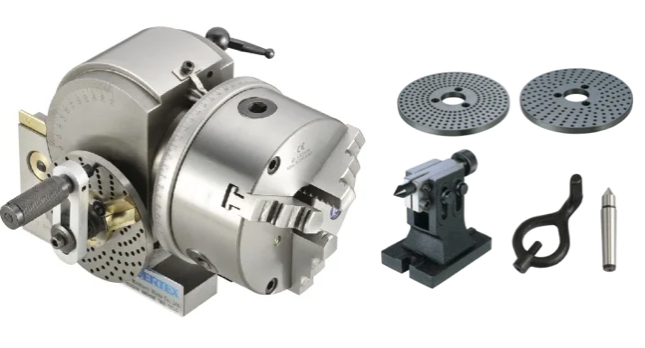

ΣΕΤ Διαιρέτης Τσοκ + Πόντα + Δίσκοι
| Κωδικός | Για τσοκ | ύψος κέντρου - Morse | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|
| BS-0-J-5 | Ø 130mm | 85mm / ΜΤ2 | €801,00 | 1 διαθέσιμo | ||
| BS-1-J-6 | Ø 160 mm | 100mm / ΜΤ3 | €1.094,00 | Με παραγγελία | ||
Τιμές χωρίς ΦΠΑ 24%
Χώρα πρoέλευσης Taiwan

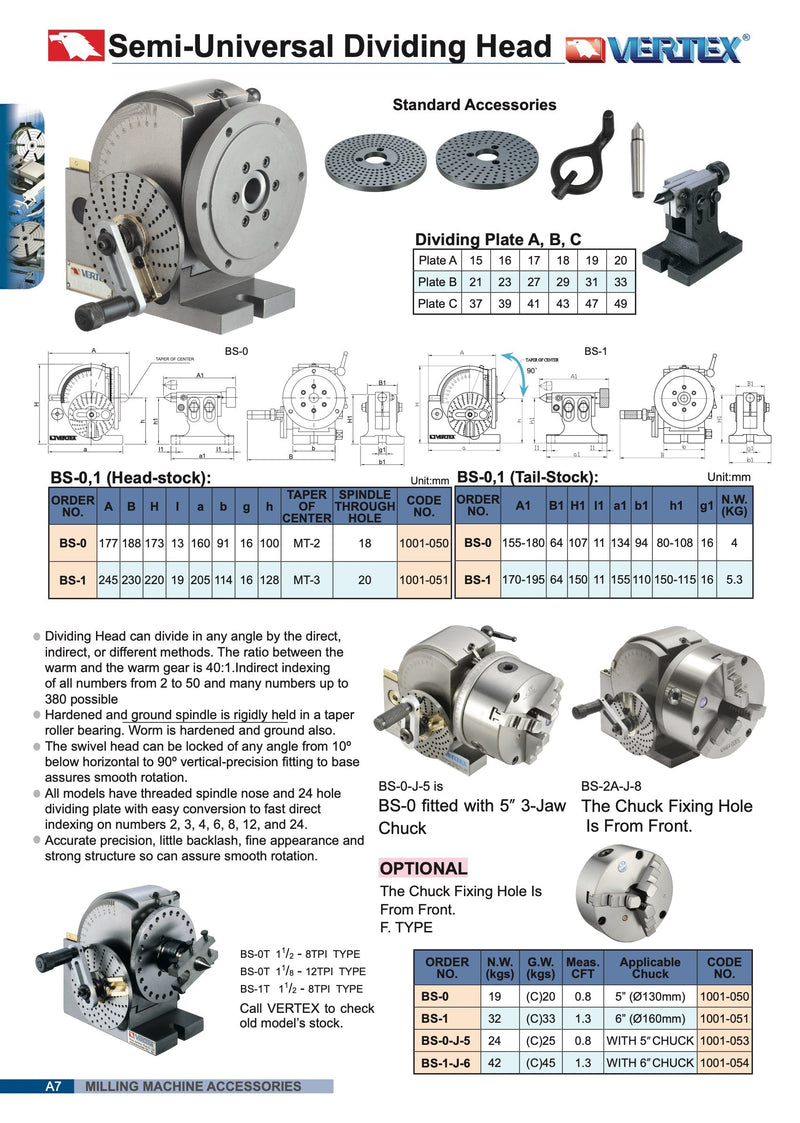

- Dividing Head can divide in any angle by the direct, in- direct, or different methods. The ratio between the warm and the warm gear is 40:1. Indirect indexing of all numbers from 2 to 50 and many numbers up to 380 possible
- Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also. The swivel head can be locked of any angle from 10o assures smooth rotation.
- The swivel head can be locked of any angle from 10° below horizontal to 90° vertical-precision fitting to base assures smooth rotation.
- All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2, 3, 4, 6, 8, 12, and 24.
- Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.
