Name: Αεροεργαλείο Lapping Παλινδρομικο - 35,000 SPM Γενικης Χρήσης
Brand: Besdia
SKU: UTR-70
Price: 270.32 EUR
Availability: InStock

Εργαλεία Αέρος

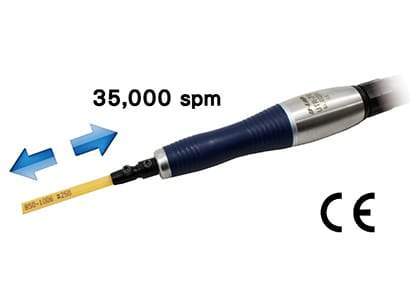

Αεροεργαλείο lapping παλινδρομικό Besdia UTR-70 35.000 spm, μπλε-ασημί σώμα με εξάρτημα λείανσης και σήμανση CE

Περιγραφή

UTR-70 Turbo Air Lapper

Driven by turbine air motor.
Low noise, low vibration and durable tool life.
UTR-70 suits for general purpose polishing and finishing process of mold and die.

Stock	Air Pressure	Weight	Dimension
0.7mm	90psi (6.2kg/cm²)	220g	Ø28x200L (mm)

General Assembly

To upgrade performance and service life

In order to maintain the best state of pneumatic tools and extend their life, the need arises to connect three points in combination so as to achieve the purpose of filtering water vapor, controlling the intake air pressure and lubrication.

Before using pneumatic tools, be sure to confirm if there is enough oil in the oiler of the three point combination.
Set the intake air pressure of three point combination to be 90 psi (6.2 kg / cm²) as the most suitable condition of use.
Before using, please check if the water filter bottle of three point combination is full. If full, please discharge the water first.
Adjust the oil intake quantity of three point combination. We recommend about 2CC every minute (if used often).
During the holidays or when the pneumatic tools are not used for a long time, when you first turn them on, please raise the oil intake quantity of the three point combination to reach 4 CC per minute. In addition, when switching on pneumatic tools, it is better to keep them idle at low speed for 20-30 seconds, so that oil lubricates each part, and then adjust to normal speed.
Lubricant oil choice: Do not use thick lubricant oil. It is recommended to use circulation oil R32.
