Specification
| Absolute Moisture | |
| Measurement Range | 0% ... 100% |
| Resolution | 0.01% |
| Accuracy | plus-minus 0.04% |
| Weighing Range | |
| Measurement Range | 0 g ... 200 g |
| Resolution | 0.01 g |
| Accuracy | plus-minus 0.04 g |
| General Technical Data | |
| Measurement Functions | ATRO Moisture Content %R |
| Dry Content %D | |
| Moisture Content %M | |
| Initial Weight %W | |
| Display Type | LC Touch Display |
| Display Size | 5 inches |
| Display Refresh Rate | 10 times per second |
| Memory Capacity | 32 data sets |
| Data Interface | RS232 |
| Heating Element | Halogen Lamp |
| Heating Temperature | 40 ... 165 degreesC |
| Measurement Rate | 1 Hz |
| Abort Criteria | Weight Loss, Time |
| Menu Language | Chinese, Russian, Polish, Turkish, Portuguese, Dutch, Spanish, Italian, French, English, German |
| Protection Class | IP20 |
| Power Supply | Schuko Plug (110 V - 240 V AC | 50/60 Hz) |
| Weight | 3.7 kg |
| Device Weight with Package | 4.3 kg |
| Device Weight with Package and Outer Packaging | 5.34 kg |
| Dimensions (L x W x H) | 375 x 225 x 205 mm |
| Additional Dimensions | Sample Pan Ø 90 mm, Height 6 mm |
| Operating Conditions | 20 ... 25 degreesC, 40 ... 60 % r.F. |
| Storage Conditions | 0 ... 40 degreesC, 0 ... 80 % r.F. |
Description
Analysis scale for precise determination of absolute moisture in various materials / Touch Display / easy operation / Data storage for 32 measurements / optional software

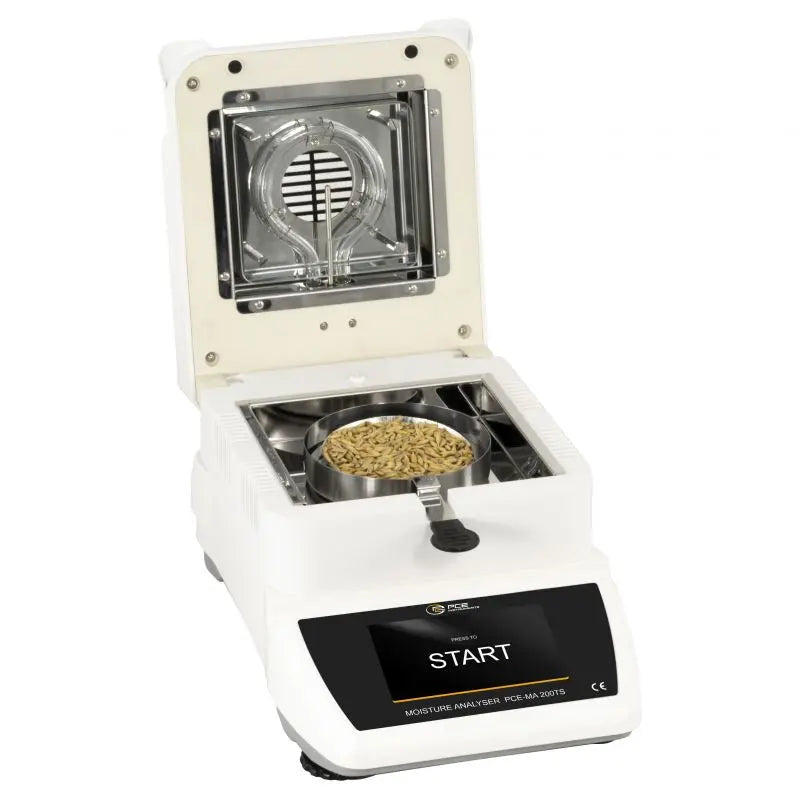

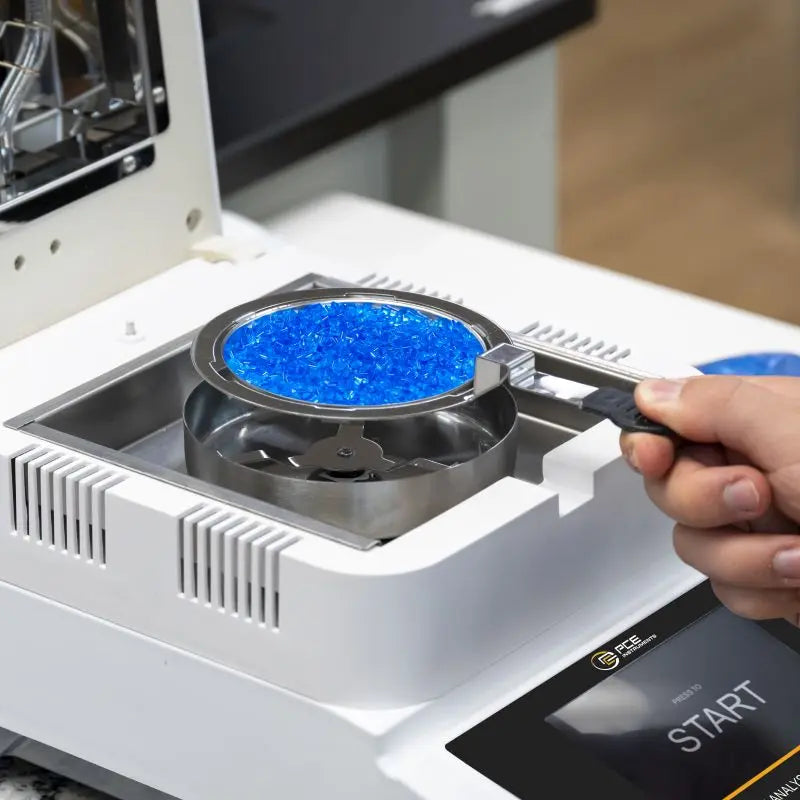

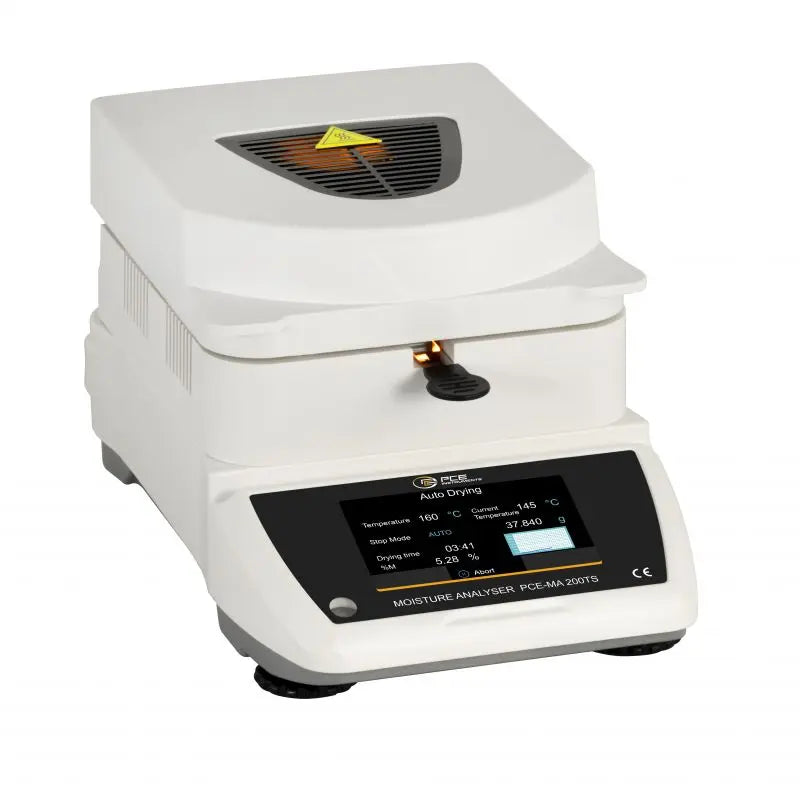

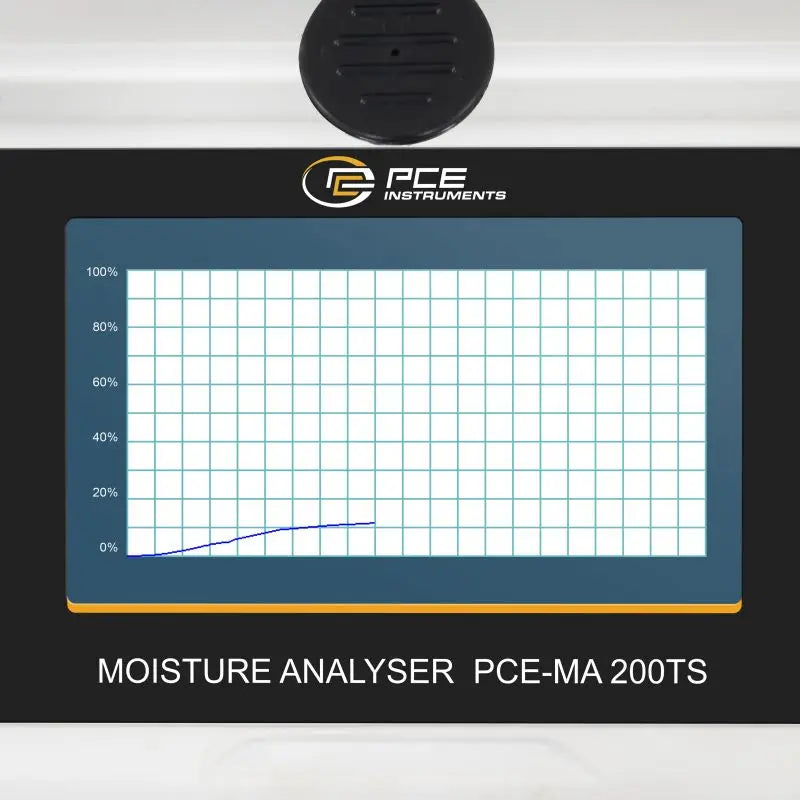

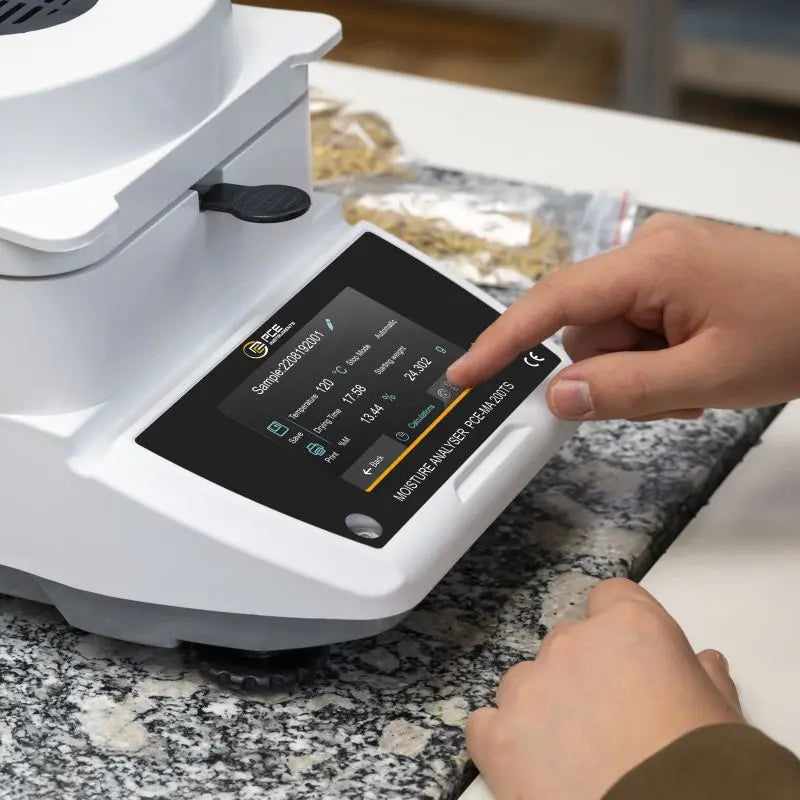

The analysis scale has a measuring range of 0 ... 100% absolute humidity. The analysis scale is operated via the 5" large touchscreen. To measure the moisture content with the analysis scale, a sample is evenly distributed on the sample pan. The sample pan is then placed and sealed in the analysis scale. After setting all parameters, the analysis scale begins the measurement.

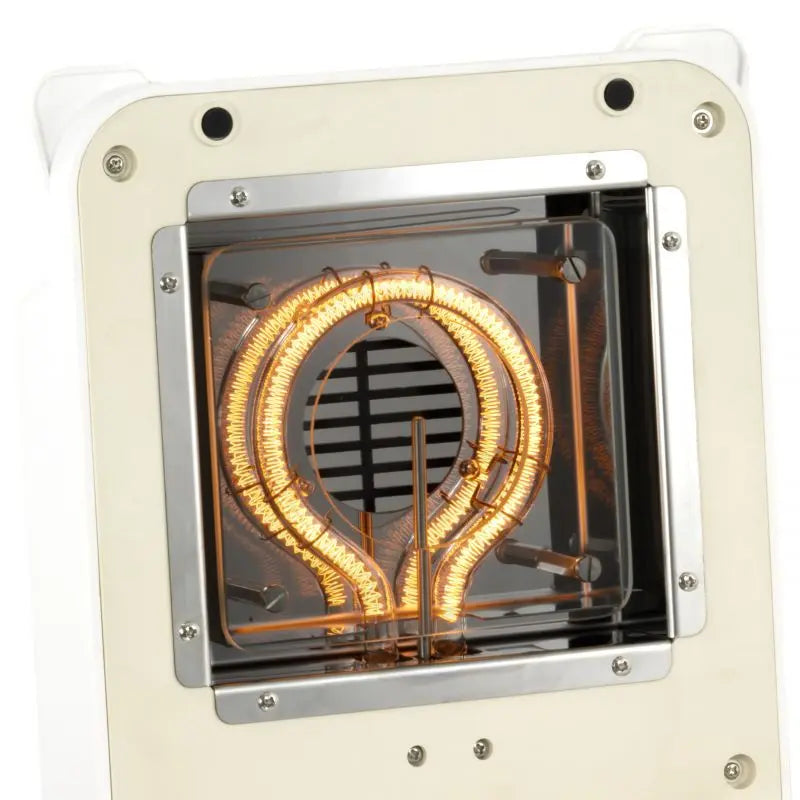

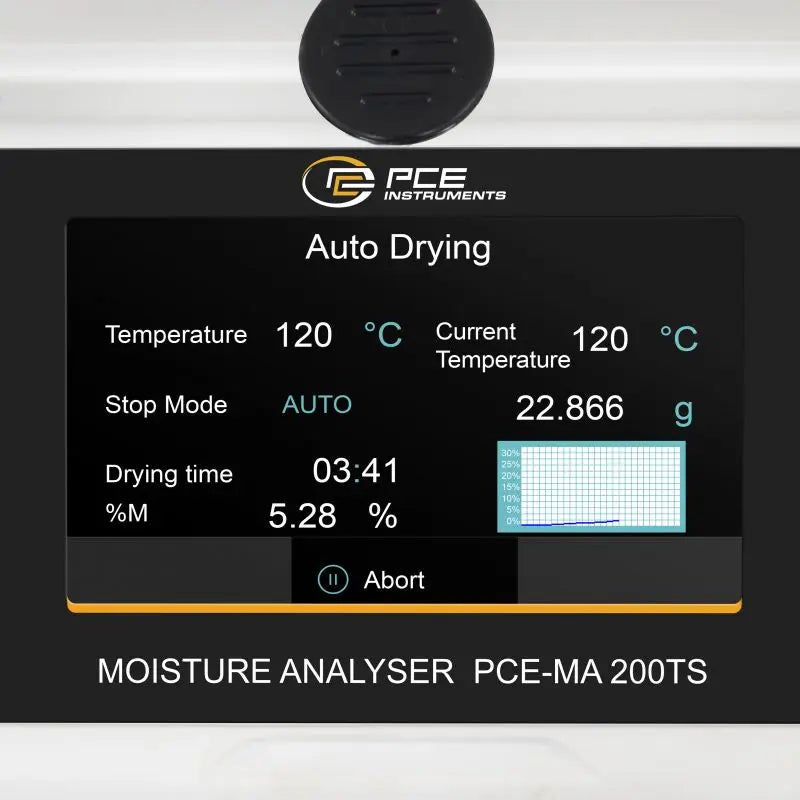

The analysis scale determines the moisture content based on the measured weight difference, relative to the weight before and after drying the sample. The adjustable temperature range for the analysis scale is between 40 ... 165 °C. Thus, a specific drying temperature for the sample can be selected with the analysis scale. The generated drying temperature is produced by a built-in halogen lamp with a diameter of 90 mm.

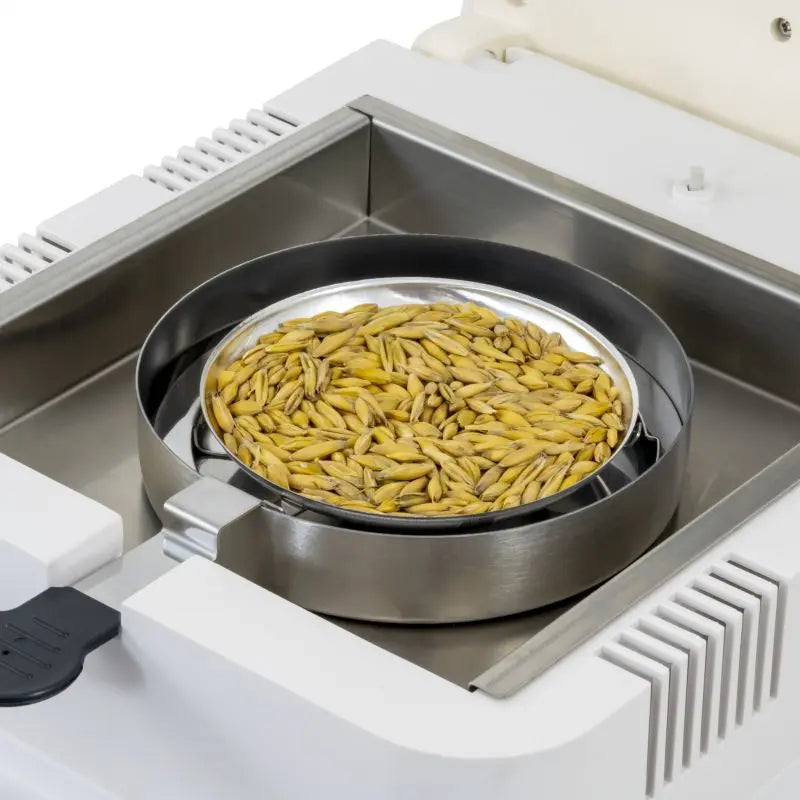

The drying process of the sample makes the analysis scale usable in various fields. Thus, the analysis scale finds its application, for example, in laboratories to measure the moisture of different powders, in quality control to determine the moisture of granules, or on farms to determine the moisture content of oats, grains, or wheat.
A major advantage over devices using capacitive measuring methods is that the analysis scale operates independently of characteristic curves and provides more accurate results.

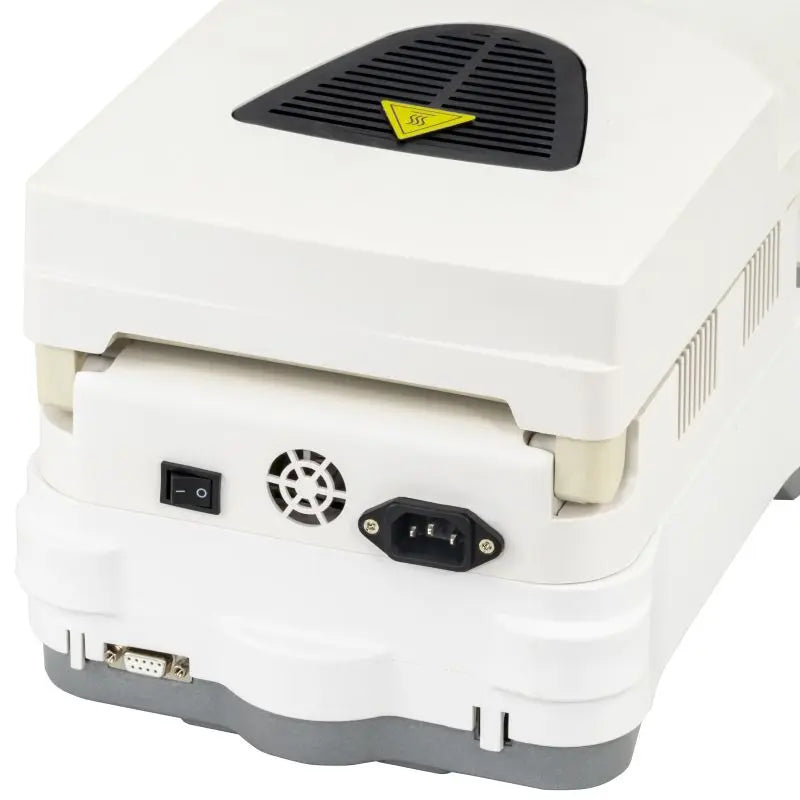

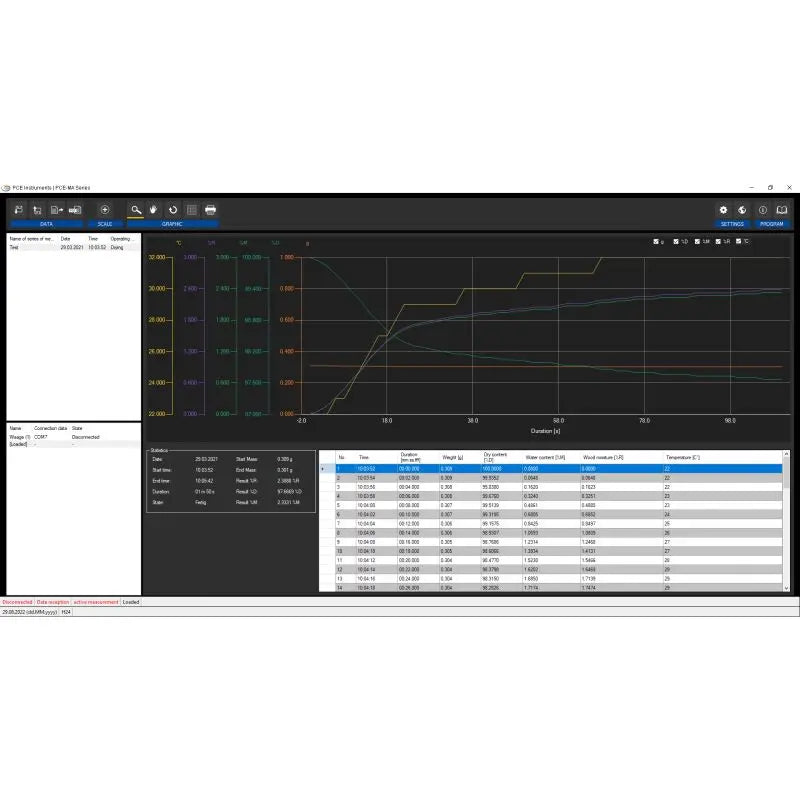

The measured values can be transferred to a PC via the Serial RS232 interface of the analysis scale for analysis. A suitable software is available optionally for the analysis scale. If required, the analysis scale can be supplied with an ISO calibration certificate.

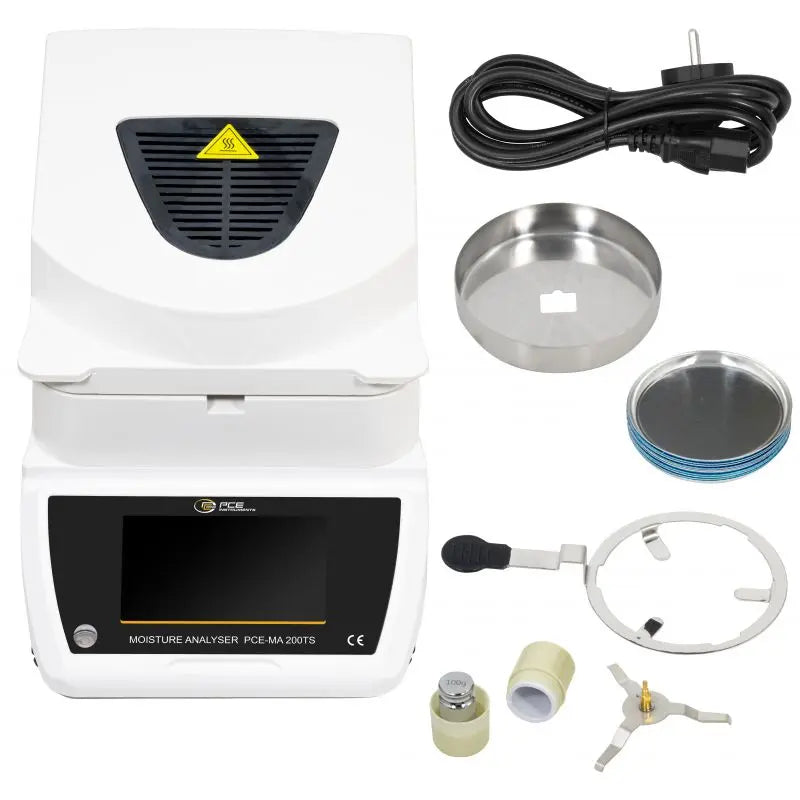

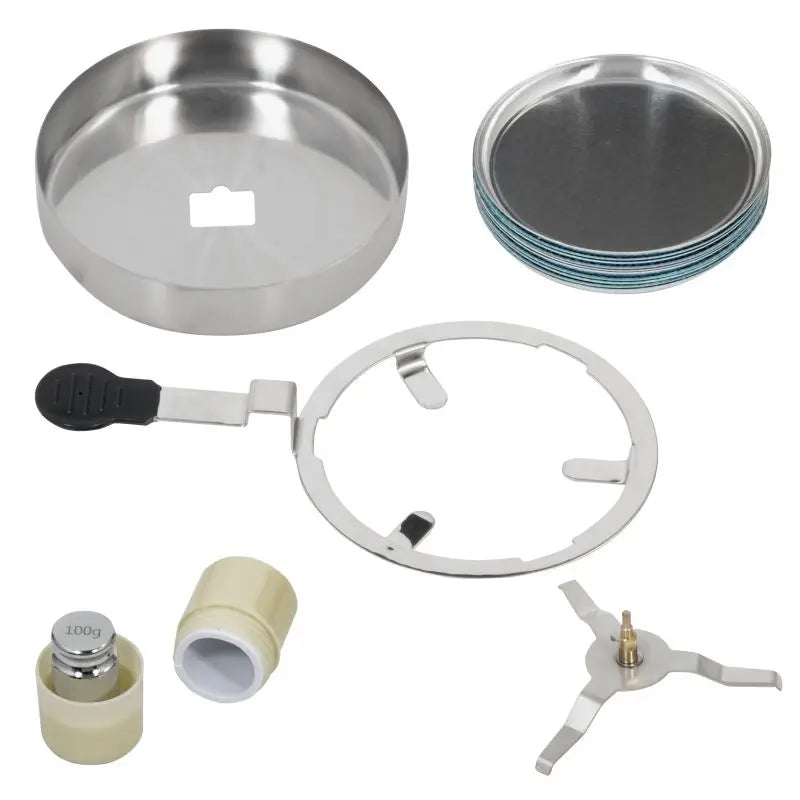

Delivery Scope
1 x Analytical balance PCE-MA 200TS
10 x Sample pan
1 x Sample pan holder
1 x Sample pan handle
1 x Power cable

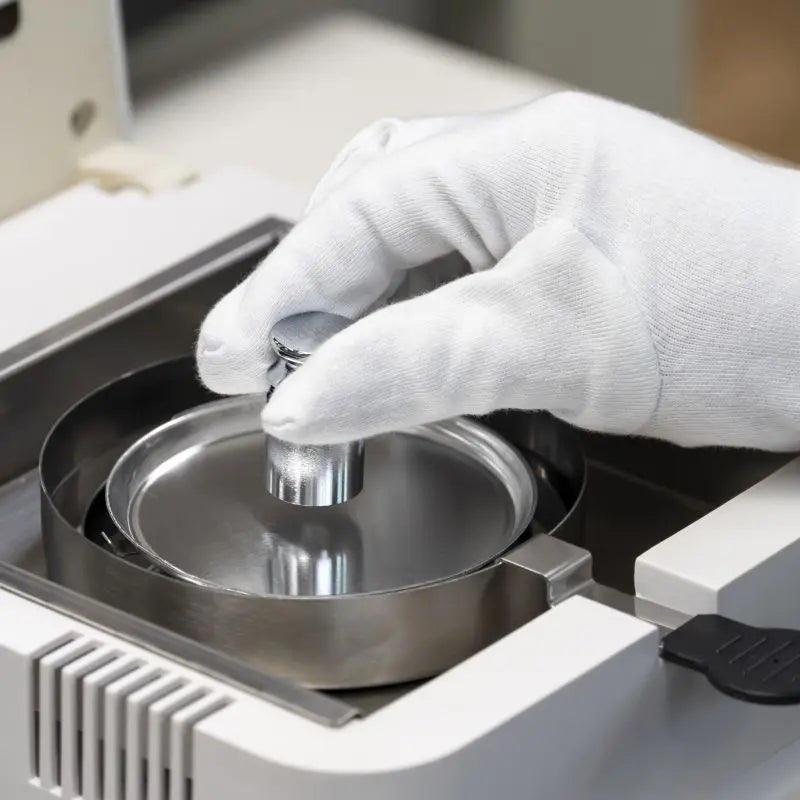

1 x 100 g Calibration weight
1 x User manual
| Κωδικός | Διαθεσιμότητα | Τιμή χωρίς ΦΠΑ | Διακρίβωση | Καλάθι |
|---|---|---|---|---|
| PCE-MA 200TS |
5-8 εργάσιμες
Αποθήκη PCE Instruments: 20 διαθέσιμα.
Εκτιμώμενη παράδοση 5–8 εργάσιμες.Λεπτομέρειες
Αποθήκη PCE Instruments: 20 διαθέσιμα.
Εκτιμώμενη παράδοση 5–8 εργάσιμες.
|
€784,00
|
