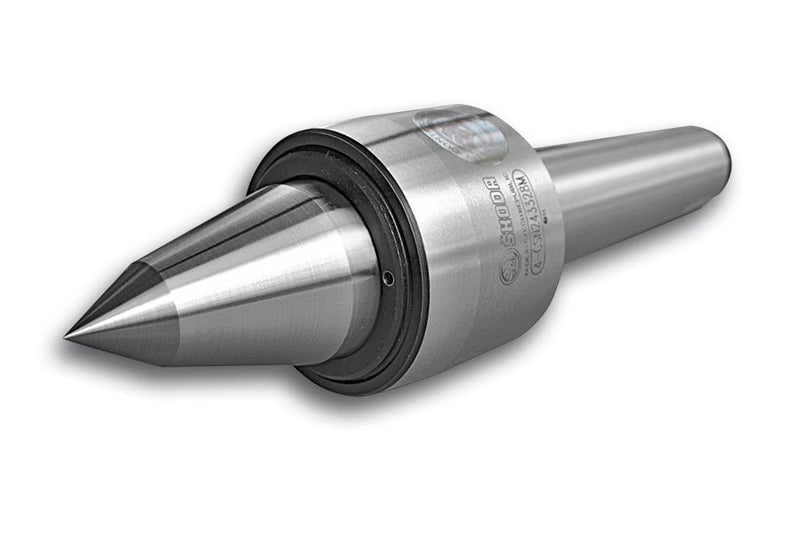

| 243328 Live centre – extended point | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Mk | ∅D | ∅d | L | l1 | l2 | n | Q | m | w |
| 2 | 36 | 20 | 128.5 | 24 | 41 | 6000 | 270 | 0.36 | 0.01 |
| 3 | 47 | 28 | 167 | 34 | 53 | 5000 | 320 | 0.84 | |
| 4 | 55 | 35 | 207.5 | 49 | 56.5 | 4000 | 1000 | 1.45 | |
| 5 | 69.5 | 45 | 259 | 66 | 63 | 3500 | 1600 | 3.2 | |
| 6 | 89 | 60 | 341 | 82 | 79 | 2500 | 3200 | 7.75 | |
Legend:
- Mk – Morse cone
- ∅D – diameter head of centre [mm]
- ∅d – diameter tip of centre [mm]
- L – total length of centre [mm]
- l1 – length tip of centre [mm]
- l2 – length head of centre [mm]
- n – max. speed [1/min]
- Q – max. weight of work-piece [kg]
- m – weight of dead or live center [kg]
- w – max. radial run-out [mm]
