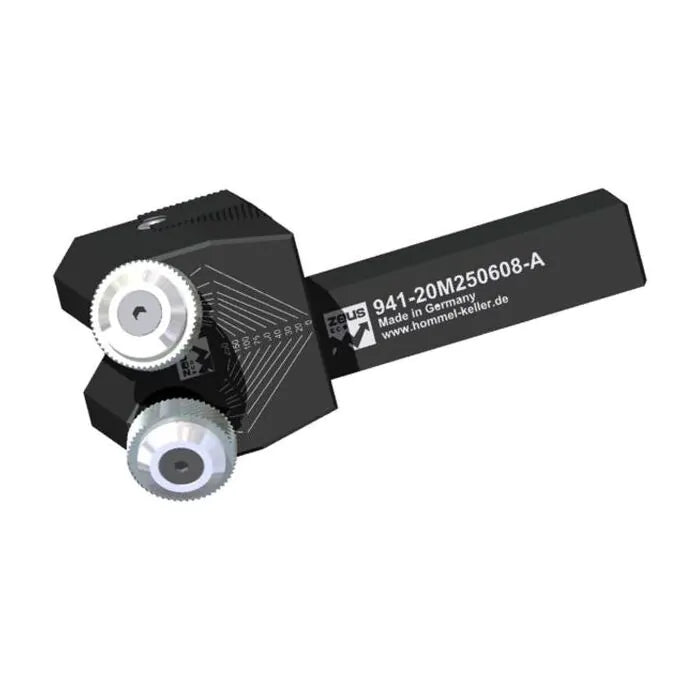

Μανέλα Τόρνου Ροζετας Κανελάζ

Δεν περιλαμβάνει ροδάκια

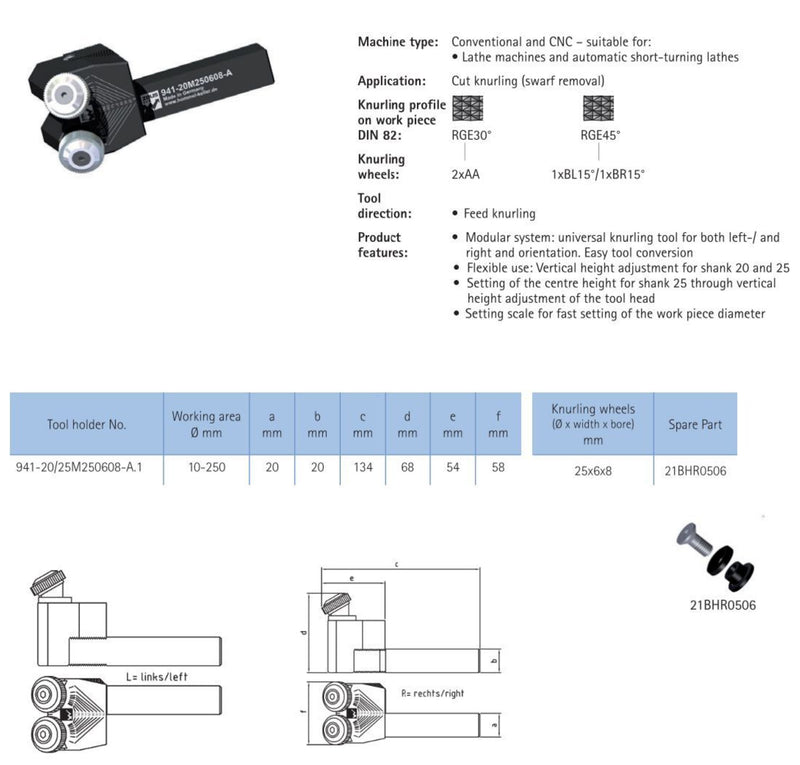

Profiles: RGE30° and RGE45°

For use with conventional and CNC lathes.
Range: 10-250 mm, Knurling device length: 134 mm Knurling device
shaft: 20 x 20 mm
- Modular construction, which means that the device
can be used on both the left and right side.
- Flexible height adjustment allowing
holders to be used for shaft sizes 20mm
and 25mm.
- A setting division for workpiece diameter.
- Setting of workpiece diameter by
adjusting screw with synchronous drive.
Exclusive rolls with dimensions: 25 x 6 x 8 mm. Delivery without knurled rollers.
