PCE-DC3 - Aμπεροτσιμπίδα 2A - 1mΑ
από Pce
| Κωδικός | Τιμή ** | Στοκ | |
|---|---|---|---|
| PCE-DC3 | €133,00 | 1 διαθέσιμo |
Τιμές χωρίς ΦΠΑ 24%
| AC current (50 / 60 Hz) |
Range / Resolution / Accuracy 2 A / 1 mA / ± 2.8 % + 10 dgt 80 A / 100 mA / ± 3.0 % + 8 dgt |
| DC current | Range / Resolution / Accuracy 2 A / 1 mA / ± 3.0 % + 10 dgt 80 A / 100 mA / ± 3.0 % + 8 dgt |
| AC overload protection (non-contact) |
100 VAC up to 600 VAC 50 / 60 Hz |
| Flashlight illumination | White LED |
| Conductor diameter | 18 mm / 0.7 in maximum |
| Display | 3 2/3 digit LCD display with backlighting |
| Power | 2 - 1.5V AAA batteries |
| Casing | PVC |
| Dimensions | 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in |
| Weight | 175 g / 6.1 oz |
| Standards | EN61010-1; CAT II / 600V EN61010-2-032; CAT III / 300V |
λειτουργίες

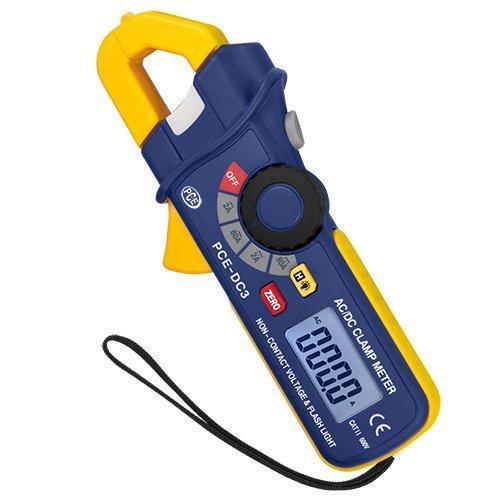

PCE-DC3 Clamp Meter
Measures AC/DC electrical current up to 80 amps
Measures AC/DC electrical current up to 80 amps
PCE-DC3 is a user-friendly digital clamp meter used to measure AC/DC electrical currents with high accuracy. This electrical current detector features a thoughtfully integrated built-in flashlight to illuminate dark spaces. This clamp meter should be part of every electrician's toolbox. The PCE-DC3 current clamp meter comes manufacturer calibrated. Optional ISO calibration is available as an accessory for an additional fee.
- 4-digit LCD display with backlight
- AC/DC current measurement up to 80 amps
- Save function
- DCA zero rest function
- Current tester
- Integrated flashlight
- Automatic range selection
- Automatic disconnect
- Clamp diameter: 18 mm / 0.7"
- AC/DC current measurement up to 80 amps
- Save function
- DCA zero rest function
- Current tester
- Integrated flashlight
- Automatic range selection
- Automatic disconnect
- Clamp diameter: 18 mm / 0.7"
περιλαμβάνει
1 x PCE-DC3 clamp meter
1 x case
2 x batteries
1 x user manual
1 x case
2 x batteries
1 x user manual
