ΚΩΔ.PCE-DFG 1K X
ΚΩΔ.PCE-DFG 1K X
Δυναμόμετρο Ψηφιακό εφελκυσμού- θλίψης (Newtonmeter Push-Pull) 5...1000N
Διαθεσιμότητα & τιμή
6 κωδικοί
| Κωδικός | Εύρος (N) | Ανάγνωση (N) | Εύρος (Kg) | Διαθεσιμότητα | χωρίς ΦΠΑ | με ΦΠΑ | Διακρίβωση | Καλάθι |
|---|---|---|---|---|---|---|---|---|
| PCE-DFG 5 X | 5 | 0.001 | 0.5 | Με παραγγελία |
€935,00
|
€1.159,40
|
||
| PCE-DFG 10 X | 10 | 0.005 | 1 | 1 τμχ στοκ |
€934,00
€654,00
|
€810,96
|
||
| PCE-DFG 20 X | 20 | 0.01 | 2 | Με παραγγελία |
€935,00
|
€1.159,40
|
||
| PCE-DFG 200 X | 200 | 0.1 | 20 |
€935,00
|
€1.159,40
|
|||
| PCE-DFG 500 X | 500 | 0.1 | 50 |
€915,00
|
€1.134,60
|
|||
| PCE-DFG 1000 X | 1000 | 0.5 | 100 |
€940,00
|
€1.165,60
|
Description
The dynamometer can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The device has an internal measuring cell and can measure forces up to 1000 N. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell with these threads.

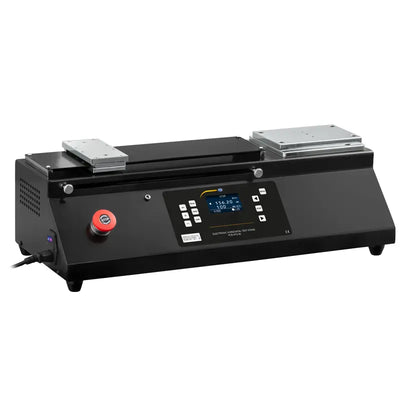

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The dynamometer has a USB-C interface that can be used to read the measurement data into the PC software. The dynamometer is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.
Highlights
Specification
| Force | |
| Measuring range | 0 ... 1000 N |
| Resolution | 0.5 N |
| Accuracy | ± 0.05 % F.S. |
| General technical data | |
| Units | kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm |
| Display type | LCD with illumination |
| Display size | 2.8 inch |
| Adjustable measurement rate | 1 ... 7200 Hz |
| Memory medium | Internal memory |
| Storage capacity | 32 GB |
| Memory interval of | 1 Hz |
| Memory interval up to | 7200 Hz |
| Operating time | 13 h |
| Automatic switch-off adjustable | 1 ... 15 min. |
| Automatic switch-off can be deactivated | Yes |
| Alarm | Optical, acoustic |
| Alarm modes | Inside, Outside, Crack, Switch off |
| Menu language | German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Weight | 255 g |
| Dimensions (L x W x H) | 165 x 85 x 32 mm |
| Operating conditions | -20 ... 65 °C , 10 ... 95 % r.H |
| Storage conditions | -20 ... 65 °C , 10 ... 65 % r.H |
Delivery Scope
