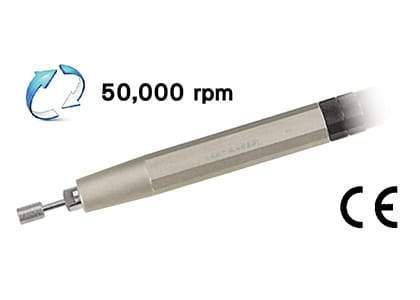

UG-400 Economic Type
- Reliable quality and competitive price.
- Fixed type collet chuck：Ø3.0mm is standard, the tool with Ø2.34 and Ø3.175mm collet are optional.
To upgrade performance and service life

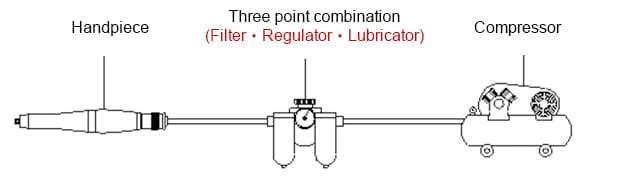

In order to maintain the best state of pneumatic tools and extend their life, the need arises to connect three points in combination so as to achieve the purpose of filtering water vapor, controlling the intake air pressure and lubrication.
- Before using pneumatic tools, be sure to confirm if there is enough oil in the oiler of the three point combination.
- Set the intake air pressure of three point combination to be 90 psi (6.2 kg / cm2) as the most suitable condition of use.
- Before using, please check if the water filter bottle of three point combination is full. If full, please discharge the water first.
- Adjust the oil intake quantity of three point combination. We recommend about 2CC every minute (if used often).
- During the holidays or when the pneumatic tools are not used for a long time, when you first turn them on, please raise the oil intake quantity of the three point combination to reach 4 CC per minute. In addition, when switching on pneumatic tools, it is better to keep them idle at low speed for 20-30 seconds, so that oil lubricates each part, and then adjust to normal speed.
- Lubricant oil choice: Do not use thick lubricant oil. It is recommended to use circulation oil R32.
| Κωδικός | Στροφές RPM | dimensions mm | Τσιμπίδια mm | Διαθεσιμότητα | Τιμή χωρίς ΦΠΑ | Καλάθι |
|---|---|---|---|---|---|---|
| UG-400 | 50.000 | Ø17 x 159 | Ø3.0 | Αναμένεται |
€105,00
|
