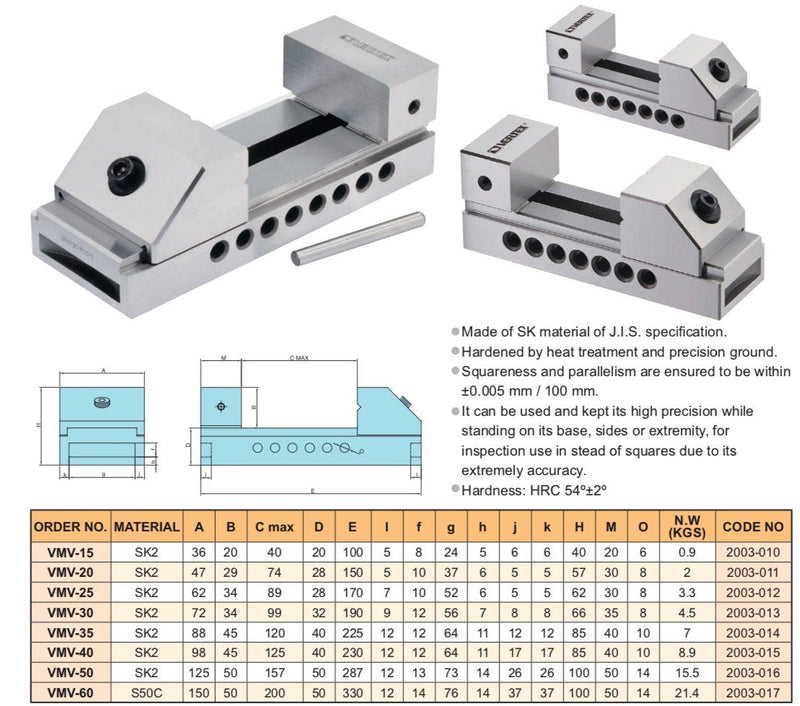

VMV - Mέγγενη Φρέζας Ακριβείας
από Vertex
| Κωδικός | Διαστάσεις | Άνοιγμα | Σιαγώνες | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| EVB-10 | 65mm | 0-20 mm | 25mm | €42,20 | 2 διαθέσιμα | ||
| VMV-15 | 100 mm | 0-40 mm | 36mm | €99,00 | 3 διαθέσιμα | ||
| VMV-20 | 150mm | 0-74 mm | 47mm | €118,00 | 5 διαθέσιμα | ||
| VMV-25 | 170 mm | 0-89 mm | 72mm | €124,00 | 3 διαθέσιμα | ||
| VMV-30 | 190mm | 0-100 mm | 72mm | €134,00 | 6 διαθέσιμα | ||
| VMV-35 | 225mm | 0-120 mm | 88mm | €274,00 | 2 διαθέσιμα | ||
| VMV-40 | 230 mm | 0-125 mm | 98mm | €286,00 | 3 διαθέσιμα | ||
| VMV-50 | 287mm | 0-157 mm | 125mm | €471,00 | 1 διαθέσιμo | ||
| VMV-60 | 330mm | 0-200 mm | 150mm | €649,00 | 1 διαθέσιμo | ||
Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%
- Made of SK material of J.I.S specification
- Hardened by heat treatment and precision ground.
- Squareness and parallelism are ensured to be within ±0.005 mm / 100 mm
- It can be used and kept its high precision while standing on its base, sides or extremity, for inspection use instead of squares due to its extreme accuracy.
- Hardness: HRC 54
