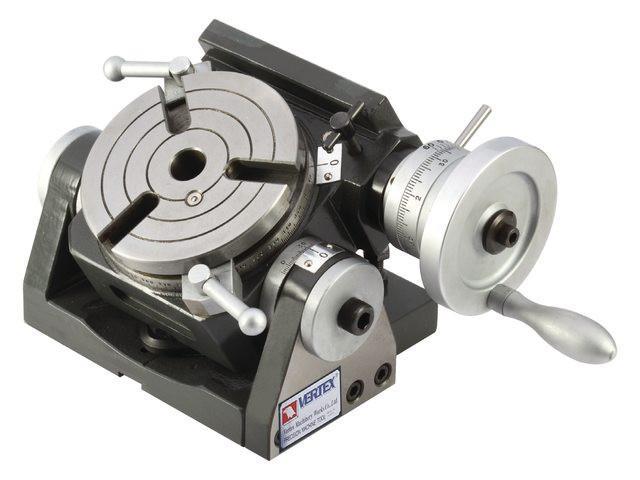

VU-150 - Περιστρεφόμενο Τραπέζι - Διαιρέτης
από Vertex
| Κωδικός | Διάμετρος τραπεζιού | Τιμή ** | Στοκ | ||
|---|---|---|---|---|---|
| VU-100 | Ø 100 mm | €645,00 | Με παραγγελία | ||
| VU-150 | Ø 150 mm | €738,00 | 1 διαθέσιμo | ||
| VU-200 | Ø 200 mm | €891,00 | 1 διαθέσιμo | ||
| VU-300 | Ø 300 mm | €2.094,00 | Με παραγγελία | ||
Τιμές χωρίς ΦΠΑ 24%
- Tilting range 0°-90° degrees from horizontal to vertical postion, It is high rigidity•
- Minimum Set-up time: It has two screws to lock setting. Low profile body for bigger capability.
- Worm is hardened and ground. The ratio is 90:1. The work table is graduated a full 360° so that of the handle moves the table through 4°. Micro collar is graduated in • steps of 2’ min.
- The tailstock & Dividing plates are optional. The sizes • is same as the rotary table, please see page A2.
- For arc or index cutting at milling machine, Grinding • machine or drill Machine.....
