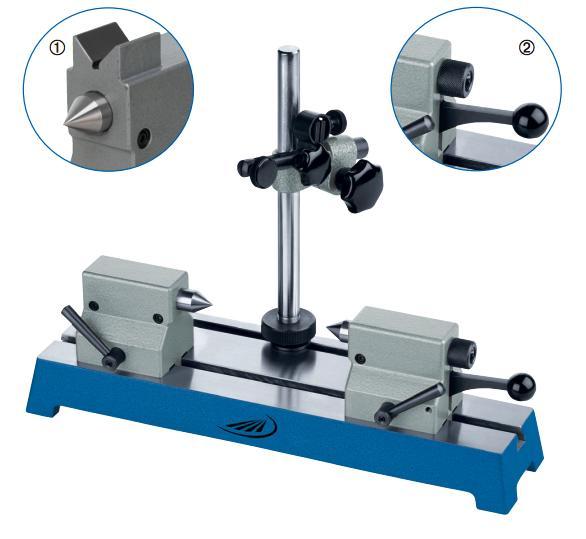

Τραπέζι Ελέγχου Αξόνων, Στροφάλων με Πόντες
Κωδικός |
Ύψος Κέντρων |
Πόντα - πόντα |
Βάση |
Τιμή |
Στοκ |
|
0780101 |
50mm |
200 mm |
350 x 110 mm |
€839,00
|
Κ.Π. Ρωτήστε *
|
|
0780102 |
50mm |
350 mm |
500 x 110 mm |
€1.066,00
|
Κ.Π. Ρωτήστε *
|
|
0780104 |
75 mm |
200 mm |
350 x 110 mm |
€960,00
|
Κ.Π. Ρωτήστε *
|
|
0780105 |
75 mm |
350 mm |
500 x 110 mm |
€1.093,00
|
Κ.Π. Ρωτήστε *
|
|
* Κ.Π. : Κατόπιν Παραγγελίας

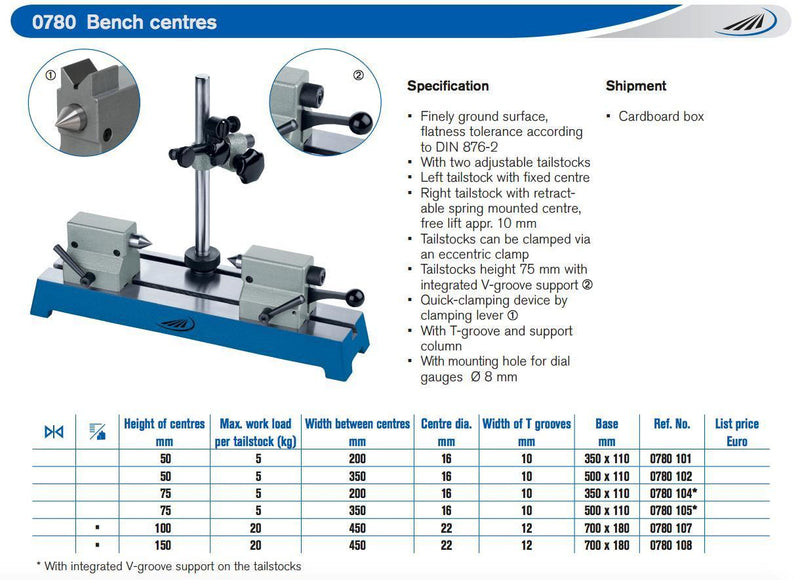

Model |
- Finely ground surface, flatness tolerance according to DIN 876-2
- With two adjustable tailstocks
- Left tailstock with fixed centre
- Right tailstock with retractable spring mounted centre, free lift appr. 10 mm
- Tailstocks can be clamped via an eccentric clamp
- Tailstock height 75 mm with integrated V-groove support
- Quick-clamping device by clamping lever
- With T-groove and support column
- With mounting hole for dial gauges Ø 8 mm
|
Application |
- for quick and easy checking of the concentrity accuracy on shafts with bores of the centre
|
