| Temperature | |
| Measuring range | -30 ... +60 °C / -22 ... +140 °F |
| Reading | 0.1 °C / °F |
| Accuracy | ±1.0 °C / 1.8 °F at -30 ... 0 °C / -22 ... +32 °F |
| ±0.5 °C / 0.9 °F at 0 ... 60 °C / 32 ... +140 °F | |
| Relative humidity | |
| Measuring range | 0 ... 100 % r. F. |
| Reading | 0.1 % r. F. |
| Accuracy | ±5.0 % r. F. at 0 ... 20 % r. F. and 80 ... 100 % r. F. |
| ±3.5 % r. F. at 20 ... 40 % r. F. and 60 ... 80 % r. F. | |
| ±3.0 % r. F. at 40 ... 60 % r. F. | |
| Absolute air pressure | |
| Measuring range | 700 ... 1100 hpa |
| 525.0 ... 825.0 mmHg | |
| 20.67 ... 32.48 inHg | |
| Reading | 1 hpa |
| 0.1 mmHg | |
| 0.01 inHg | |
| Accuracy | ±3 hpa |
| ±2.5 mmHg | |
| ±0.1 inHg | |
| Further specifications | |
| Memory | 13340 measuring points |
| Data storage format | .pdf, .csv |
| Storage interval | 1 minute ... 24 hours |

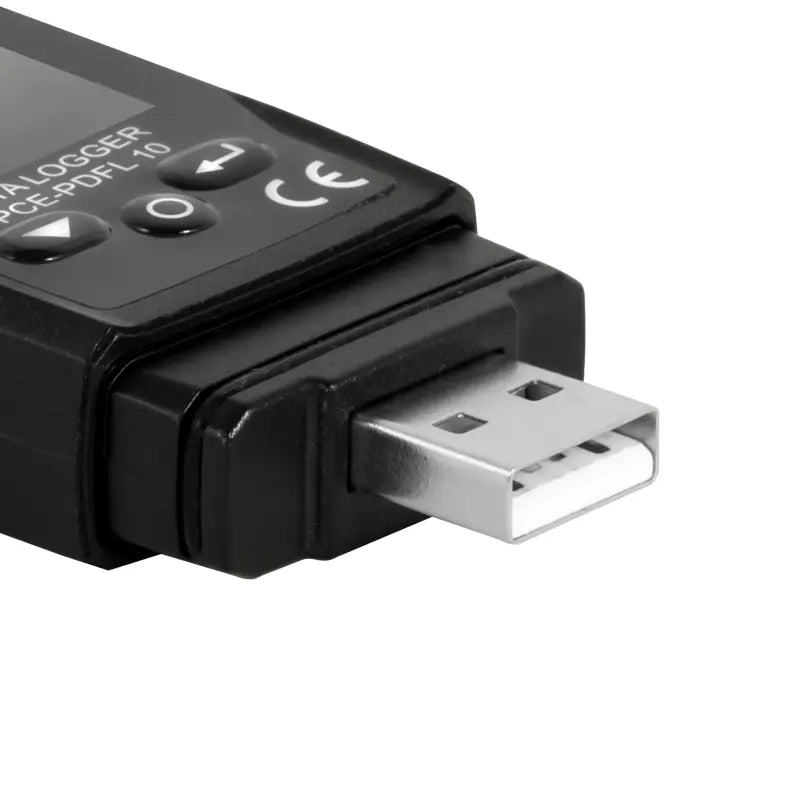

| Exit | USB-A |
| Power supply (USB-A) | 5 V DC, 0.1 A |

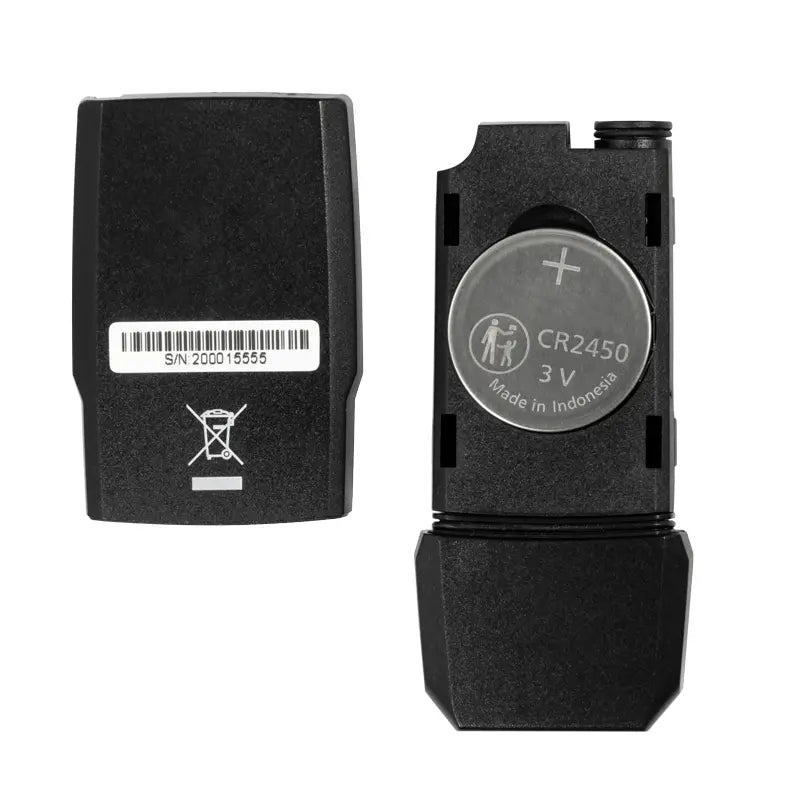

| Power supply (battery) | Battery 3 V (CR2450) |
| Battery life | about 3 years |

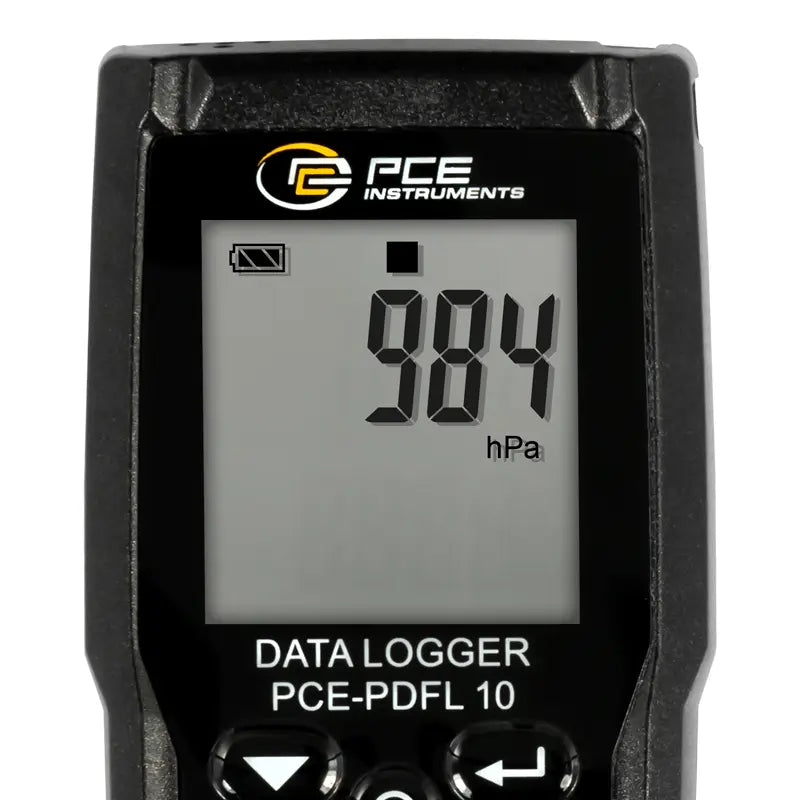

| Display | LC display 1/4". |
| Environmental conditions | -30 ... 60 °C, <95 % r. F., no condensation |
| Dimensions | 75 x 35 x 15 mm |
| Weight | 33 g |
Thermometer with absolute air pressure sensor / Measuring range -30 ... +60 °C / Adirect data export in PDF and CSV format / Software / LC display / USB-A / Mdata memory 13340 measurements

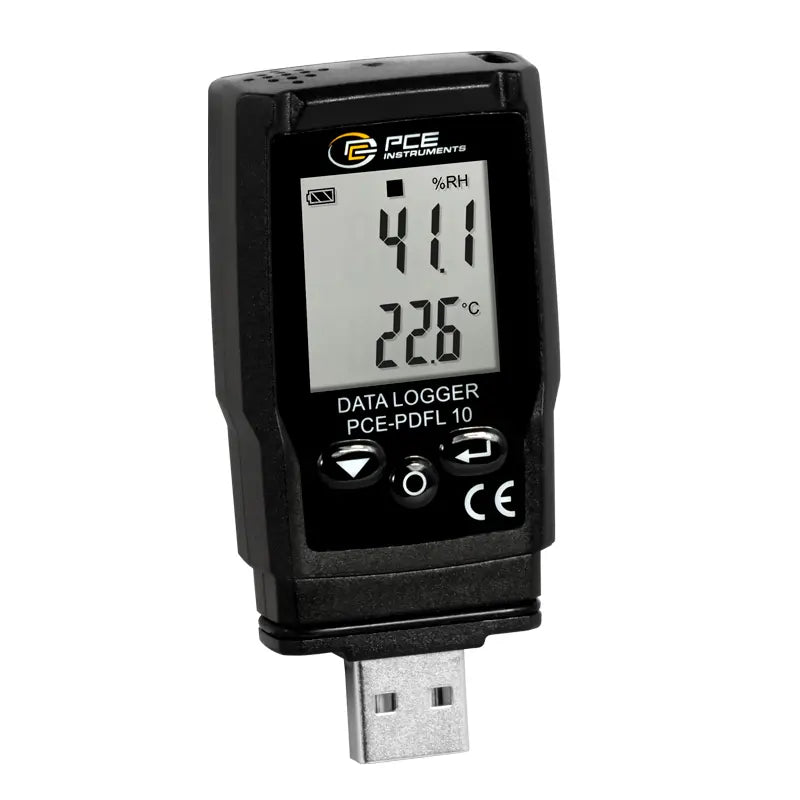

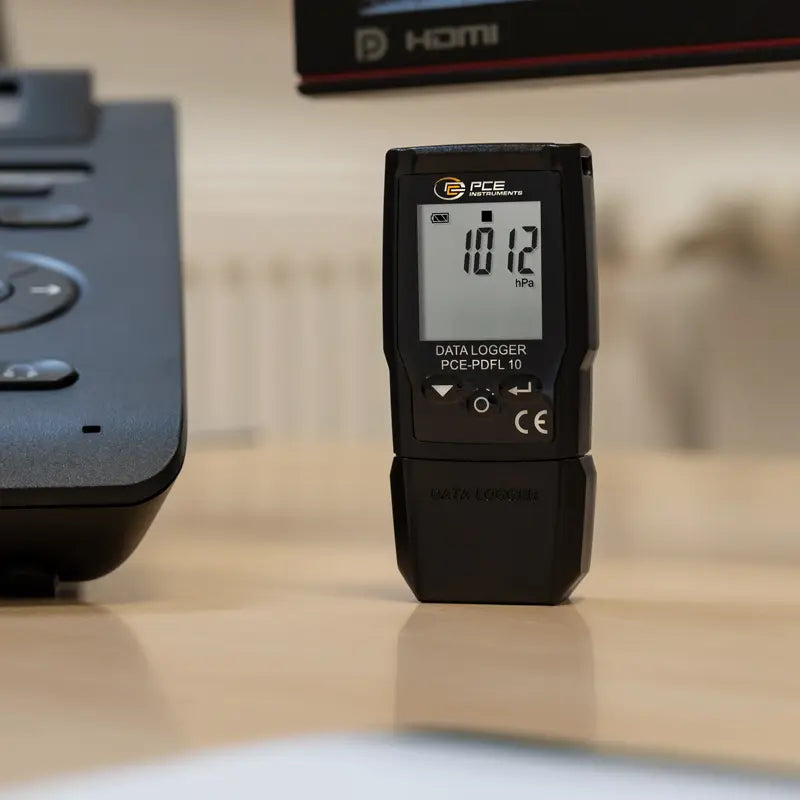

The PCE-PDFL 10 thermometer with a measuring range of -30 ... +60 °C can be used for measurements in cold environments. In addition to measuring temperature and humidity, the thermometer can also measure absolute atmospheric pressure with a measuring range of 700 ... 1100 hpa. Due to the different sensors, the thermometer already covers a wide range of measurement tasks. Typical applications of the thermometer are, for example, monitoring refrigeration systems, greenhouses, or also monitoring a workspace.

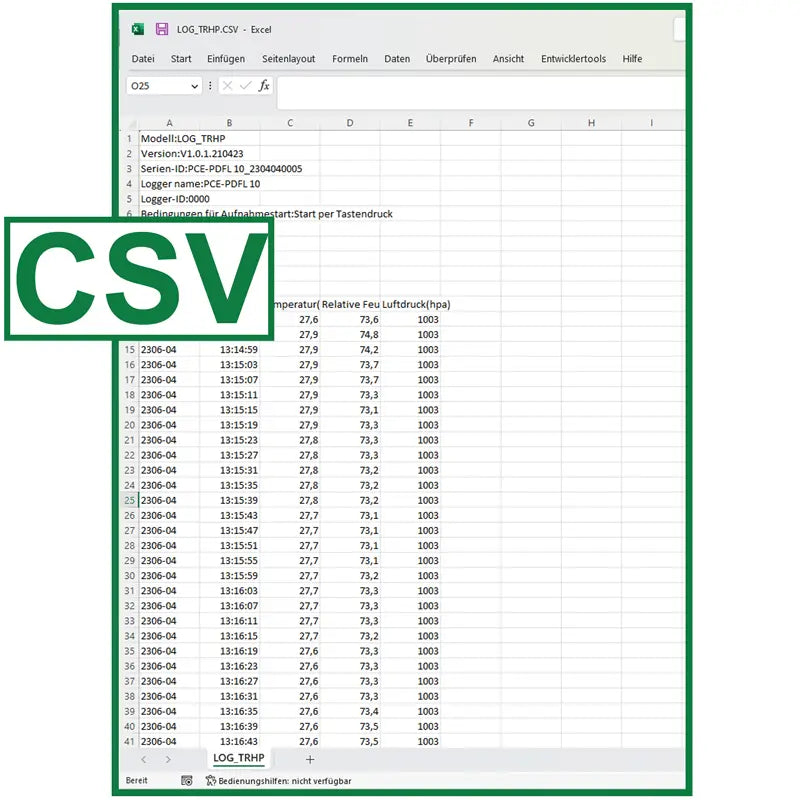

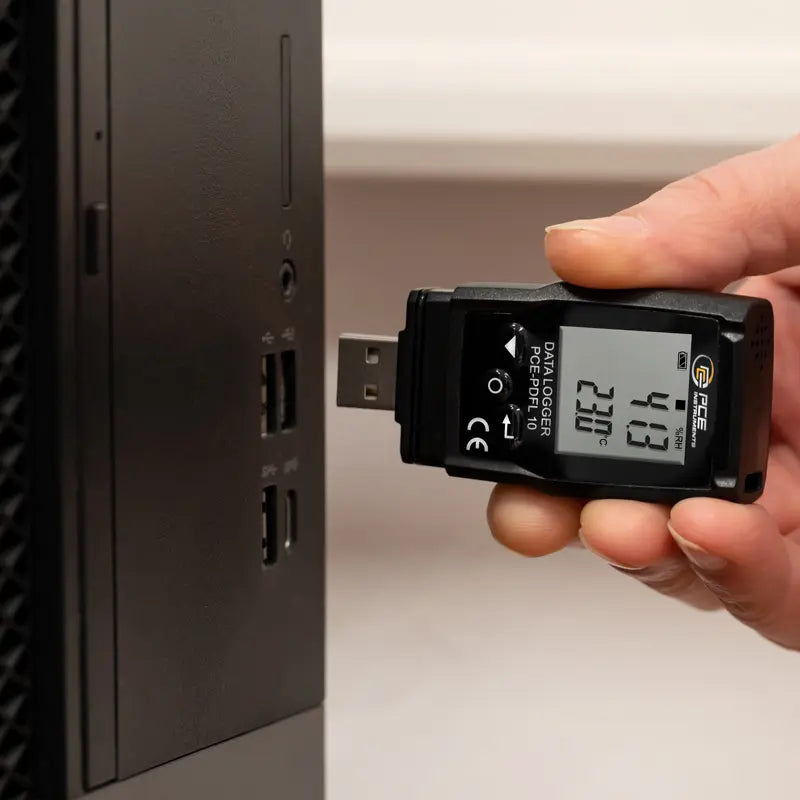

The measured values are stored in the internal memory of the thermometer, which has 13340 memory slots. Once a measurement is completed, the stored data can be read from the thermometer regardless of the operating system. When saving data, the values are stored in pdf and csv format.

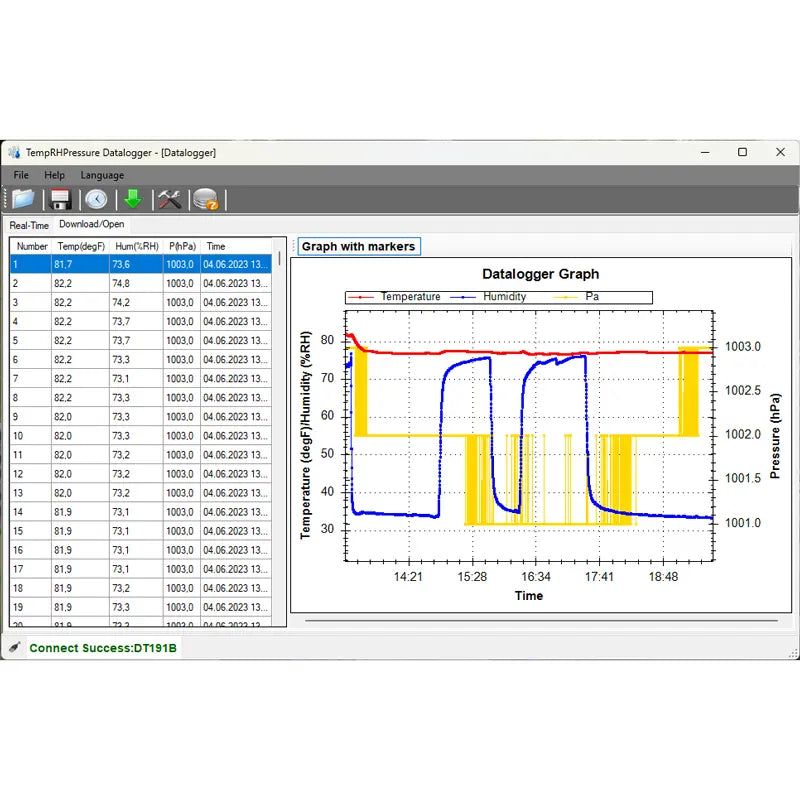

Thanks to the provided software, the user can make settings on the thermometer before measurement such as the storage interval can be set between 1 minute and 24 hours, the limits of the optical alarm and the start/stop pulses. Additionally, through the software, the measured values are displayed graphically.
- Measurement of θtemperature, relative humidity, air pressure
- Software for evaluation of measurement data
- Measuring range: -30 ... 60 °C
- Data memory with 13340 measurement points

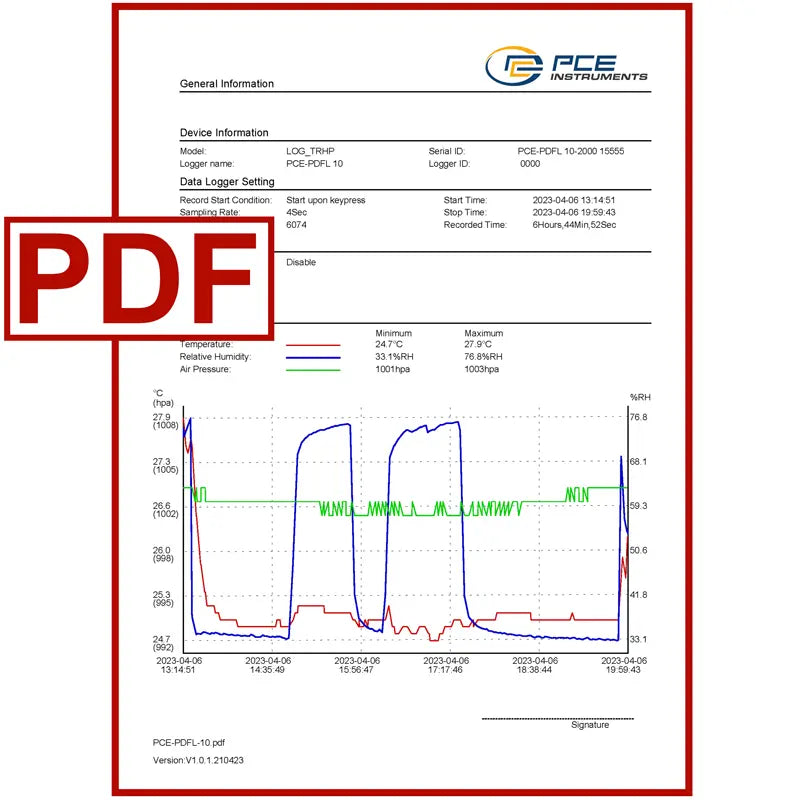

- Direct data export to PDF and CSV

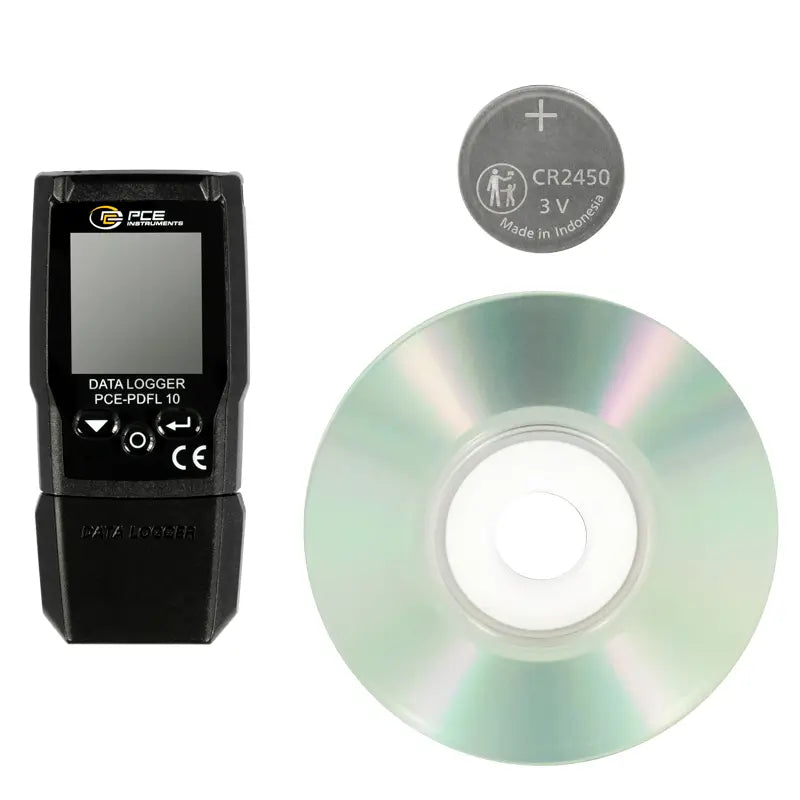

Package contents
1 x PCE-PDFL 10 Thermometer
1 x 3 V (CR2450) Battery
1 x software CD
1 x User manual
| Code | Thermometer Accuracy | Hygrometer accuracy | Precision Pressure Gauge | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| PCE-PDFL 10 | 0.1 °C | 5% | 0.1mmHg |
5-8 business days
Αποθήκη PCE Instruments: 65 available.
Estimated delivery 5–8 business days.Details
Αποθήκη PCE Instruments: 65 available.
Estimated delivery 5–8 business days.
|
€119,00
|
