Radius Gauges

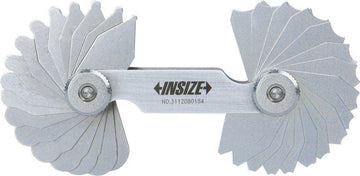

Specifications Type: Radius gage for internal and external radii Material: Medium carbon steel Codes/variants: 4801-17, 4801-16, 4801-15 De...

For convex and concave surfaces Locking nut Made of stainless steel

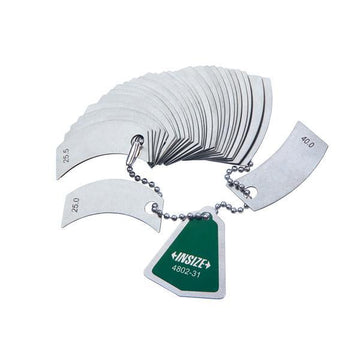

  Specifications: Made of stainless steel 4802-31: Range: 25-40mm Included leaf radii (mm): 25, 25.5, 26, 26.5, 27, 27.5, 28, 28.5, 29, 29.5, 30...

Range: 0.5 - 13 mm 26 leaves Each piece has 3 concave and 2 convex measuring surfaces Provided with handle Made of medium carbon steel

External radius range: 5-910 mm / 0.2-35.83' Internal angle range: 7-910 mm / 0.3-35.83' Accuracy: ±0.01R, where R is the angle to be measured Rea...

Range (radius): 4-53mm / 0.16-2.09' Reading: 0.01mm / 0.0005' Accuracy: ±0.02mm Measurement of external arc radius, the arc angle of the measured ...

Made of stainless steel For determining the radius size  With wooden case

  Product description This gauge will take outside radius measurements of cylindrical objects, the curvature of body panels, railing, etc., anyth...

  Product description This gauge is ideal for taking radius measurements from the inside curvature of a boat, aircraft, archway, railing, etc., a...

Technical Specifications Measurement of radius of internal or external arcs Reading: 0.01 mm / 0.001" Buttons: on/off, hold, mm/inch, s (jaw ...

For measuring diameter variation, cavity, convexity, and other parameters Continuous measurement in the axial direction Includes 4 wheels

Measurement comparison with digital/dial readings. You typically need standard workpieces to zero it. For measuring diameter/convexity/concavity/t...

Specifications Manufacturer/Series: INSIZE Large Range Digital Radius Gauges Model codes (with digital indicator): 2512-100, 2512-200, 2512-30...
